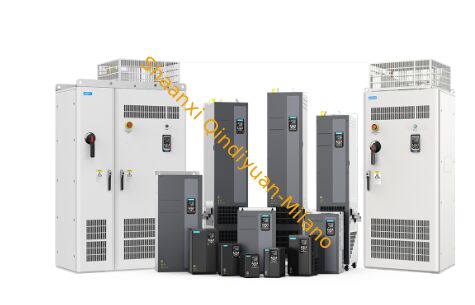

INOVANCE MD520-4T22B Compact Vector Drive High Torque Inverter

1
MOQ
670-770$
Price
INOVANCE MD520-4T22B Compact Vector Drive High Torque Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Weight: Varies By Model
Torque Response: <10ms(SVC)
Power Range: 0.5 KW To 500 KW
Starting Torque: 150% At 0.5 Hz
Highlight:

INOVANCE MD520 series VFD

,

three-phase 380V frequency converter

,

high-performance vector type VFD
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Certification: CO
Model Number: MD520-4T22B
Document: MD520_Br_EN_Singles_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 88PCS
Product Description
Model:INOVANCE MD520-4T22B
📦 Product Overview

The INOVANCE MD520-4T22B is the most powerful model in the MD520 series, delivering 22 kW (30 HP) for the most demanding three-phase AC motor control applications. Combining advanced sensorless vector control (SVC) with a built-in braking unit and PID process control, it is purpose-built for large industrial pumps, high-capacity fans, heavy-duty conveyors, compressors, and high-power OEM machinery. With exceptional torque performance, robust protection, and seamless automation integration, the MD520-4T22B delivers uncompromising industrial drive performance at an outstanding value.

✨ Product Advantages
  • Compact Vector Drive — Advanced SVC technology with 150% starting torque at 0.5 Hz and ±0.5% speed accuracy for precision control under the most demanding loads
  • High Torque Inverter — Exceptional low-speed torque output ensures smooth, reliable startup of the heaviest machinery and highest-inertia industrial loads
  • Built-in PID Process Control — Integrated closed-loop controller enables precise flow, pressure, level, and temperature regulation without external hardware
  • Built-in Braking Chopper — Integrated dynamic braking unit supports fast, controlled deceleration and precise stopping for rapid-cycle industrial processes
  • Industrial-grade Protection — Comprehensive multi-layer safeguards including overcurrent, overvoltage, undervoltage, overload, phase-loss, short-circuit, and overtemperature protection
  • Full Automation Connectivity — Rich multi-function digital/analog I/O plus onboard RS485 Modbus RTU for seamless PLC, HMI, and SCADA system integration
  • Energy-efficient Design — Built-in energy optimization automatically reduces power consumption during partial-load operation for significant long-term savings
  • Extreme-duty Construction — Conformal-coated PCB, independent air duct cooling, detachable multi-language keypad, and -10°C to 50°C operating range
📐 Technical Parameters
Model MD520-4T22B
Rated Power 22 kW / 30 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 45 A
Overload Capacity 150% for 60s / 180% for 3s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling, independent air duct
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 240 × 330 × 210 mm
Weight Approx. 9 kg
Certifications ✔ CE ✔ RoHS
