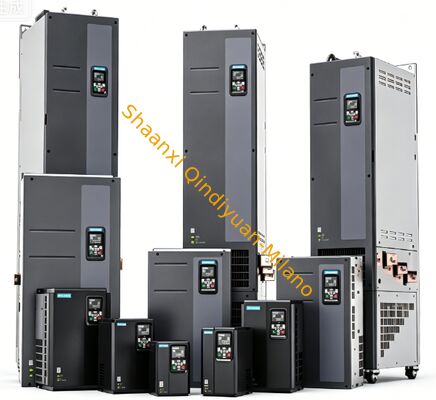

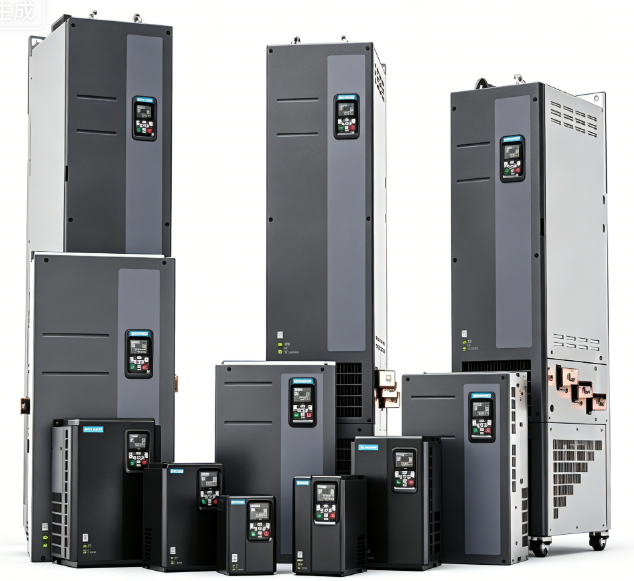

INOVANCE MD520-4T15B Compact Vector Drive High Torque Inverter

1
MOQ
660-800$
Price
INOVANCE MD520-4T15B Compact Vector Drive High Torque Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Rated Input Voltage: AC 3PH 6kV, AC 3PH 10kV
Communication Method: RS485, Modbus
Soft Stop Time: 0-60 Seconds Adjustable
Voltage: Single-phase 220V
Highlight:

INOVANCE MD520 series frequency converter

,

three-phase 380V VFD drive

,

high-performance vector type VFD
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Certification: CO
Model Number: MD520-4T15B
Document: MD520_Br_EN_Singles_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 90PCS
Product Description
Model:INOVANCE MD520-4T15B
📦 Product Overview

The INOVANCE MD520-4T15B is a high-power compact variable frequency drive delivering 15 kW (20 HP) for demanding three-phase AC motor control in heavy-duty industrial applications. As the highest-rated model in the MD520 series, it combines advanced sensorless vector control (SVC) with a built-in braking unit and PID process control. Designed for large pumps, industrial fans, heavy conveyors, compressors, and high-power OEM machinery, the MD520-4T15B delivers exceptional torque performance, energy efficiency, and system connectivity in a space-optimized package at an outstanding price-performance ratio.

✨ Product Advantages
  • Compact Vector Drive — Advanced SVC with 150% starting torque at 0.5 Hz and ±0.5% speed accuracy ensures reliable performance for the most demanding loads
  • High Torque Inverter — Exceptional low-speed torque output guarantees smooth, stall-free startup of heavy-duty machinery and high-inertia loads
  • Built-in PID Process Control — Integrated closed-loop controller for flow, pressure, level, and temperature regulation eliminates external controller costs
  • Built-in Braking Chopper — Integrated dynamic braking unit enables fast deceleration and precise stopping for rapid-cycle applications without external hardware
  • Industrial-grade Protection — Multi-layer safeguards including overcurrent, overvoltage, undervoltage, overload, phase-loss, short-circuit, and overtemperature protection
  • Seamless Network Integration — Multi-function digital/analog I/O plus RS485 Modbus RTU for effortless PLC, HMI, and SCADA connectivity
  • Energy-efficient Operation — Auto energy optimization reduces power consumption during partial-load conditions, lowering lifetime operating costs
  • Rugged & Reliable Design — Conformal-coated PCB, independent air duct cooling, and detachable multi-language keypad for demanding industrial environments
📐 Technical Parameters
Model MD520-4T15B
Rated Power 15 kW / 20 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 32 A
Overload Capacity 150% for 60s / 180% for 3s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling, independent air duct
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 200 × 290 × 190 mm
Weight Approx. 6.5 kg
Certifications ✔ CE ✔ RoHS
