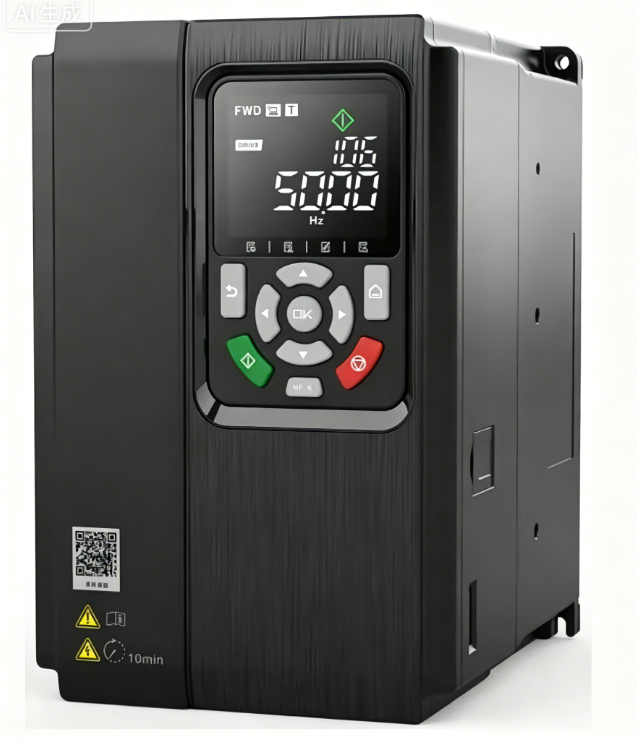

INOVANCE MD520-4T7.5B Compact Vector Drive High Torque Inverter

1
MOQ
660-800$
Price
INOVANCE MD520-4T7.5B Compact Vector Drive High Torque Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Output Frequency: 0-400 Hz
Communicationprotocol: Modbus, Profibus, Ethernet/IP
Output Capacity Range: 0~5600kVA, 0~10000kVA
Actual Price: Based On Offer
Highlight:

INOVANCE MD520 frequency converter 7.5KW

,

three-phase 380V VFD drive

,

high-performance vector type VFD
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Certification: CO
Model Number: MD520-4T7.5B
Document: MD520_Br_EN_Singles_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 99PCS
Product Description
Model:INOVANCE MD520-4T7.5B
📦 Product Overview

The INOVANCE MD520-4T7.5B is the flagship high-power model in the MD520 series, delivering 7.5 kW (10 HP) for demanding three-phase AC motor control. Combining advanced sensorless vector control (SVC) with a built-in braking unit and PID process control in a compact form factor, it is engineered for heavy-duty OEM machinery, industrial pumps, large fans, conveyors, and general automation applications. With its exceptional torque performance and user-friendly operation, the MD520-4T7.5B delivers professional-grade drive technology at an outstanding value for cost-conscious industrial applications.

✨ Product Advantages
  • Compact Vector Drive — Full sensorless vector control with 150% starting torque at 0.5 Hz in a compact, easy-to-install form factor
  • High Torque Inverter — Exceptional low-speed torque performance ensures smooth, stall-free startup of heavy loads and high-inertia machinery
  • Built-in PID Process Control — Integrated closed-loop controller for flow, pressure, level, and temperature regulation without external PLC modules
  • Built-in Braking Unit — Integrated braking chopper supports fast deceleration and precise stopping for rapid-cycle applications without external hardware
  • Robust Industrial Protection — Comprehensive overcurrent, overvoltage, undervoltage, overload, phase-loss, and short-circuit protection ensures maximum uptime
  • Seamless Automation Integration — Multi-function digital/analog I/O terminals plus RS485 Modbus RTU for PLC, HMI, and SCADA connectivity
  • Energy Optimization — Automatic energy-saving algorithm reduces power consumption under light loads, lowering operational costs over the drive lifetime
  • Quick & Intuitive Setup — Detachable multi-language keypad with auto-tuning and guided commissioning gets systems running in minutes
📐 Technical Parameters
Model MD520-4T7.5B
Rated Power 7.5 kW / 10 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 17 A
Overload Capacity 150% for 60s / 180% for 3s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling, independent air duct
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 150 × 250 × 170 mm
Weight Approx. 4.5 kg
Certifications
✔ CE ✔ RoHS
