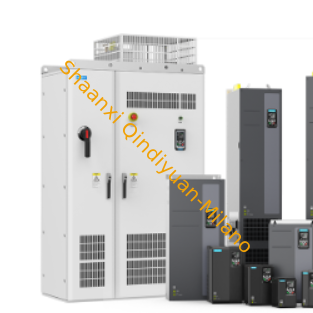

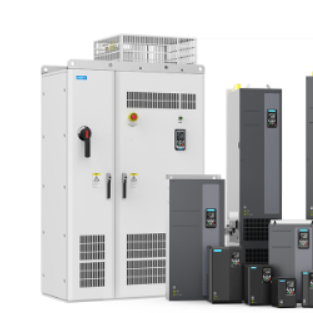

INOVANCE MD520-4T3.7B Compact Vector Drive Precision Motor Control

1
MOQ
660-780$
Price
INOVANCE MD520-4T3.7B Compact Vector Drive Precision Motor Control
Features Gallery Product Description Chat Now
Features
Specifications
Power Range: 0.5 KW To 500 KW
Igbt: Infineon,Renesas
Input Voltage: 200-480V AC
Starting Current: Reduced Starting Current (Soft Starter)
Highlight:

INOVANCE MD520 series frequency converter

,

three-phase 380V VFD drive

,

high-performance vector type VFD
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Certification: CO
Model Number: MD520-4T3.7B
Document: MD520_Br_EN_Singles_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS
Product Description
Model:INOVANCE MD520-4T3.7B
📦 Product Overview

The INOVANCE MD520-4T3.7B is a compact mid-power variable frequency drive delivering 3.7 kW (5 HP) for precision speed control of three-phase asynchronous AC motors. As part of the MD520 series, it combines sensorless vector control (SVC), a built-in braking unit, and PID process control in a space-saving design. Bridging the gap between micro and general-purpose drives, the MD520-4T3.7B is ideal for OEM machinery, pump and fan systems, conveyors, and light industrial automation applications demanding reliable performance with an excellent cost-performance ratio.

✨ Product Advantages
  • Compact Vector Drive — Sensorless vector control delivers 150% starting torque at 0.5 Hz with ±0.5% speed accuracy in a compact footprint
  • Precision Motor Control — 1:100 speed regulation range with auto-tuning ensures optimal performance across diverse pump, fan, conveyor, and machinery loads
  • Built-in PID Process Control — Integrated closed-loop controller for flow, pressure, and temperature regulation without external PLC programming
  • Built-in Braking Unit — Integrated braking chopper enables fast, controlled deceleration for rapid-stop applications without external hardware
  • Flexible I/O Configuration — Multi-function digital inputs, analog I/O, and relay outputs support diverse machine control architectures
  • RS485 Modbus Connectivity — Built-in Modbus RTU interface for seamless integration with PLCs, HMIs, and industrial automation networks
  • Comprehensive Protection — Overcurrent, overvoltage, undervoltage, overload, phase-loss, and short-circuit safeguards ensure long service life
  • User-friendly Operation — Intuitive detachable keypad with multi-language display and quick-start commissioning minimizes setup time
📐 Technical Parameters
Model MD520-4T3.7B
Rated Power 3.7 kW / 5 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 9 A
Overload Capacity 150% for 60s / 180% for 3s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 100 × 160 × 110 mm
Weight Approx. 1.5 kg
Certifications ✔ CE ✔ RoHS
