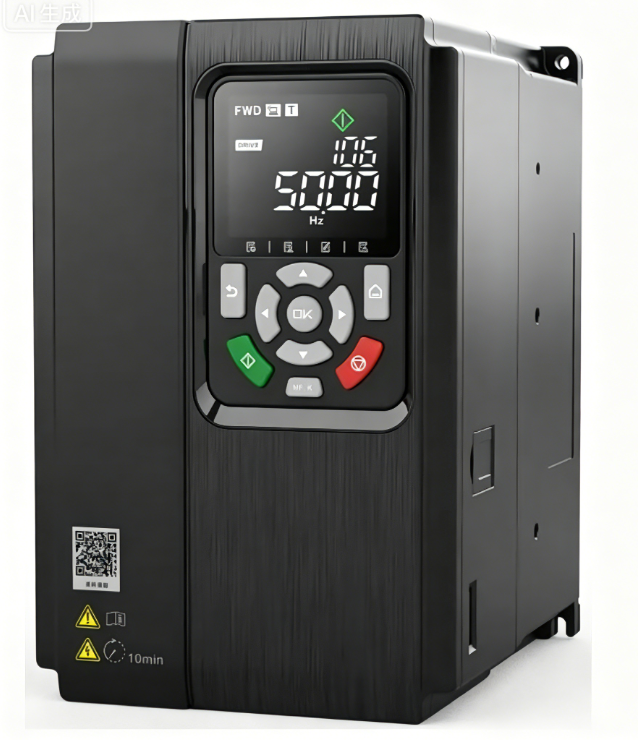

IINOVANCE MD520-4T0.7B Compact Vector Drive Precision Motor Control

1
MOQ
650-800$
Price
IINOVANCE MD520-4T0.7B Compact Vector Drive Precision Motor Control
Features Gallery Product Description Chat Now
Features
Specifications
Harmonic Distortion: < 5%
Expandability: Modular With Expansion Modules
Output Capacity Range: 0~5600kVA, 0~10000kVA
Highlight:

INOVANCE MD520 series frequency converter

,

three-phase 380V VFD drive

,

high-performance vector type VFD
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Certification: CO
Model Number: MD520-4T0.7B
Document: MD520_Br_EN_Singles_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS
Product Description
Model:INOVANCE MD520-4T0.7B
📦 Product Overview

The INOVANCE MD520-4T0.7B is an ultra-compact micro variable frequency drive delivering 0.75 kW (1 HP) for precision speed control of small three-phase asynchronous AC motors. As part of Inovance's entry-level MD520 series, it brings sensorless vector control (SVC) to space-constrained applications with a remarkably small form factor. The built-in braking unit, silent fanless operation, and plug-and-play simplicity make it the perfect choice for OEM machine builders and light industrial applications where compact size, reliability, and cost-effectiveness are essential.

✨ Product Advantages
  • Compact Vector Drive — Full sensorless vector control packed into an ultra-small footprint, enabling high-precision motor regulation in tight spaces
  • Precision Motor Control — ±0.5% steady-speed accuracy with 1:100 speed regulation range delivers consistent, reliable motor performance
  • Built-in Braking Unit — Integrated braking chopper enables fast, controlled deceleration for applications requiring rapid stops without external hardware
  • Silent Fanless Operation — Natural cooling design eliminates fan noise, making it ideal for noise-sensitive environments such as laboratories and clean rooms
  • Quick & Easy Setup — Intuitive keypad with multi-language display and auto-tuning function minimizes commissioning time and complexity
  • Flexible Control I/O — Multi-function digital inputs and analog I/O accommodate diverse small-machine control needs without expansion modules
  • Energy-saving Optimization — Automatic energy-saving mode reduces power consumption during partial-load operation, lowering lifetime operating costs
  • Reliable Protection — Overcurrent, overvoltage, overload, and short-circuit protection safeguard both drive and motor for trouble-free operation
📐 Technical Parameters
Model MD520-4T0.7B
Rated Power 0.75 kW / 1 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 2.5 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Natural cooling / Fanless design
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 80 × 150 × 100 mm
Weight Approx. 1.0 kg
Certifications ✔ CE ✔ RoHS
