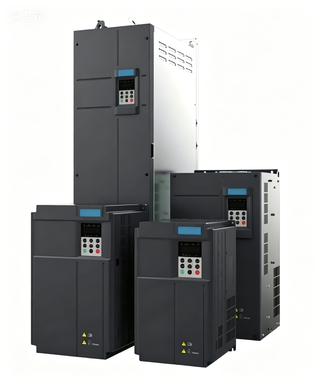

INOVANCE CS710-4T18.5GB Compact Vector Drive High Torque Inverter

1
MOQ
650-750$
Price
INOVANCE CS710-4T18.5GB Compact Vector Drive High Torque Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Torque Control: Available
Analog Input Resolution: Not Greater Than 20mV
Rated Power: 200kW（268HP）
Control Communication: RS485, Modbus
Highlight:

INOVANCE CS710 series frequency converter

,

three-phase 380V VFD drive

,

lifting application variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: CS710-4T18.5GB
Document: CS710_Br_EN_Spreads_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description

Model: CS710-4T18.5GB 18.5KW

📦 Product Overview

The INOVANCE CS710-4T18.5GB is a high-power compact variable frequency drive delivering 18.5 kW (25 HP) for precision control of three-phase asynchronous AC motors. Positioned at the upper end of the CS710 series, it combines sensorless vector control with a heavy-duty hardware platform to handle the most demanding industrial motor applications. Whether driving large centrifugal pumps, heavy-duty compressors, or high-inertia industrial machinery, the CS710-4T18.5GB delivers the torque, reliability, and energy efficiency that modern factories demand.

✨ Product Advantages
  • Compact Vector Drive — Advanced sensorless vector control (SVC) ensures exceptional speed accuracy and dynamic torque response in a space-efficient design
  • High Torque Inverter — 150% rated torque at 0.5 Hz enables smooth, stall-free startup of heavy loads and high-inertia machinery
  • Built-in PID Process Control — Integrated closed-loop regulation for pressure, flow, level, and temperature eliminates external controller costs
  • Comprehensive Protection Suite — Multi-layer safeguards including overcurrent, overvoltage, undervoltage, overload, phase-loss, short-circuit, and overtemperature protection ensure maximum uptime
  • Quick Auto-tuning — One-touch motor parameter identification reduces commissioning time and ensures optimal energy-efficient performance
  • Seamless System Integration — Multi-function digital/analog I/O plus RS485 Modbus RTU enable effortless connection to PLCs, HMIs, and SCADA networks
  • Built-in Braking Chopper — Integrated dynamic braking unit supports rapid deceleration and precise stopping, eliminating external braking hardware
  • Rugged Industrial Construction — Conformal-coated PCB, independent air duct cooling, and -10°C to 50°C operating range deliver reliable performance in harsh environments
📐 Technical Parameters
Model CS710-4T18.5GB
Rated Power 18.5 kW / 25 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 38 A
Overload Capacity 150% for 60s / 180% for 10s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling, independent air duct
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W*H*D) Approx. 220 * 310 * 200 mm
Weight Approx. 7.5 kg
Certifications ✔ CE ✔ RoHS
