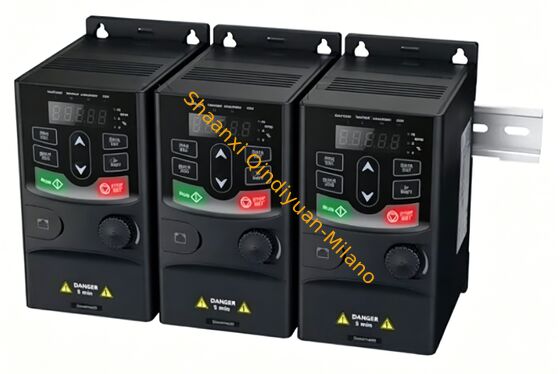

INVT GD20 series GD20-0R7G-S2 Single-Phase Motor Drive Compact General-Purpose VFD

The INVT GD20-0R7G-S2 is a 0.75kW single-phase compact frequency inverter from INVT's GD20 series, designed for cost-effective motor control in small industrial and commercial drive applications. Converting single-phase 200–240V input to three-phase output, this general-purpose drive powers small induction motors up to 0.75kW with reliable V/F and sensorless vector control. With built-in PID control, Modbus RTU communication, integrated braking chopper, and comprehensive protection functions, it is the practical drive solution for small pumps, fans, conveyors, food processing equipment, packaging machines, textile machinery, and general-purpose automation in locations served by single-phase utility power.

• Single-Phase Motor Drive — 0.75kW G-type rating with 200–240V single-phase input and three-phase output, enabling economical operation of three-phase motors from standard wall power without phase converters
• Compact General-Purpose VFD — Proven GD20 platform with reliable V/F and sensorless vector control (SVC), delivering stable speed regulation, 150% overload for 60s, and essential automation features at an economical price point
• Efficient Speed Controller — SVC mode provides 150% starting torque at 0.5Hz with 1:100 speed control range and ±0.5% speed accuracy, suitable for pumps, fans, conveyors, and general machinery speed control
• Built-in PID Process Control — Integrated PID controller with feedback input for closed-loop control of pressure, flow, and temperature; ideal for constant pressure water supply and HVAC fan speed regulation
• Space-Saving Installation — Compact form factor with DIN-rail mounting compatibility, enabling quick installation in tight control cabinets, machine-mounted enclosures, or retrofit applications
• Quick & Simple Commissioning — Intuitive LED keypad with parameter copy function, motor auto-tuning, and application presets for pumps, fans, and conveyors for fast startup without complex programming
• Built-in Modbus RTU — Standard RS485 Modbus RTU communication for easy connection to PLCs, HMIs, and SCADA systems, supporting multi-drop networking for coordinated drive control
• Comprehensive Protection Suite — Overcurrent, overvoltage, undervoltage, overload, overheating, short-circuit, and PTC motor protection with automatic fault recording and alarm output for quick troubleshooting
