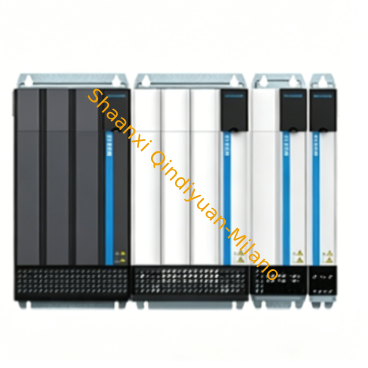

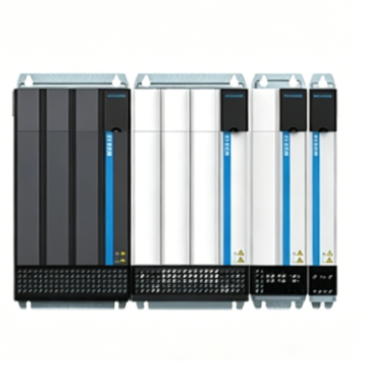

INOVANCE MD810-20M4T22G100 Multi-Axis Servo Drive Precision Motion Control

The MD810-20M4T22G100 is a high-performance multi-axis servo drive from INOVANCE’s flagship MD810 series, rated at 20A with support for up to 4 servo axes in a single compact unit with 220V class three-phase input. Built on a modular common DC-bus architecture with EtherCAT real-time communication, this drive delivers sub-millisecond synchronization, precision motion control and high dynamic response for demanding multi-axis automation applications. It is ideally suited for industrial robots, CNC machining centers, high-speed packaging lines, electronic assembly equipment and textile machinery where coordinated multi-axis motion and space-saving integration are critical requirements.

• Multi-Axis Servo Drive — Supports up to 4 servo axes in a single compact unit with shared DC bus, dramatically reducing cabinet footprint and wiring complexity compared to discrete drives.
• Precision Motion Control — Advanced servo algorithms deliver sub-millisecond position synchronization, 24-bit encoder resolution and high dynamic bandwidth for micron-level positioning accuracy.
• Common DC-Bus Architecture — Modular power supply and axis modules share regenerative energy across axes, achieving superior energy efficiency and eliminating multi-axis braking resistor waste.
• EtherCAT Real-Time Communication — Native EtherCAT bus with minimum 125μs cycle time ensures deterministic multi-axis synchronization ideal for robotics and high-speed packaging.
• One-Cable Solution Ready — Compatible with INOVANCE one-cable motor technology, combining power, encoder feedback and brake signals into a single cable for reduced installation time and cost.
• Integrated Functional Safety — Built-in STO (Safe Torque Off) and SS1 safety functions as standard, meeting SIL3/PLe requirements without additional external safety relays.

Industrial Robots & Articulated Arms, CNC Machining Centers & Milling Machines, High-Speed Packaging & Filling Lines, Electronic Assembly & Pick-and-Place Systems, Textile Spinning & Weaving Machinery, Printing & Converting Equipment, Semiconductor Wafer Handling, Laser Cutting & Welding Systems.
