Home /Products/Variable Frequency Drives VFD/MITSUBISHI FR-F840-01160-2-60 Inverter; Rated Power: 55kW; 3x380-500V

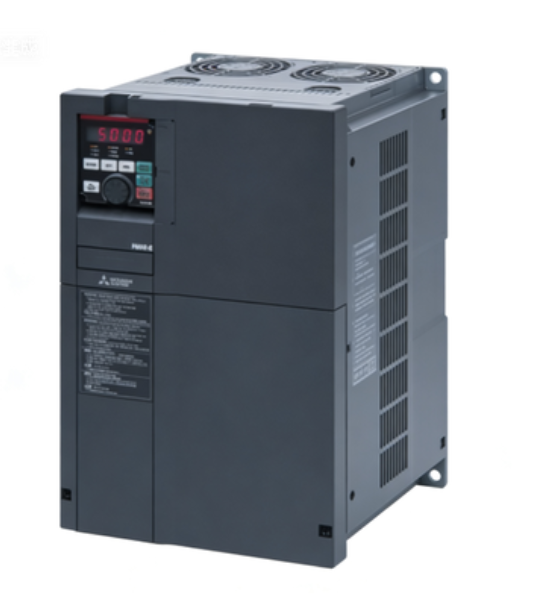

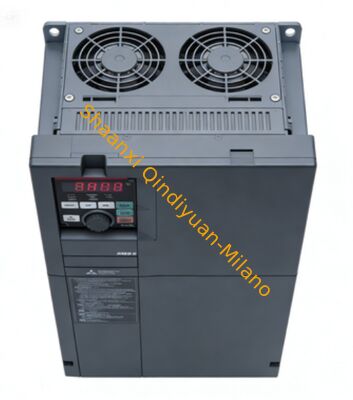

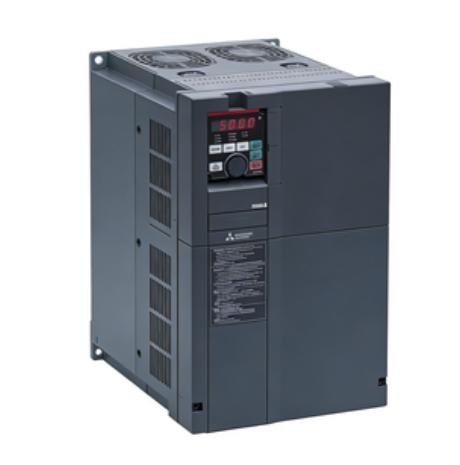

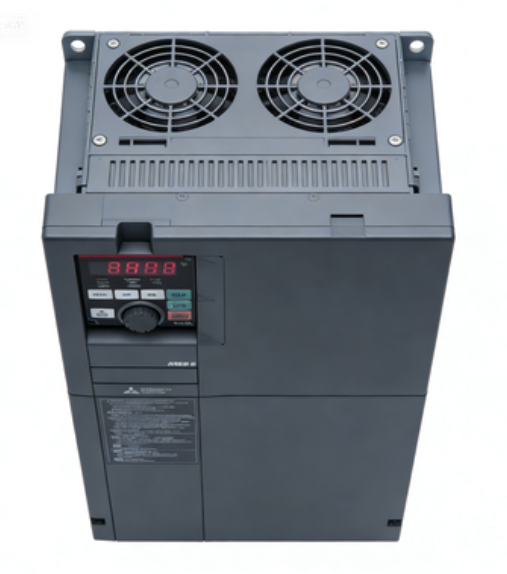

MITSUBISHI FR-F840-01160-2-60 Inverter; Rated Power: 55kW; 3x380-500V

1
MOQ
Negotiable
Price
MITSUBISHI FR-F840-01160-2-60 Inverter; Rated Power: 55kW; 3x380-500V
Features Gallery Product Description Chat Now
Features
Specifications
Memory: 50 KB
Input Frequency: 50/60 Hz
Communication Protocols: Modbus, Profibus, Ethernet/IP
Cooling Method: Forced Air Cooling
Output Voltage: 0-480 V AC
Coolingmethod: Air-cooled Or Liquid-cooled
Power Rating: 0.5 KW To 500 KW
Outputfrequencyrange: 0 To 400 Hz Or Higher
Mpu Points: 12 (8DI + 4DO)
Productname: Variable Frequency Drive (VFD)
Installationtype: Panel Mount / DIN Rail Mount
Power Supply Voltage: 100 – 240VAC.
Expandability: Modular With Expansion Modules
Efficiency: Typically 95% Or Higher
Mounting Type: Wall-mounted Or Panel-mounted
Highlight:

Mitsubishi FR-F840 VFD inverter 55kW

,

3-phase 380-500V frequency drive

,

industrial VFD with warranty
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: FR-F840-01160-2-60
Document: ib0600626g.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

FA-Inverter: Inverter

Series FR-F800 SERIES
Type FR-F800-E INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 500
Max. Permissible Voltage (V) 550
Current Type AC
Phases 3
Rated Output Current SLD (A) 116
Rated Output Current LD (A) 106
Rated Motor Capacity SLD (kW) 55
Rated Motor Capacity LD (kW) 55
Frequency Range (Hz) 0,2–590
Control Method V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter YES
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display FR-DU08
Display Type 5 DIGITS LED (12 SEGMENT)
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
IO Type of Terminal Block SPRING CLAMP
Expandable YES
USB 1+1 MINI
Ethernet Port 1
Built-In Network CC-LINK IE FIELD NETWORK BASIC, iQSS, SLMP, MELSOFT/FA, MODBUS/TCP, BACNET/IP
Leakage Current (mA) 35(DELTA) / 2(STAR)
Power Loss SLD (W) 1340
Power Loss LD (W) 1220
Standby Power Consumption (W) 28
Protection Class IP00

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals DNV,ABS
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 435
Height (mm) 550
Depth (mm) 250
Weight (kg) 41

Life Cycle

Predecessor 156602
Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 4908,8
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 155
Wood (g) 0
Glass (g) 0
Others (g) 0
