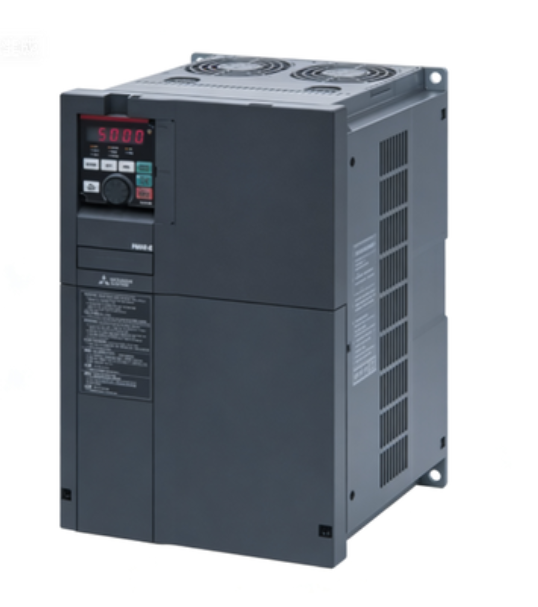

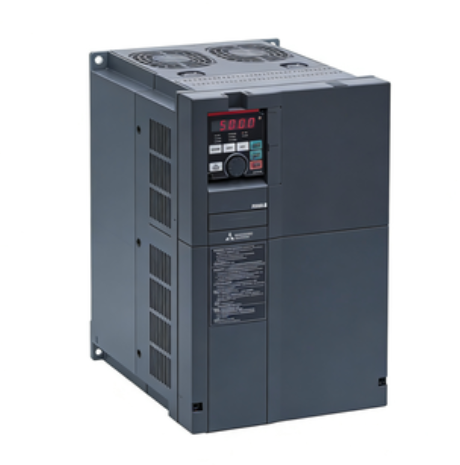

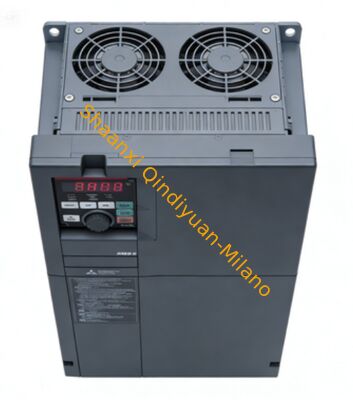

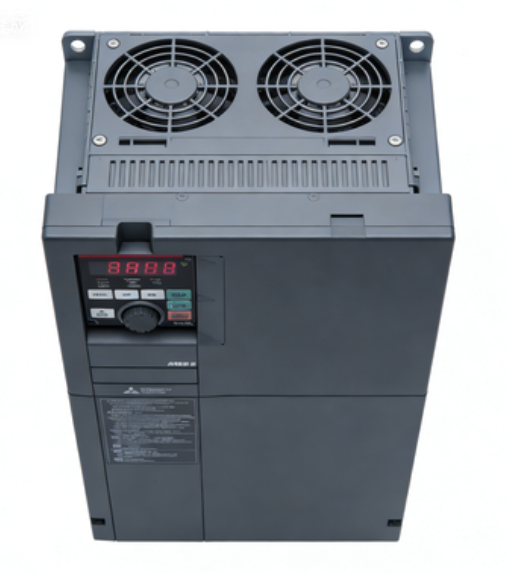

MITSUBISHI FR-A840-06830-2-60 InverterAC without DC Choke;Pn:250-355kW

1
MOQ
Negotiable
Price
MITSUBISHI FR-A840-06830-2-60 InverterAC without DC Choke;Pn:250-355kW
Features Gallery Product Description Chat Now
Features
Specifications
Installationtype: Panel Mount / DIN Rail Mount
Cooling Method: Forced Air Cooling
Output Typt: Relay
Powerrating: 0.5 KW To 1000 KW
Humidity: 0-95% Non-condensing
Output Method: Relay
Environmentalrating: IP20 To IP65 Depending On Model
Numberofoutputs: 16 Digital Outputs
Controlmethod: V/f Control, Vector Control, Direct Torque Control (DTC)
Application: Pumps, Fans, Conveyors, HVAC Systems, Machine Tools
Displaytype: LCD Or LED Display For Status And Parameter Settings
Material: Stainless Steel, Plastic, Aluminum
Memorycapacity: Typically 16KB To 1MB
Operatingtemperaturerange: -10°C To 50°C
Protectionfeatures: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Thermal Overload
Highlight:

Mitsubishi FR-A840 inverter drive

,

VFD without DC choke

,

250-355kW variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: FR-A840-06830-2-60
Document: ib0600626g.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
FA-Inverter: Inverter
Series FR-A SERIES
Type FR-A800-E INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 500
Max. Permissible Voltage (V) 550
Current Type AC
Phases 3
Rated Output Current SLD (A) 683
Rated Output Current LD (A) 610
Rated Output Current ND (A) 547
Rated Output Current HD (A) 481
Rated Motor Capacity SLD (kW) 355
Rated Motor Capacity LD (kW) 315
Rated Motor Capacity ND (kW) 280
Rated Motor Capacity HD (kW) 250
Frequency Range (Hz) 0,2–590
Control Method VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter YES
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display FR-DU08
Display Type 5 DIGITS LED (12 SEGMENT)
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
IO Type of Terminal Block SPRING CLAMP
Expandable YES
RS-485 OPTIONAL
USB 1+1 MINI
Ethernet Port 1
Built-In Network CC-LINK IE FIELD NETWORK, CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP
Leakage Current (mA) 35(DELTA) / 2(STAR)
Power Loss SLD (W) 7550
Power Loss LD (W) 6600
Power Loss ND (W) 5900
Power Loss HD (W) 5050
Standby Power Consumption (W) 125
Protection Class IP00
Conformity
CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,LR,NK
UKCA COMPLIANT
Product Dimensions & Weight
Width (mm) 680
Height (mm) 1010
Depth (mm) 380
Weight (kg) 166
Life Cycle
Predecessor 266764
Serial No. on the Box QR1
Campaigns
Selling Status Standard
Product Packaging
Cardboard (g) 15093
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 495
Wood (g) 0
Glass (g) 0
Others (g) 0
