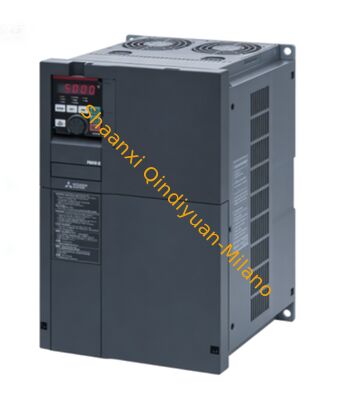

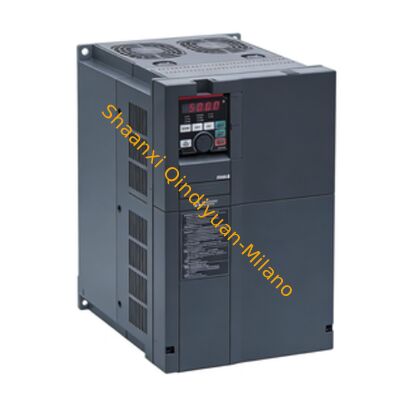

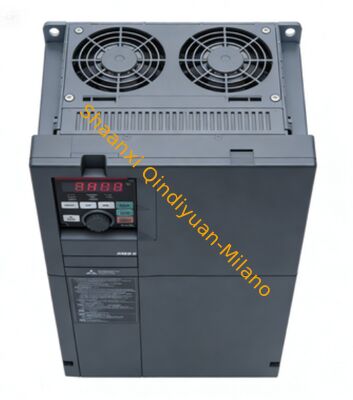

MITSUBISHI FR-A840-04320-2-60 InverterAC without DC Choke;Pn:132-220kW;3x380-500V

1
MOQ
Negotiable
Price
MITSUBISHI FR-A840-04320-2-60 InverterAC without DC Choke;Pn:132-220kW;3x380-500V
Features Gallery Product Description Chat Now
Features
Specifications
Inputvoltage: Typically 200-600V AC
Torque Control: Available
Output Frequency: 0-400 Hz
Power Rating: 0.5 KW To 500 KW
Power Range: 0.5 KW To 500 KW
Condition: New Original With Sealed
Display Type: LCD Or LED Display
Output Points: 20
Harmonic Distortion: <5% With Filter
Enclosure Rating: IP20 To IP54
Starting Torque: Up To 150% Of Rated Torque
Communication Protocols: Modbus, Profibus, Ethernet/IP
Ambient Temperature Range: -10°C To 50°C
Point: 14 (8DI+6DO)
Inputtype: Digital And Analog
Highlight:

Mitsubishi FR-A840 VFD inverter

,

132-220kW variable frequency drive

,

3x380-500V AC drive without DC choke
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: FR-A840-04320-2-60
Document: ib0600626g.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Inverter
Series FR-A SERIES
Type FR-A800-E INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 500
Max. Permissible Voltage (V) 550
Current Type AC
Phases 3
Rated Output Current SLD (A) 432
Rated Output Current LD (A) 361
Rated Output Current ND (A) 325
Rated Output Current HD (A) 260
Rated Motor Capacity SLD (kW) 220
Rated Motor Capacity LD (kW) 185
Rated Motor Capacity ND (kW) 160
Rated Motor Capacity HD (kW) 132
Control Method VECTOR CONTROL (WITH FR-A8AP)
V/F CONTROL
SOFT-PWM/HIGH FREQUENCY PWM
REAL SENSORLESS VECTOR CONTROL
PM SENSORLESS VECTOR CONTROL
MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter YES
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display FR-DU08
Display Type 5 DIGITS LED (12 SEGMENT)
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
IO Type of Terminal Block SPRING CLAMP
Expandable YES
RS-485 OPTIONAL
USB 1+1 MINI
Ethernet Port 1
Built-In Network MODBUS/TCP
CC-LINK IE FIELD NETWORK BASIC
CC-LINK IE FIELD NETWORK
Leakage Current (mA) 35(DELTA) / 2(STAR)
Power Loss SLD (W) 4650
Power Loss LD (W) 3800
Power Loss ND (W) 3450
Power Loss HD (W) 2650
Standby Power Consumption (W) 96
Protection Class IP00
Frequency Range (Hz) 0,2–590
Product Dimensions & Weight
Width (mm) 498
Height (mm) 1010
Depth (mm) 380
Weight (kg) 117
