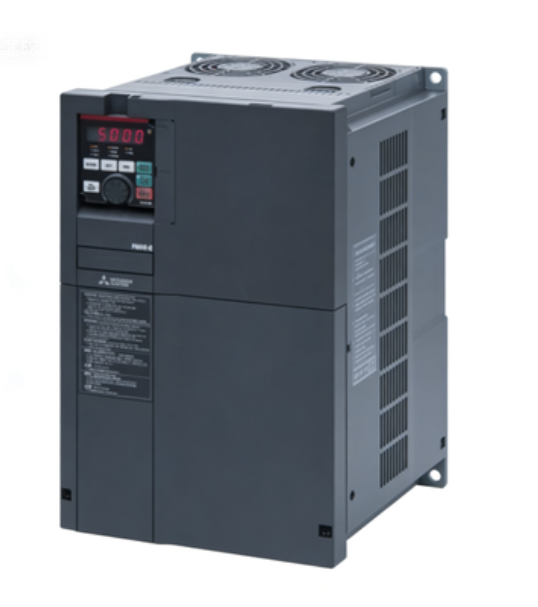

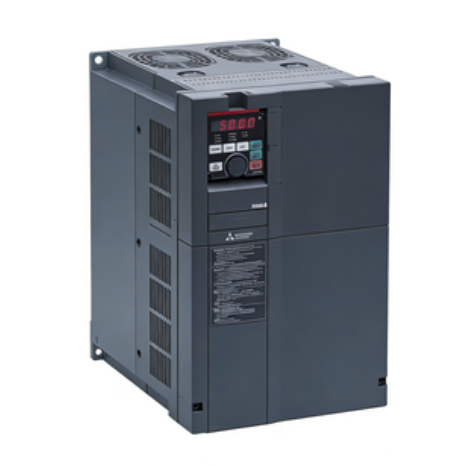

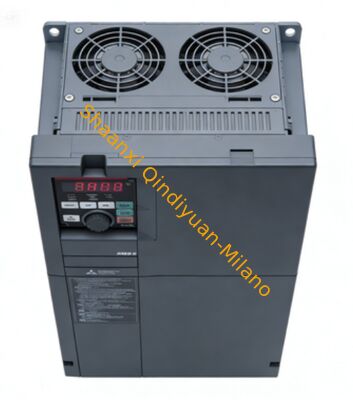

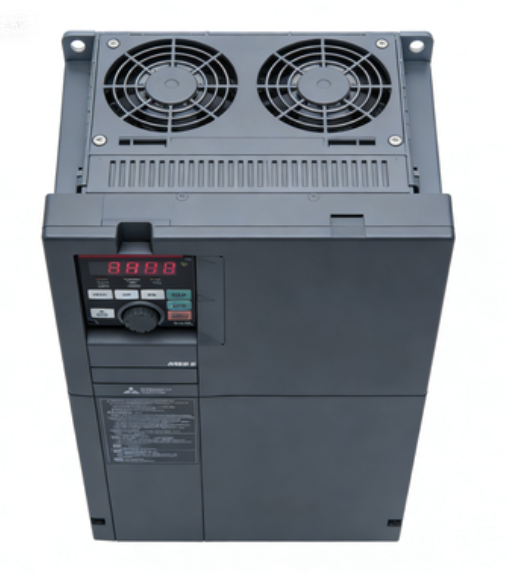

MITSUBISHI FR-A840-03250-2-60 Inverter AC; Pn: 110-132kW; 3x380-500V

1
MOQ
Negotiable
Price
MITSUBISHI FR-A840-03250-2-60 Inverter AC; Pn: 110-132kW; 3x380-500V
Features Gallery Product Description Chat Now
Features
Specifications
Operating Temperature: -10°C To 50°C
Actual Value: Negotiabled Price
Harmonic Mitigation: Built-in Reactor Or Filter Options
Outputfrequencyrange: 0 To 400 Hz Or Higher
Frequency Range: 0-400 Hz
Color: Normal
Humidity Range: 0-95% Non-condensing
Power Supply Voltage: 100 – 240VAC.
Braking Method: Dynamic Braking, Regenerative Braking
Inputvoltage: Typically 200-600 V AC
Model: CPM2A-60CDR-A
Soft Start Time: 0.1 To 60 Seconds
Display Type: LCD Or LED Display
Condition: New Original With Sealed
Power Range: 0.5 KW To 500 KW
Highlight:

Mitsubishi FR-A840 VFD inverter

,

110-132kW variable frequency drive

,

380-500V industrial AC inverter
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: FR-A840-03250-2-60
Document: ib0600626g.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
FA-Inverter: Inverter
Series FR-A800 PLUS SERIES
Type FR-A800-LC (LIQUID COOLED)
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 500
Max. Permissible Voltage (V) 550
Current Type AC
Phases 3
Rated Output Current SLD (A) 325
Rated Output Current LD (A) 260
Rated Output Current ND (A) 216
Rated Motor Capacity ND (kW) 110
Rated Motor Capacity HD (kW) 90
Frequency Range (Hz) 0,2–590
Control Method VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Brake Chopper ED (%) 100
Integrated EMC Filter YES
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display FR-DU08
Display Type 5 DIGITS LED (12 SEGMENT)
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
IO Type of Terminal Block SPRING CLAMP
Expandable YES
USB 1+1 MINI
Ethernet Port 1
Built-In Network CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS
Leakage Current (mA) 35(DELTA) / 2(STAR)
Power Loss SLD (W) 3600
Power Loss LD (W) 2800
Power Loss ND (W) 2300
Power Loss HD (W) 1850
Standby Power Consumption (W) 75
Protection Class IP00
Conformity
CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
UKCA COMPLIANT
Product Dimensions & Weight
Width (mm) 465
Height (mm) 795
Depth (mm) 360
Weight (kg) 83
Life Cycle
Serial No. on the Box QR1
Campaigns
Selling Status Standard
Product Packaging
Cardboard (g) 8500
Other paper (g) 0
Aluminum (g) 0
Steel (g) 15
Styrofoam (g) 0
Other plastic (g) 80
Wood (g) 0
Glass (g) 0
Others (g) 0
