MITSUBISHI FR-A840-01800-2-60 Inverter AC without DC Choke;Pn:45-90kW

1
MOQ
Negotiable
Price
MITSUBISHI FR-A840-01800-2-60 Inverter AC without DC Choke;Pn:45-90kW
Features Gallery Product Description Chat Now
Features
Specifications
Braking Method: Dynamic Braking, Regenerative Braking
Memory: 50 KB
Mounting Type: Wall Mount, Panel Mount
Cooling Method: Forced Air Cooling
Points: 40 (24DI+16DO)
Inputvoltage: Typically 200-600V AC
Safetyfeatures: Built-in Diagnostics And Fault Detection
Output Voltage: 0-480 V AC
Part Type: Sysmac CPM2A
Type: Automation System
Color: Normal
Humidity: 0 To 95% Non-condensing
Power Range: 0.5 KW To 500 KW
Input Frequency: 50/60 Hz
Output Points: 20
Highlight:

Mitsubishi FR-A840 inverter drive

,

VFD without DC choke

,

45-90kW variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: FR-A840-01800-2-60
Document: ib0600626g.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Inverter
Series FR-A800 PLUS SERIES
Type FR-A800-R2R (FOR ROLL TO ROLL)
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 500
Max. Permissible Voltage (V) 550
Current Type AC
Phases 3
Rated Output Current SLD (A) 180
Rated Output Current LD (A) 144
Rated Output Current ND (A) 110
Rated Output Current HD (A) 86
Rated Motor Capacity ND (kW) 55
Rated Motor Capacity HD (kW) 45
Control Method
  • VECTOR CONTROL (WITH FR-A8AP)
  • V/F CONTROL
  • SOFT-PWM/HIGH FREQUENCY PWM
  • REAL SENSORLESS VECTOR CONTROL
  • PM SENSORLESS VECTOR CONTROL
  • MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter YES
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO

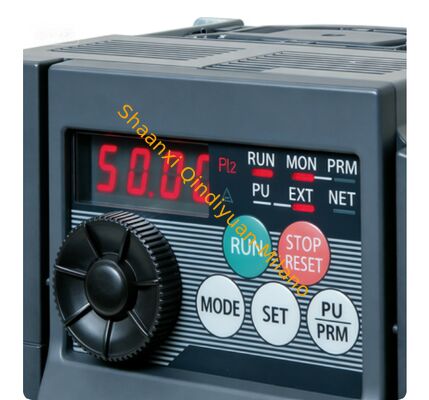

Display FR-DU08
Display Type 5 DIGITS LED (12 SEGMENT)
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
IO Type of Terminal Block SPRING CLAMP
Expandable YES
USB 1+1 MINI
Ethernet Port 1
Built-In Network
  • CC-LINK IE FIELD NETWORK BASIC
  • MODBUS/TCP
  • SLMP
  • iQSS
Leakage Current (mA) 35(DELTA) / 2(STAR)
Power Loss SLD (W) 2000
Power Loss LD (W) 1640
Power Loss ND (W) 1290
Power Loss HD (W) 1060
Standby Power Consumption (W) 28
Protection Class IP20
Frequency Range (Hz) 0,2–590
