Product Title Allen‑Bradley PowerFlex70 20AB2P2A0AYNNNC0 240V 3‑Phase AC Drive,0.37kW/0.5Hp Variable Frequency Inverter
Note: This model is EOL, official discontinuation date:May 30,2027, supplied as spare‑part
Allen‑Bradley 20AB2P2A0AYNNNC0
1. Product Overview
The Allen‑Bradley PowerFlex 70 20AB2P2A0AYNNNC0 is a high‑performance panel‑mounted AC variable‑frequency drive manufactured by Rockwell Automation. Rated for 3‑phase 240V input, 0.37kW(0.5Hp), 2.2A continuous output current. It supports V/F control and sensorless vector control. Built‑in rich I/O:6 digital inputs,2 digital outputs,2 analog inputs,1 analog output. It is widely applied to adjust motor speed & torque, realize soft start‑stop, reduce mechanical impact and achieve energy‑saving operation. Suitable for retrofit, spare‑part maintenance projects.
Note:This model is phased‑out (EOL),official discontinuation date:May 30,2027,available for spare‑part supply
2. Core Advantages & Key Features
- Dual V/F & Sensorless Vector Control Excellent low‑speed torque characteristic,stable speed performance under variable load,adaptable for most standard asynchronous motors.
- Abundant On‑board I/O Terminal 6DI / 2DO / 2AI / 1AO, meet most conventional on‑site logic control requirement without extra expansion modules.
- Built‑in Brake IGBT Reserve external dynamic‑brake resistor interface, handle quick‑stop & high‑inertia load scenarios efficiently.
- Panel‑mount IP20(NEMA Type1) Structure Standard cabinet installation, compact body, suitable for installing inside industrial control cabinet.
- Comprehensive Built‑in Protection Over‑voltage, under‑voltage, over‑current, overheat, motor overload, short‑circuit, ground‑fault protection, effectively safeguard motor & drive.
- Rich Communication Expansion Option Compatible with DeviceNet, EtherNet/IP, PROFIBUS‑DP and other mainstream industrial bus modules, easy to connect with Rockwell PLC & automation system.
- Mature EOL Spare‑part Model Stable original hardware, widely stocked for old‑equipment maintenance & replacement projects.
3. Technical Parameters
| Item |
Specification |
| Model |
20AB2P2A0AYNNNC0 |
| Brand |
Allen‑Bradley (Rockwell Automation) |
| Series |
PowerFlex 70 |
| Rated Power (Normal Duty) |
0.37 kW / 0.5 Hp |
| Input Voltage |
3‑Phase AC 200‑240V |
| Rated Output Current |
2.2 A |
| Control Mode |
V/F Control , Sensorless Vector Control |
| On‑board I/O |
6 Digital Inputs,2 Digital Outputs,2 Analog Inputs,1 Analog Output |
| Built‑in Brake IGBT |
Yes |
| Protection Class |
IP20 / NEMA Type 1, Panel Mount |
| Operating Temperature |
0~+50℃(No derating) |
| Overload Capacity |
110% for 60s,150% for 3s |
| Frequency Range |
0‑400Hz(Standard),0‑500Hz(Enhanced) |
| Product Status |
EOL(End‑of‑Life,Official Discontinuation Date:May 30,2027) |
4. Application Industries & Typical Scenarios
Applicable Industries
- Old‑equipment renovation & maintenance
- Packaging machinery
- Conveyor equipment
- HVAC ventilation & small fan system
- Water‑treatment small pump drives
- General‑purpose automated production equipment
Typical Equipment
- Small belt conveyors
- circulation pumps
- exhaust fans
- labelling machinery
- small agitators.
💡Suggested picture material

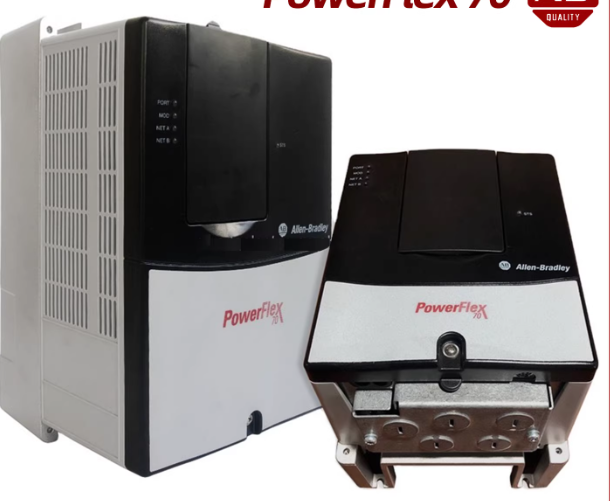

1.Product main photo:Front view of Allen‑Bradley PowerFlex70 20AB2P2A0AYNNNC0
2.Wiring / I/O terminal diagram
3.Warehouse stock picture of original Rockwell drives
5. Official Reference Quotation Range & Packing Info
Official FOB Price Range:USD 630‑750 / Unit
Price tier
- 1‑2pcs:USD 690‑750 /unit
- 3‑8pcs:USD 650‑685 /unit
- ≥9pcs:USD 630‑645 /unit
Note:EOL spare‑part item,price fluctuates according to stock availability.
Packing & Warranty
- Original brand‑new, factory individual carton package
- 12‑month manufacturer warranty for genuine new goods
- Suitable for automation spare‑part bulk stocking
ECER price text (Direct Copy)
Price Range: USD 630.00‑750.00 /unit Unit price varies with order quantity & stock level. FOB price,excluding ocean freight and destination‑country import tax. EOL spare‑part product, stock is limited. Warranty:12‑month factory warranty for brand‑new genuine product. Formal quotation sheet is available upon your inquiry.
