Home /Products/Variable Frequency Drives VFD/Danfoss 134F2975 Frequency converter VLT® AutomationDrive FC-(360) 360 2.2 KW / 3.0 HP, (T4) 380-480VAC

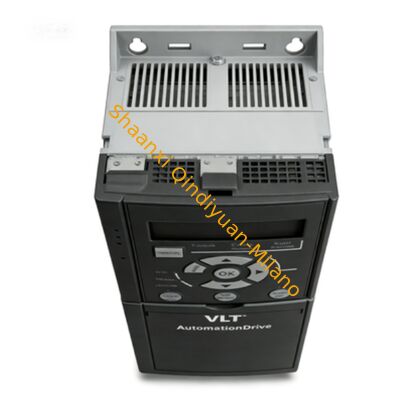

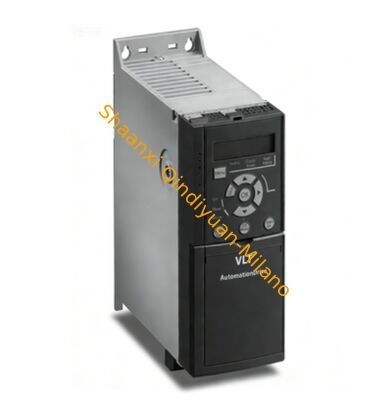

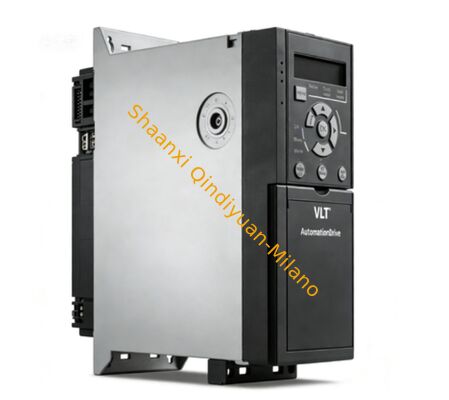

Danfoss 134F2975 Frequency converter VLT® AutomationDrive FC-(360) 360 2.2 KW / 3.0 HP, (T4) 380-480VAC

1
MOQ
Negotiable
Price
Danfoss 134F2975 Frequency converter VLT® AutomationDrive FC-(360) 360 2.2 KW / 3.0 HP, (T4) 380-480VAC
Features Gallery Product Description Chat Now
Features
Specifications
Enclosure Rating: IP20 To IP54
Display Type: LCD Or LED Display
Communication Protocols: Modbus, Profibus, Ethernet/IP
Input Frequency: 50/60 Hz
Cooling Method: Forced Air Cooling
Output Frequency: 0-400 Hz
Power Rating: 0.5 KW To 500 KW
Operating Temperature Range: -10°C To 50°C
Input Voltage: 200-480V AC
Harmonic Mitigation: Built-in DC Choke Or External Filter Options
Output Voltage: 0-480V AC
Overload Capacity: 150% For 1 Minute
Protection Features: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overload
Mounting Type: Wall-mounted Or Panel-mounted
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Highlight:

Danfoss VLT AutomationDrive FC-360

,

3.0 HP frequency converter

,

380-480VAC variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: Danfoss
Model Number: 134F2975
Document: ID362147513251-0101.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Danfoss 134F2975 Frequency Converter VLT® AutomationDrive FC-(360) 360
2.2 KW / 3.0 HP, (T4) 380-480VAC
Product Specifications
Gross Weight 2.647 Kilogram
Net Weight 2.347 Kilogram
Volume 9.337 Liter
EAN 5710107427307
Product Group FC- | VLT® AutomationDrive FC-
Series 360 | (360) 360
Power H | High Overload
Power Size 2K2 | 2.2 KW / 3.0 HP
Voltage T4 | (T4) 380-480VAC (Three phased)
Enclosure E20 | IP20 / Chassis
RFI Filter H2 | RFI Class A2
Brake & Stop B | (B) Brake Chopper
Display X | No Display (No Blind Cover)
Coating C | (C) Coated PCB
Mains Option D | Loadsharing
Frame Size J1 | J1
DrivePro Category EXCH | Exchange Unit
Technical Configuration
Typecode Part 1 FC-360H2K2T4E20H2BXC
Typecode Part 2 DXXSXXXXAXBX
Model Code 01 FC-360H2K2T4E20H2BXC
Model Code 02 DXXSXXXXAXBX
ECCN EU Y901
ECCN US 3A999.a
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
