Home /Products/Variable Frequency Drives VFD/Danfoss 134F2973 Frequency converter VLT® AutomationDrive FC-(360) 360 1.1 KW / 1.5 HP, (T4) 380-480VAC

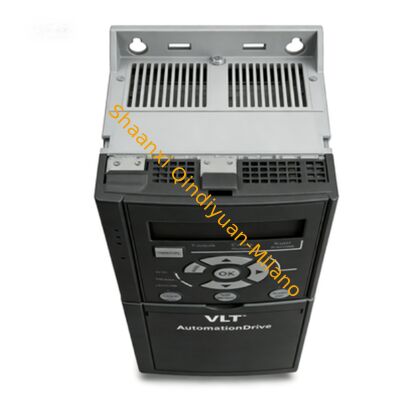

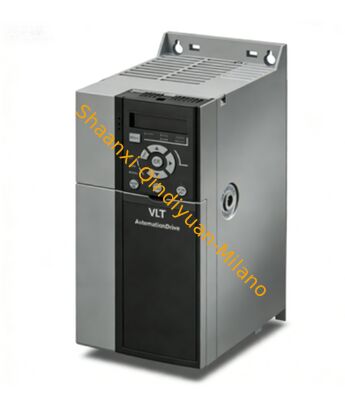

Danfoss 134F2973 Frequency converter VLT® AutomationDrive FC-(360) 360 1.1 KW / 1.5 HP, (T4) 380-480VAC

1
MOQ
Negotiable
Price
Danfoss 134F2973 Frequency converter VLT® AutomationDrive FC-(360) 360 1.1 KW / 1.5 HP, (T4) 380-480VAC
Features Gallery Product Description Chat Now
Features
Specifications
Productname: Variable Frequency Drive (VFD)
Coolingmethod: Air-cooled Or Liquid-cooled
Outputfrequency: 0 To 400 Hz Or Higher
Communicationinterfaces: Modbus, Profibus, Ethernet, CANopen
Application: Pumps, Fans, Conveyors, HVAC Systems, Machine Tools
Outputvoltage: Variable, Up To Input Voltage
Dimensions: Varies By Model, Typically Compact Size
Efficiency: Typically 95% To 98%
Controlmethod: V/f Control, Vector Control, Direct Torque Control
Powerrange: Fractional HP To Several Thousand HP
Function: Control Motor Speed And Torque By Varying Motor Input Frequency And Voltage
Inputvoltage: Typically 200V To 600V AC
Protectionfeatures: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Thermal Overload
Displaytype: LCD Or LED Display For Status And Parameters
Mountingtype: Wall-mounted, Panel-mounted, Or Standalone
Highlight:

Danfoss VLT AutomationDrive FC-360

,

1.5 HP frequency converter

,

380-480VAC variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: Danfoss
Model Number: 134F2973
Document: ID362147513251-0101.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Danfoss 134F2973 Frequency Converter VLT® AutomationDrive FC-(360) 360
1.1 KW / 1.5 HP, (T4) 380-480VAC
Product Specifications
Physical Properties
Gross Weight
2.54 Kilogram
Net Weight
2.52 Kilogram
Volume
9.337 Liter
EAN
5710107427185
Technical Configuration
Product View GLBL | Global (Standard)
Product Group FC- | VLT® AutomationDrive FC-
Series 360 | (360) 360
Power H | High Overload
Power Size 1K1 | 1.1 KW / 1.5 HP
Voltage T4 | (T4) 380-480VAC (Three phased)
Enclosure E20 | IP20 / Chassis
RFI Filter H2 | RFI Class A2
Brake & Stop B | (B) Brake Chopper
Display X | No Display (No Blind Cover)
Coating C | (C) Coated PCB
Mains Option D | Loadsharing
Adaptation A X | Standard Cable Entries
Adaptation B X | No Adaptation
Special Version SXXX | Latest release - Std. Software
Software Language Pack X | Standard Language Pack
Control Card AX | Standard Control Card
B Option BX | (BX) No B Option
Frame Size J1 | J1
Identification & Compliance
Typecode Part 1 FC-360H1K1T4E20H2BXC
Typecode Part 2 DXXSXXXXAXBX
ECCN EU Y901
ECCN US 3A999.a
Calculated Gross Weight 2.66 kg
Calculated Net Weight 2.3 kg
Model Code 01 FC-360H1K1T4E20H2BXC
Model Code 02 DXXSXXXXAXBX
