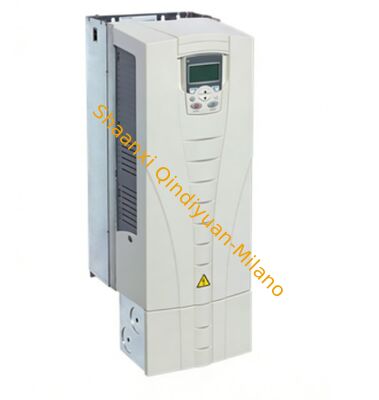

ABB ACS550-01-059A-4 Frequency Converter Compact AC Drive For Low Power

1
MOQ
Negotiable
Price
ABB ACS550-01-059A-4 Frequency Converter Compact AC Drive For Low Power
Features Gallery Product Description Chat Now
Features
Specifications
Overload Capacity: 150% For 1 Minute
Communication Protocols: Modbus, Profibus, Ethernet/IP
Input Frequency: 50/60 Hz
Ambient Temperature Range: -10°C To 50°C
Protection Features: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overheating
Cooling Method: Forced Air Cooling
Output Frequency: 0-400 Hz
Mounting Type: Wall-mounted Or Panel-mounted
Output Voltage: 0-480V AC
Efficiency: Up To 98%
Enclosure Rating: IP20 To IP54
Display Type: LED Or LCD Keypad
Power Rating: 0.5 KW To 500 KW
Input Voltage: 200-480V AC
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Highlight:

ABB ACS550 compact AC drive

,

ABB ACS550-01-059A-4
Basic Infomation
Place of Origin: china
Brand Name: ABB
Model Number: ACS550-01-059A-4
Document: Database_UL_ACS_ACH_550.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
ABB ACS550-01-059A-4 Frequency Converter

Compact AC Drive for low-power applications with advanced control capabilities and high efficiency performance.

Electrical Specifications
Temperature Class Network Frequency Network Voltage Power Current
-- 50/60 Hz 380-480 V 30.00 kW 59.00 A
Ordering Information
Customs Tariff Number: 85044099
HS Code: 850440
Invoice Description: ACS550-01-059A-4,59A,380V,IP21
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit: piece
Physical Dimensions
Net Weight: 26 kg
Net Depth/Length: 800 mm
Net Height: 410 mm
Net Width: 310 mm
Package Depth/Length: 800 mm
Package Height: 400 mm
Package Width: 300 mm
Technical Specifications
Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Frequency Range: 47.5 ... 63 Hz
Frame Size: R4
Input Voltage: 380 … 480 V
Mounting Type: Wall-mounted
Output Current (Normal Use): 59 A
Output Current (Heavy-Duty): 45 A
Output Power (Normal Use): 30 kW
Output Power (Heavy-Duty): 22 kW
Efficiency Level: IE2
Drive Module Efficiency (IEC61800-9-2)
Operating Point
Frequency / Current		 Absolute Loss Relative Loss Efficiency
0 / 25 % 294 W 0.7 % 88.0 %
0 / 50 % 404 W 1.0 % 91.2 %
0 / 100 % 741 W 1.8 % 91.8 %
50 / 25 % 325 W 0.8 % 93.3 %
50 / 50 % 466 W 1.1 % 94.9 %
50 / 100 % 879 W 2.2 % 95.2 %
90 / 50 % 523 W 1.3 % 96.8 %
90 / 100 % 1051 W 2.6 % 96.7 %
Environmental & Classifications
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC: 39122001
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
