Home /Products/Variable Frequency Drives VFD/ABB ACS550-01-031A-4 Frequency Converter Compact AC Drive For Low Power

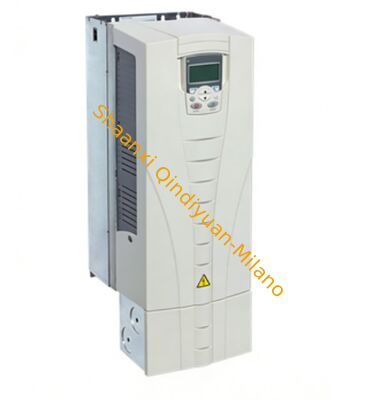

ABB ACS550-01-031A-4 Frequency Converter Compact AC Drive For Low Power

1
MOQ
Negotiable
Price
ABB ACS550-01-031A-4 Frequency Converter Compact AC Drive For Low Power
Features Gallery Product Description Chat Now
Features
Specifications
Overload Capacity: 150% For 1 Minute
Communication Protocols: Modbus, Profibus, Ethernet/IP
Input Frequency: 50/60 Hz
Ambient Temperature Range: -10°C To 50°C
Protection Features: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overheating
Cooling Method: Forced Air Cooling
Output Frequency: 0-400 Hz
Mounting Type: Wall-mounted Or Panel-mounted
Output Voltage: 0-480V AC
Efficiency: Up To 98%
Enclosure Rating: IP20 To IP54
Display Type: LED Or LCD Keypad
Power Rating: 0.5 KW To 500 KW
Input Voltage: 200-480V AC
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Highlight:

ABB ACS550 compact AC drive

,

low power frequency converter

,

ABB ACS550-01-031A-4
Basic Infomation
Place of Origin: china
Brand Name: ABB
Model Number: ACS550-01-031A-4
Document: Database_UL_ACS_ACH_550.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
ABB ACS550-01-031A-4 Frequency Converter

Compact AC Drive for Low-Power Applications

Electrical Specifications
Temperature Class Frequency Voltage Power Current
-- 50/60 Hz 380-480 V 15.00 kW 31.00 A
Ordering Information
Customs Tariff Number: 85044099
HS Code: 850440
Invoice Description: ACS550-01-031A-4, 31A, 380V, IP21
Made to Order: No
Minimum Order Quantity: 1 piece
Sales Unit: piece
Dimensions
Net Weight: 18 kg
Net Depth/Length: 675 mm
Net Height: 384 mm
Net Width: 284 mm
Package Depth/Length: 700 mm
Package Height: 400 mm
Package Width: 290 mm
Technical Specifications
Phase Number: 3-phase
Protection Degree: IP21
NEMA Enclosure Type: Type1
Frequency (f): 47.5 ... 63 Hz
Frame Size: R3
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted
Output Current, Normal Use (In): 31 A
Output Current, Heavy Duty Use (IHD): 23 A
Output Power, Normal Use (Pn): 15 kW
Output Power, Heavy Duty Use (PHD): 11 kW
Efficiency Level: IE2
Drive Module Efficiency (61800-9-2)
Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %152 W0.7 %88.2 %
0 / 50 %202 W0.9 %91.6 %
0 / 100 %354 W1.6 %92.5 %
50 / 25 %166 W0.8 %93.5 %
50 / 50 %230 W1.1 %95.2 %
50 / 100 %412 W1.9 %95.7 %
90 / 50 %250 W1.2 %97.1 %
90 / 100 %503 W2.3 %97.0 %
Environmental & Classifications
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC: 39122001
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
