ABB ACS550-01-03A3-4 Frequency converter Compact AC Drive for Low-Power
Features Gallery Product Description Chat Now
Features
Specifications
Storage Temperature Range: -20°C To 70°C
Display Type: LCD Or LED
Communication Protocols: Modbus, Profibus, Ethernet/IP
Harmonic Mitigation: Built-in Reactor Or Filter Options
Safety Features: Overcurrent, Overvoltage, Undervoltage, Short Circuit Protection
Operating Temperature Range: -10°C To 50°C
Output Voltage: 0-480 V AC
Mounting Type: Wall-mounted Or Panel-mounted
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Cooling Method: Forced Air Cooling
Power Rating: 0.5 KW To 500 KW
Protection Class: IP20 To IP54
Output Frequency: 0-400 Hz
Input Voltage: 200-480 V AC
Overload Capacity: 150% For 1 Minute
Highlight:

ABB ACS550 frequency converter

,

ABB ACS550-01-03A3-4
Basic Infomation
Place of Origin: china
Brand Name: ABB
Model Number: ACS550-01-125A-4
Document: Database_UL_ACS_ACH_550.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

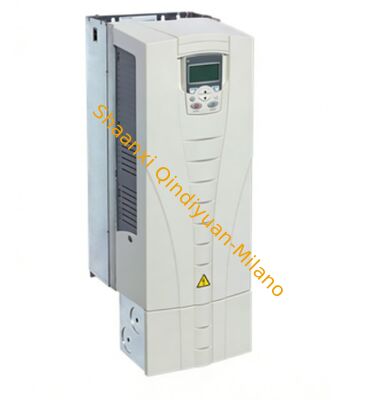

ABB ACS550-01-03A3-4 Frequency Converter
Compact AC Drive for Low-Power Applications
Product Overview
The ABB ACS550-01-03A3-4 is a compact, versatile frequency converter designed for low-power motor control applications. This 3-phase AC drive offers reliable performance with advanced features for industrial automation.
Technical Specifications
Output Power (Normal Use): 1.1 kW
Output Power (Heavy-Duty): 0.75 kW
Output Current (Normal Use): 3.3 A
Output Current (Heavy-Duty): 2.4 A
Input Voltage: 380-480 V
Frequency: 47.5-63 Hz
Number of Phases: 3-phase
Efficiency Level: IE2
Degree of Protection: IP21
Enclosure Type: NEMA Type 1
Mounting Type: Wall-mounted
Frame Size: R1
Drive Efficiency Performance
Complete Drive Module Efficiency (IEC61800-9-2)
Frequency / Current Absolute Loss Relative Loss Efficiency
0 / 25 % 29 W 1.3 % 80.8 %
0 / 50 % 31 W 1.4 % 88.2 %
0 / 100 % 38 W 1.7 % 92.0 %
50 / 25 % 30 W 1.3 % 89.4 %
50 / 50 % 33 W 1.5 % 93.6 %
50 / 100 % 42 W 1.8 % 95.6 %
90 / 50 % 36 W 1.6 % 96.1 %
90 / 100 % 46 W 2.0 % 97.2 %
Physical Dimensions
Net Weight: 6.17 kg
Net Dimensions (H*W*D): 365 * 225 * 465 mm
Package Dimensions (H*W*D): 400 * 240 * 490 mm
Ordering Information
Invoice Description: ACS550-01-03A3-4, 3.3A, 380V, IP21
Customs Tariff Number: 85044099
HS Code: 850440
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit: piece
Made To Order: No
Quote Only: No
Environmental & Classifications
WEEE Category: 5. Small Equipment
UNSPSC: 39122001
