Name: Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV compact variable frequency drive with advanced vector control, built-in PID regulation, and RS485 communication
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: KV90S-0D75G-1-PV
Availability: InStock

Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV compact variable frequency drive with advanced vector control, built-in PID regulation, and RS485 communication

1pcs

MOQ

Negotiable

Price

Features Gallery Product Description Chat Now

Features

Specifications

Powerrating: 0.5 KW To 1000 KW (varies By Model)

Efficiency: Typically 95% To 98%

Function: Control Motor Speed And Torque By Varying Motor Input Frequency And Voltage

Overloadcapacity: 150% Rated Current For 1 Minute

Outputfrequency: 0 To 400 Hz (typical Range)

Communicationprotocols: Modbus, Profibus, Ethernet/IP, CANopen

Inputvoltage: Typically 200-600V AC

Protectionfeatures: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overheating

Outputvoltage: Variable, Up To Input Voltage

Controlmethod: V/F Control, Vector Control, Sensorless Vector Control

Applications: Pumps, Fans, Conveyors, HVAC Systems, Machine Tools

Mountingtype: Wall-mounted Or Panel-mounted

Coolingmethod: Forced Air Cooling Or Liquid Cooling

Productname: Variable Frequency Drive (VFD)

Displaytype: LCD Or LED Display For Status And Parameter Settings

Highlight:

compact variable frequency drive with PID

VFD Milano KV90S with RS485

variable frequency drive vector control

Basic Infomation

Place of Origin: China

Brand Name: Milano

Certification: CO

Model Number: KV90S-0D75G-1-PV

Document: Datesheet.xlsx

Payment & Shipping Terms

Packaging Details: pieces

Delivery Time: 1week

Payment Terms: T/T

Supply Ability: 20PCS 1week

Gallery

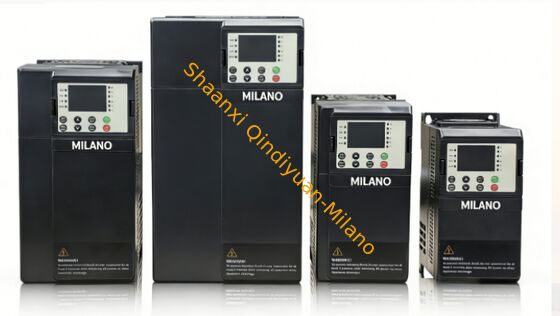

Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV compact variable frequency drive with advanced vector control, built-in PID regulation, and RS485 communication

Product Description

Product Specifications

Model	-S2 (220V single-phase output)	-I (220V single-phase output)	-4 (380V three-phase output)
Input voltage range (PV)	190-450V	190-450V	270-900V
Recommended Voc voltage	300-400V	300-400V	450-700V
Optimum MPPT voltage	310V	310V	540V
Maximum MPPT efficiency	up to 99%	up to 99%	up to 99%
Start-up voltage	240V	240V	350V
Minimum Operating Voltage	190V	190V	270V
Input voltage range (AC)	1PH 220-240V(±10%)	1PH 220-240V(±10%)	3PH 380-480V(±10%)
Input voltage frequency	50/60Hz	50/60Hz	50/60Hz
Output voltage range	0-230V	0-230V	0-480V
Output frequency range	0-400Hz	0-400Hz	0-400Hz
Output power range	0.75-4kW	0.75-4kW	0.75-185kW
Power (kW)	Rated output current (-S2)	Rated output current (-I)	Rated output current (-4)
0.75	9	5	2.7
1.5	13	7	3.7
2.2	18	10	5
3	23	13	7
4	28	17	9
5.5	40	25	13
7.5	60	32	17
11	75	45	25
15	90	60	32
18.5	110	75	37
22	150	90	45
30	176	110	60
37	210	150	75
45		176	110
55		210	150
75			176
90			210
110			250
132			300
160			340
185			400
Motor type	Single phase motor	Asynchronous motors, Permanent magnet synchronous motor
Control mode	V/F control, Open-Loop Vector Control, Closed-Loop Vector Control
Overload capacity	150% of rated load for 60s; 180% overload capacity for 10s; 200% of overload capacity for 0.5s
Installation	Support wall-mounted
Protection class	IP20
Working temperature	-10°C~+50°C; after exceeding 40°C, the derating will be reduced by 2% according to 1°C
Cooling method	Forced air cooling
Humidity	20%~95%RH (condensation free)
Installation environment	Less than 1000m; after exceeding 1000m, the amount will be reduced by 1% according to 100m
