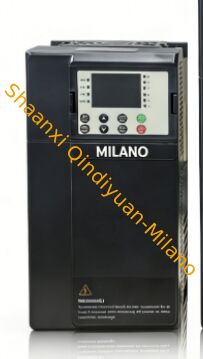

Home /Products/Variable Frequency Drives VFD/Milano KV90S-1D5G-S2-PV 220V Single Phase Overall Dimensions：205H(mm) 105W(mm) 165D(mm) Mounting Dimensions：190A(mm) 90B(mm)

Milano KV90S-1D5G-S2-PV 220V Single Phase Overall Dimensions：205H(mm) 105W(mm) 165D(mm) Mounting Dimensions：190A(mm) 90B(mm)

1pcs
MOQ
Negotiable
Price
Milano KV90S-1D5G-S2-PV 220V Single Phase Overall Dimensions：205H(mm) 105W(mm) 165D(mm) Mounting Dimensions：190A(mm) 90B(mm)
Features Gallery Product Description Chat Now
Features
Specifications
Overload Capacity: 150% For 1 Minute
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Operating Temperature Range: -10°C To 50°C
Input Frequency: 50/60 Hz
Cooling Method: Forced Air Cooling
Input Voltage: 200-480 V AC
Output Voltage: 0-480 V AC
Protection Class: IP20 To IP65
Power Rating: 0.5 KW To 500 KW
Storage Temperature Range: -40°C To 85°C
Communication Protocols: Modbus, Profibus, Ethernet/IP
Output Frequency: 0-400 Hz
Weight: Varies By Model
Display Type: LCD Or LED Display
Dimensions: Varies By Model
Highlight:

220V single phase VFD drive

,

Milano KV90S variable frequency drive

,

compact VFD drive with mounting dimensions
Basic Infomation
Place of Origin: China
Brand Name: Milano
Model Number: KV90S-1D5G-S2-PV
Document: Datesheet.xlsx
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Milano KV90S-1D5G-S2-PV 220V Single Phase Variable Frequency Drive
Physical Dimensions
Overall Dimensions: 205mm (H) × 105mm (W) × 165mm (D)
Mounting Dimensions: 190mm (A) × 90mm (B)
Technical Specifications
Electrical Parameters by Model
Parameter -S2 (220V Single-Phase) -I (220V Single-Phase) -4 (380V Three-Phase)
Input Voltage Range (PV) 190-450V 190-450V 270-900V
Recommended Voc Voltage 300-400V 300-400V 450-700V
Optimum MPPT Voltage 310V 310V 540V
Maximum MPPT Efficiency up to 99% up to 99% up to 99%
Start-up Voltage 240V 240V 350V
Minimum Operating Voltage 190V 190V 270V
Input Voltage Range (AC) 1PH 220-240V(±10%) 1PH 220-240V(±10%) 3PH 380-480V(±10%)
Input Voltage Frequency 50/60Hz 50/60Hz 50/60Hz
Output Voltage Range 0-230V 0-230V 0-480V
Output Frequency Range 0-400Hz 0-400Hz 0-400Hz
Output Power Range 0.75-4kW 0.75-4kW 0.75-185kW
Rated Output Current by Power Rating
Power (kW) -S2 Current (A) -I Current (A) -4 Current (A)
0.75952.7
1.51373.7
2.218105
323137
428179
5.5402513
7.5603217
11754525
15906032
18.51107537
221509045
3017611060
3721015075
45176110
55210150
75176
90210
110250
132300
160340
185400
Performance Characteristics
Motor Compatibility: Single phase motor, Asynchronous motors, Permanent magnet synchronous motor
Control Modes: V/F control, Open-Loop Vector Control, Closed-Loop Vector Control
Overload Capacity: 150% of rated load for 60s; 180% overload capacity for 10s; 200% of overload capacity for 0.5s
Environmental Specifications
Installation: Wall-mounted
Protection Class: IP20
Working Temperature: -10°C to +50°C (derating 2% per 1°C above 40°C)
Cooling Method: Forced air cooling
Humidity: 20% to 95% RH (condensation free)
Installation Altitude: Up to 1000m (derating 1% per 100m above 1000m)
