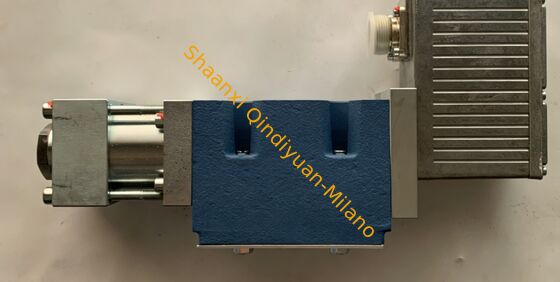

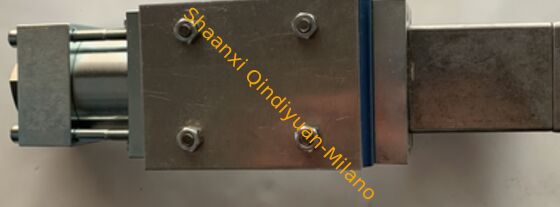

MOOG D634-528A Direct Acting Servo Valve -20°C To 70°C Operating Temperature

1 pcs
MOQ
Negotiable
Price
MOOG D634-528A Direct Acting Servo Valve -20°C To 70°C Operating Temperature
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperature: -20°C To 70°C
Function: Control Valve Actuator Position
Responsetime: Less Than 1 Second
Supplypressure: 20-30 Psi / 1.4-2.0 Bar
Feedbacksignal: Potentiometer / LVDT / Digital Feedback
Inputsignal: 4-20 MA / 0-10 V / HART / Fieldbus
Application: Control Of Industrial Control Valves In Process Industries
Powersupply: 24 V DC / 110 V AC / 220 V AC
Mountingtype: Direct Mount / Remote Mount
Outputpressurerange: 3-15 Psi / 0.2-1.0 Bar
Productname: Valve Positioners
Type: Electro-pneumatic / Pneumatic / Digital
Protectionclass: IP65 / NEMA 4
Material: Aluminum Alloy / Stainless Steel
Accuracy: ±1% Of Full Scale
Highlight:

MOOG D634-528A

,

MOOG Direct Acting Servo Valve
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: D634-528A
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
I. Core Features
  • Direct-acting linear force motor drive: No pilot oil required, dynamic performance is pressure-independent, fast response, and anti-contamination.
  • Integrated electronics + valve core closed-loop: Built-in amplifier with valve core position feedback, high control accuracy, and low hysteresis.
  • Low power consumption: Low current consumption in and around the neutral position, energy saving.
  • Fail-safe: When power is lost, the valve core spring returns to the neutral position, and the system shuts down safely.
  • Installation standard: ISO 4401 specification 05 (NG10), flange mounting.
II. Key Technical Parameters
Hydraulic Parameters
  • Rated flow rate: 100 l/min (Δp = 35 bar / per throttle edge)
  • Maximum working pressure: P/A/B port 350 bar; T port 210 bar
  • Working medium: Petroleum-based hydraulic oil (DIN 51524), viscosity 5–400 mm²/s
  • Temperature range: Ambient -20℃~+60℃; Oil -20℃~+80℃
  • Step Response: 0–100% Stroke ≤20 ms
  • Hysteresis: ≤0.2%
  • Weight: Approx. 5.7 kg
Electrical Parameters
  • Power Supply: 24 VDC (19–32 VDC)
  • Control Signals: ±10 V, ±10 mA, 4–20 mA (optional)
  • Protection Rating: Connector IP65Moog
III. Typical Applications
  • Injection Molding Machines, Die Casting Machines, Servo Presses, Testing Machines
  • Rolling Mills, Plastics Machinery, Hydraulic Test Benches
  • Industrial hydraulic systems requiring high dynamics and high-precision closed-loop control
IV. Installation and Maintenance
  • Installation: ISO 4401-05 flange, M6 bolts, torque 13 Nm
  • Filtration: Oil cleanliness ISO 4406 16/13 and above, high-pressure filter recommended
  • Seal: Standard NBR, FKM optional
