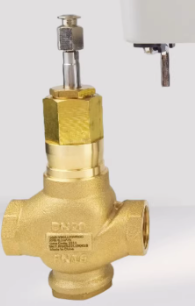

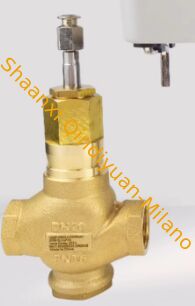

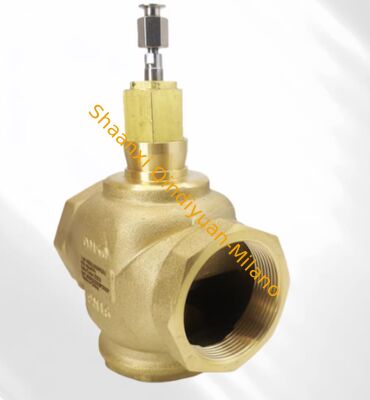

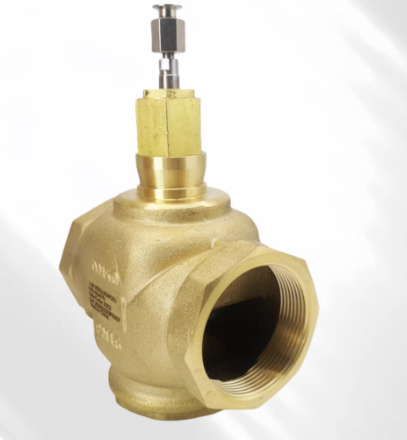

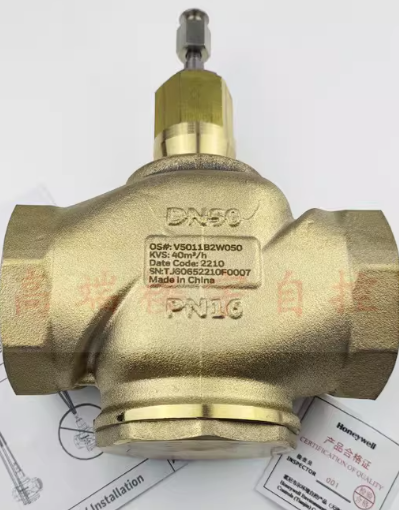

Honeywell V5011B2W050 Control Valve With IP65 / IP67 Ingress Protection

The V5011B2 series bidirectional threaded linear valve can be connected to ML74/ML64/ML88 series valve actuators and is widely used in hot and cold water control of HVAC systems.

Features:

• Low leakage rate

• Precise stem positioning ensures temperature control

• Long service life

• No accessories required, quick installation with actuator

Technical Parameters
Specifications
Rated Pressure PN16
Valve Size DN15 – DN50
Flow Characteristics Equal Percentage
Leakage Rate ≤0.01% Kvs
Range 50:1
Application Medium Cold and Hot Water
Medium Temperature Water Temperature: -15~130℃
Medium Flow 20mm±1
Materials Valve Body: Brass;
Valve Stem: Stainless Steel;
Valve Plug: Stainless Steel
Contact Threaded
Direction of Action Stem Downward Closing

Valve Specifications
Actuator Closing Pressure (kPa)
Order Number
Valve Size Kvs(m3/h) 600N (ML6420A3007E / ML7420A8088E / ML8824A0620 / ML7425A8018E) 1800N (ML7421A8035E / ML8824A1820)
V5011B2W050 DN50 40 220 kPa 630 kPa
