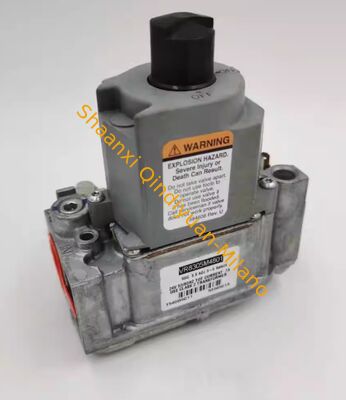

Honeywell VR8305M4801 Combustion Valve With 24 VDC Power Supply IP65 / IP67

1 pcs
MOQ
Negotiable
Price
Honeywell VR8305M4801 Combustion Valve With 24 VDC Power Supply IP65 / IP67
Features Gallery Product Description Chat Now
Features
Specifications
Ingressprotection: IP65 / IP67
Ambienttemperaturerange: -40°C To +85°C
Material: Aluminum Alloy / Stainless Steel
Responsetime: Less Than 1 Second
Feedbacktype: Potentiometer / Digital Feedback
Type: Electro-pneumatic / Pneumatic / Digital
Productname: Valve Positioners
Application: Control Valve Position In Process Automation
Outputpressure: 0.2 To 1.0 MPa
Powersupply: 24 VDC / 110 VAC / 220 VAC
Mountingtype: Direct Mount / Remote Mount
Supplypressure: 1.4 To 7 Bar (20 To 100 Psi)
Communicationprotocol: HART / Foundation Fieldbus / Profibus
Controlsignal: 4-20mA / 0-10V / HART / Fieldbus
Accuracy: ±0.5% Of Span
Highlight:

Honeywell VR8305M4801

,

Combustion Valve 24 VDC

,

Combustion Valve IP65
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: VR8305M4801
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

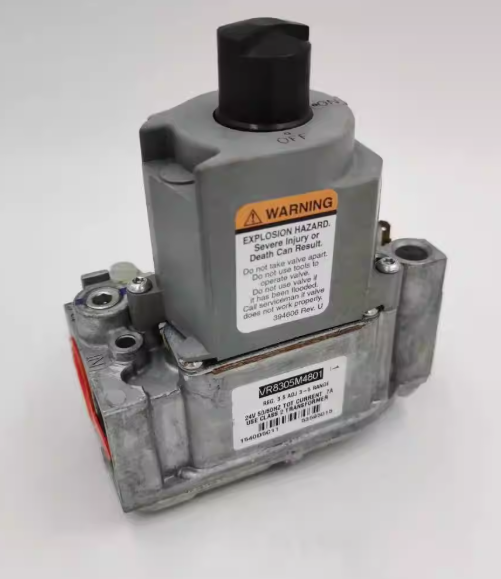

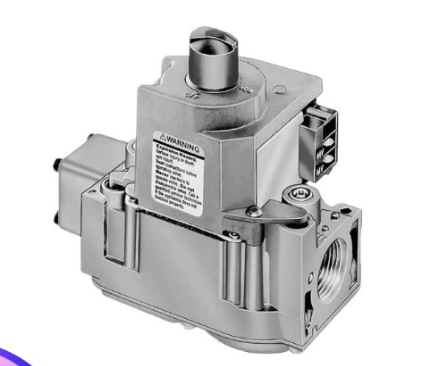

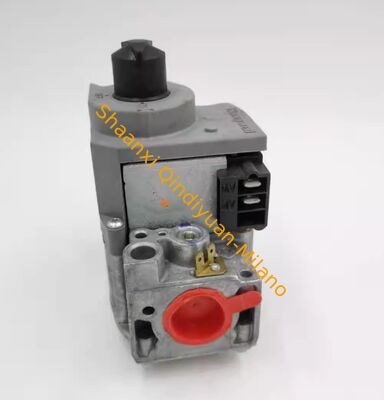

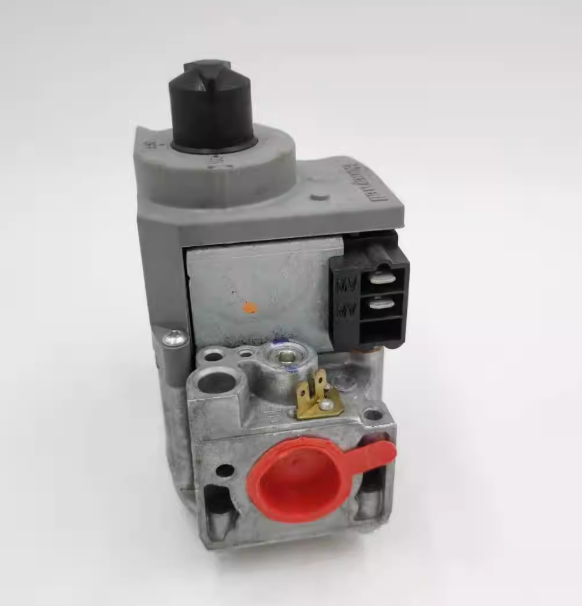

Honeywell VR8305M4801 Combustion Valves
A combined gas controller designed for 24 Vac hot surface/direct ignition systems and gas appliances, with capacities ranging from 30 to 415 cubic feet per hour.
Key Features
  • Integrated manual valve, two automatic actuators, and pressure regulator
  • Dual automatic valve system for enhanced safety
  • Solenoid-controlled valve opens with thermostat heating command
  • Diaphragm valve opens under regulator control, closes during gas or power interruption
  • Compliant with double safety shut-off specifications
  • Conversion kits available for natural gas to LPG and vice versa
  • Light switch sequence operation
  • Top-accessible adjustments, wiring, and indicator light sockets
  • Compatible with S89C, E, F, and S87 Series 5 and later models
Technical Specifications
Application Single-Level
Dimensions 5 3/8" H * 5 1/16" W * 2 1 1/16" D (135mm * 129mm * 69mm)
Item Type Gas Control Valve
Installation 0 to 90 degree rotation from upright position in any direction
Frequency 50Hz / 60Hz
Certifications UL (MH8191) / CSA International (112395)
Electrical Connection 1/4" quick-connect male terminal
Voltage 24 volts
Operating Temperature -40°F to +175°F (-40°C to +79°C)
Body Type Straight-through opening
Pressure Rating 1/2 psi (3.5 kPa)
Inlet/Outlet Size 3/4" * 3/4"
Pressure Tap 1/8" NPT thread with plug
Fuel Type Natural Gas
Capacity 300,000 BTU/h (minimum 30,000 BTU/h at 1" water column pressure)
Pressure Regulator Setting 3.5" water column (0.87 kPa)
Ignition Type Direct Ignition
Expected Setting 0.62 amperes
Primary Application: Single-level gas appliance control
Capacity Range: 30,000 - 300,000 BTU/h
Safety Compliance: Double shut-off system with UL and CSA certifications
