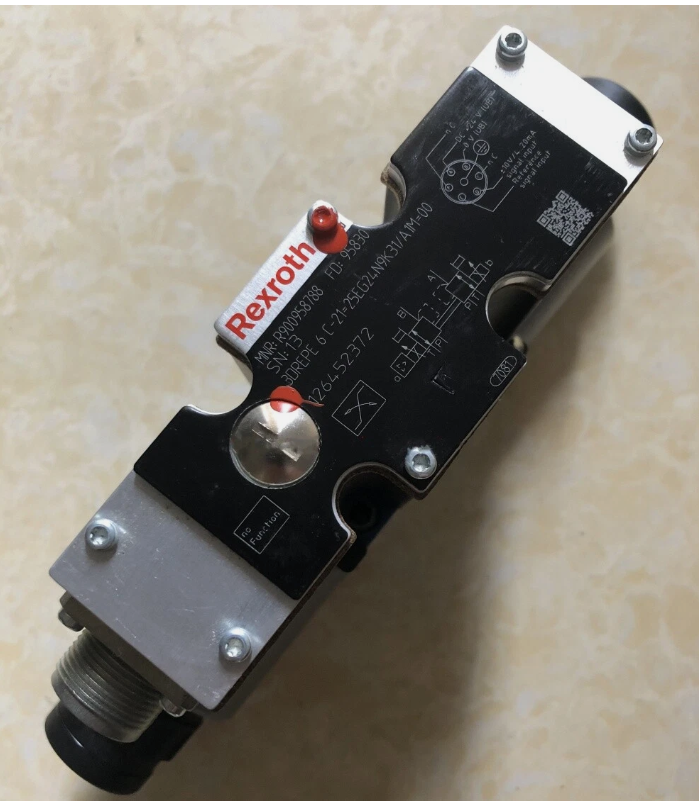

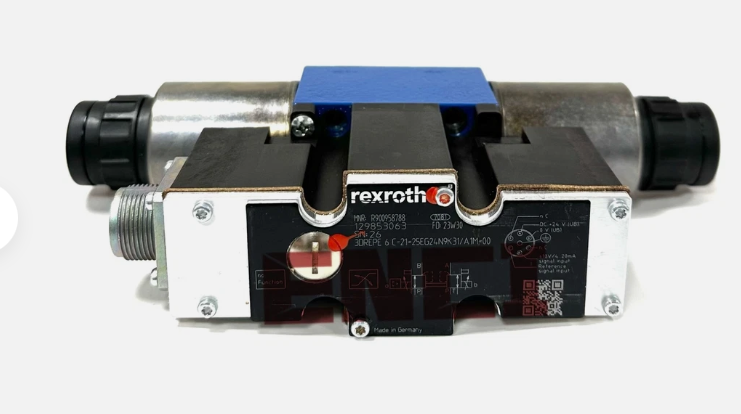

Rexroth WSM08130C-01-C-N-24DG Valve Positioners 24V DC IP65 Ingress Protection

1
MOQ
Negotiable
Price
Rexroth WSM08130C-01-C-N-24DG Valve Positioners 24V DC IP65 Ingress Protection
Features Gallery Product Description Chat Now
Features
Specifications
Mountingtype: Direct Mount / Remote Mount
Operatingtemperature: -40°C To 85°C (-40°F To 185°F)
Feedbacktype: Linear Potentiometer / Magnetic Sensor
Accuracy: ±1% Of Full Scale
Powersupply: 24 V DC / 110 V AC / 220 V AC
Application: Control Valve Position In Industrial Automation
Controlsignal: 4-20 MA / 0-10 V / HART / Fieldbus
Communicationprotocol: HART / FOUNDATION Fieldbus / PROFIBUS
Responsetime: Less Than 1 Second
Type: Electro-pneumatic / Pneumatic / Digital
Ingressprotection: IP65 / IP67
Productname: Valve Positioners
Supplypressure: 1.4 To 7 Bar (20 To 100 Psi)
Material: Aluminum Alloy / Stainless Steel
Outputpressure: 0.2 To 1.0 MPa
Highlight:

WSM08130C-01-C-N-24DG

,

Valve Positioners 24V DC

,

Valve Positioners IP65
Basic Infomation
Place of Origin: Gemany
Brand Name: Rexoth
Certification: Brand new original
Model Number: WSM08130C-01-C-N-24DG
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 100000
Product Description

Rexoth WSM08130C-01C-N-24DG Valve

Hydraulic Performance
Maximum Working Pressure 350 bar
Maximum Working Flow Rate 22 L/min
Internal Leakage Zero leakage (cone valve core seal structure)
Working Medium Hydraulic oil conforming to DIN 51524 Parts 1/2/3
Medium Viscosity 7.4 mm²/s ~ 420 mm²/s
Medium Temperature -20℃ ~ +120℃ (FKM seal); -20℃ ~ +100℃ (standard NBR seal)
Ambient Temperature -20℃ ~ +60℃
Installation Direction Unrestricted, can be installed at any angle

Electrical Parameters
Power Supply Voltage DC 24V (24DG)
Voltage Tolerance Nominal voltage ±15%
Current Consumption at 20℃ 1.13 A
Coil Type Wet electromagnet, Model - 50-1836, Continuous Duty
Protective Features Internally sealed coil, waterproof and dustproof, suitable for harsh industrial environments
Structure and Materials
Valve Body Free-cutting steel, zinc-nickel plated surface, corrosion-resistant and wear-resistant
Valve Core Hardened and ground steel cone valve, reliable oil flow cutoff, low wear, and long service life
Seals Standard NBR, optional FKM (high temperature resistant)
Support Ring PTFE material, improving sealing stability
Coil Housing Steel/polyamide composite structure, impact-resistant and vibration-resistant
