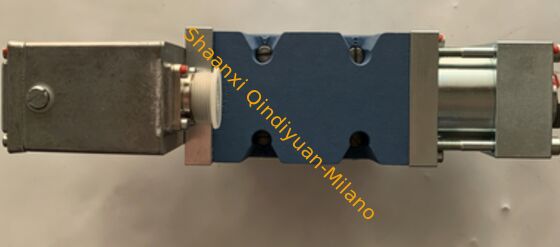

MOOG D633-319C Direct Acting Servo Valve DDV 75 L/min Max Flow Rate

1 pcs
MOQ
Negotiable
Price
MOOG D633-319C Direct Acting Servo Valve DDV 75 L/min Max Flow Rate
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperature: -20°C To 70°C
Function: Control Valve Actuator Position
Responsetime: Less Than 1 Second
Supplypressure: 20-30 Psi / 1.4-2.0 Bar
Feedbacksignal: Potentiometer / LVDT / Digital Feedback
Inputsignal: 4-20 MA / 0-10 V / HART / Fieldbus
Application: Control Of Industrial Control Valves In Process Industries
Powersupply: 24 V DC / 110 V AC / 220 V AC
Mountingtype: Direct Mount / Remote Mount
Outputpressurerange: 3-15 Psi / 0.2-1.0 Bar
Productname: Valve Positioners
Type: Electro-pneumatic / Pneumatic / Digital
Protectionclass: IP65 / NEMA 4
Material: Aluminum Alloy / Stainless Steel
Accuracy: ±1% Of Full Scale
Highlight:

Direct Acting Servo Valve

,

Servo Valve DDV

,

MOOG D633-319C
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: D633-319C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
MOOG D633-319C Servo Valve Technical Specifications
Hydraulic Parameters
Parameter Specification Description
Model D633-319C Complete Model: D633-319C
Type Direct-acting servo valve (DDV) Directly driven by linear force motor, no pilot stage
Maximum Working Pressure 350 bar (35 MPa) P/A/B ports; T port ≤50 bar (no Y port) / ≤210 bar (with Y port)
Rated Flow Rate 40 L/min @35 bar Valve pressure drop (single port)
Maximum Flow Rate 75 L/min Overload flow rate
Step Response ≤12 ms 0->100% stroke Moog
Frequency Response 40-60 Hz ±100% input signal
Control Accuracy Hysteresis < 0.2%, resolution < 0.1% High precision control
Working Medium: Mineral oil (DIN 51524), Water Glycol, Phosphate Ester
Oil Viscosity: Recommended 15-100 mm²/s; Permissible 5-400 mm²/s
Cleanliness: ISO 4406 <15/12 (Reliable); <14/11 (Long Life)
Internal Leakage: ≈1.2 L/min (Zero Overlap)
Electrical Parameters
Parameter Specification Description
Power Supply 24 VDC (19-32 VDC) Wide voltage range
Maximum Current 1.2 A Power consumption specification
Control Signal ±10 V / ±10 mA / 4-20 mA Built-in Amplifier, Analog Interface
Valve Core Feedback Built-in Displacement Sensor (LVDT) Closed-Loop Control
Protection Rating IP65 (with standard plug) Dust and water resistant
Ambient Temperature: -20°C to +60°C
Oil Temperature: -20°C to +80°C
Vibration Resistance: 30g, Triaxial
Mechanical and Installation
Parameter Specification Description
Installation Standard ISO 4401 Size 03 (CETOP 03) Industry standard compatibility
Installation Method Flange Fixed Any Installation Position
Valve Body Material Steel Durable construction
Sealing NBR/FKM Oil-resistant and High-Temperature Resistant
Weight ≈2.5 kg Compact and lightweight
Power Off Position Spring Centering Safe Position
Supply and Warranty
  • Delivery Time: Regularly 8-12 weeks, some in stock
  • Warranty: 12 months from the manufacturer
  • Origin: USA / Germany
Core Advantages
Direct-acting Design: No pilot-stage leakage, dynamic response independent of oil supply pressure, strong anti-contamination capability.
Linear Force Motor: Bidirectional active drive, high thrust, overcomes flow and friction, precise positioning.
Built-in Electronic Closed-Loop: Real-time valve core position feedback, high control accuracy, low hysteresis, and good stability.
Low Power Consumption: Low current near the valve core center position, low standby power consumption.
Wide Operating Condition Adaptability: High pressure, wide temperature range, wide viscosity range, suitable for harsh industrial environments.
Easy Maintenance: No pilot filter, reduces maintenance points, long service life.
Typical Applications
  • Injection Molding Machines
  • Die Casting Machines
  • Hydraulic Presses
  • Material Testing Machines
  • Servo Testing Stands
  • Industrial Robots
  • Automated Production Lines
  • Metallurgical Equipment
  • Papermaking Machinery
  • Aerospace Testing Systems
