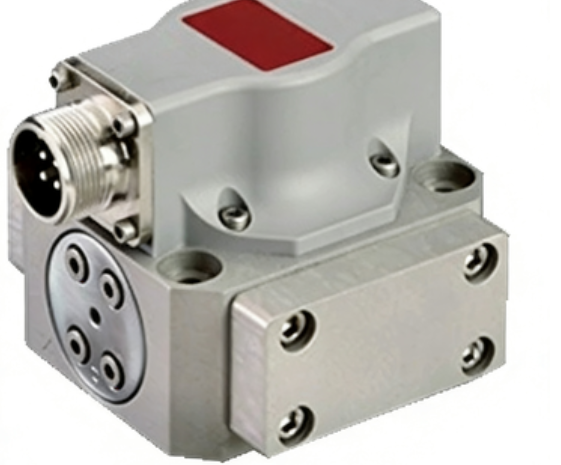

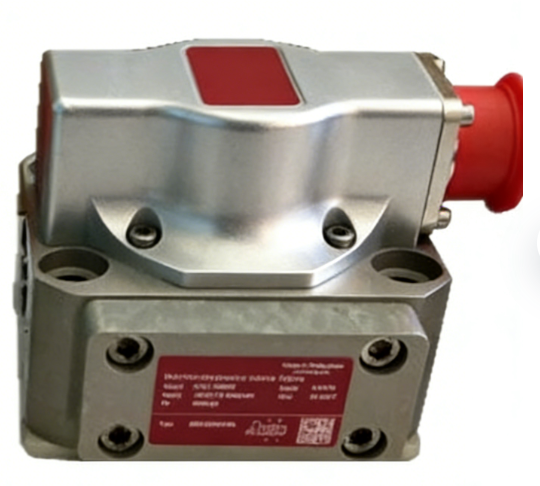

MOOG D661‑4539 Electro‑Hydraulic Servo Valve

📌 Product Overview

The MOOG D661‑4539 is a two‑stage pilot‑operated electro‑hydraulic servo valve adopting advanced ServoJet jet‑pipe pilot technology. It converts analog electrical command signals into precise, stepless hydraulic flow output. As the core control component of closed‑loop hydraulic systems, it realizes high‑accuracy position, velocity, pressure and force regulation for heavy‑duty industrial hydraulic equipment. With IP65 protection grade, it works stably under dusty, moist and harsh on‑site industrial environments, widely used for new‑build machine assembly and old‑equipment spare‑part replacement.

✨ Product Advantages

• ✅ ServoJet® Pilot Technology Jet‑pipe pilot structure delivers outstanding anti‑contamination capacity, low null drift and long service life, far more reliable than traditional nozzle‑flapper pilot valves in polluted hydraulic oil conditions.
• ✅ Ultra‑fast Dynamic Response Short 6.5‑14 ms 100% step response, supports high‑frequency closed‑loop control for fatigue test & vibration simulation equipment.
• ✅ IP65 Heavy‑Duty Protection Sealed electrical housing blocks dust and splash water, adapts to workshop on‑site installation without extra protective cabinet.
• ✅ Integrated On‑board Electronics Built‑in SMD drive amplifier, accepts multiple standard analog control signals, simplifies wiring and reduces external accessory failure points.
• ✅ High‑pressure & High‑flow Performance Max working pressure up to 350 bar (5000 PSI), optimized valve‑body for large flow output; optional fail‑safe functions for equipment safety protection under power‑off status.

📋 Technical Parameters

🏭 Application Industries & Scenarios

• Metal‑Forming & Metallurgy: Hydraulic presses, steel continuous‑casting equipment, rolling mill motion control
• Automotive Test Equipment: Component fatigue test benches, vehicle vibration simulation rigs
• Aerospace Simulation: Flight simulator hydraulic actuation systems
• Material & Fatigue Testing: Multi‑axis force‑loading test machines
• Heavy‑Duty Industrial Automation: Large‑scale injection‑blow molding machinery, hydraulic robot actuation units
• Power‑Generation Equipment: Turbine governing hydraulic control system
