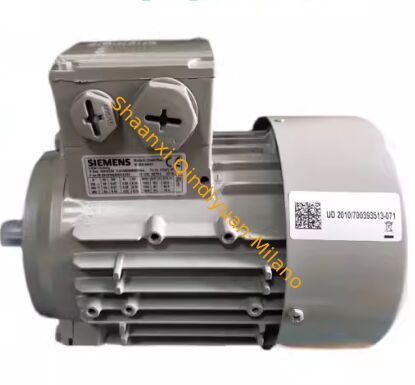

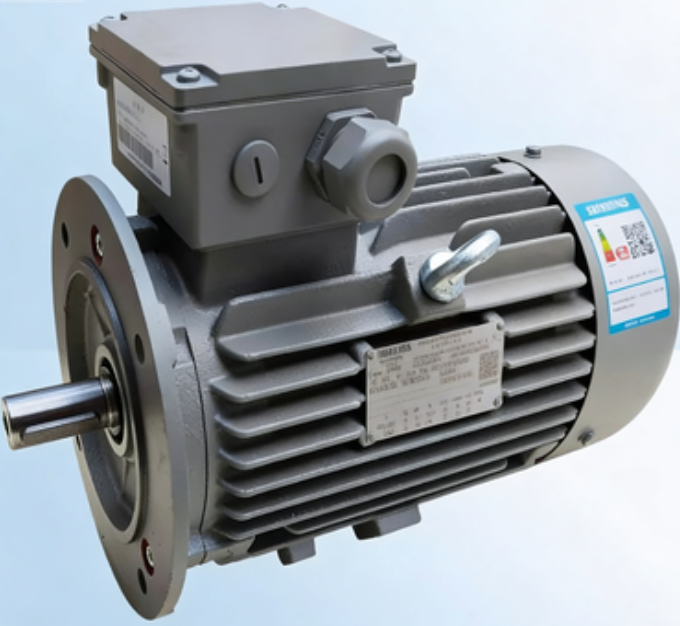

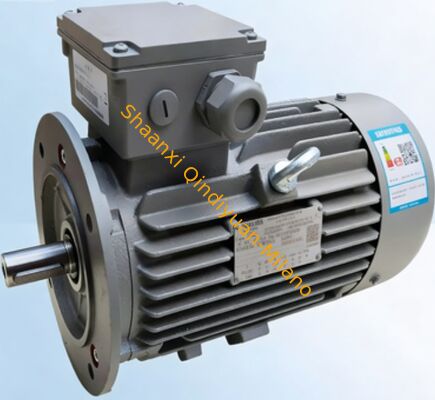

Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount

1pcs
MOQ
699USD/PCS
Price
Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount
Features Gallery Product Description Chat Now
Features
Specifications
Maximum Acceleration: 10G
Torque: 1.27 Nm
High Torque: Small Stepper Motor High Torque
Factory Outlet: Factory Outlet
Material: Steel
Shaft Type: Straight Shaft
Application: For Ardu
Operating Voltage: 3.3V-5V
Product Status: In Stock
Size: 90x29x42mm
Mounting Type: Flange Mount
Media Compatibility: Air, Gas, Water, Oil
Installation Method: Flange Type
Pressure: Low Pressure
Productgroup Id: 4,6
Highlight:

1LA7063-6AB12

,

Siemens Three Phase Induction Motor

,

3 Phase Induction Motor Flange Mount
Basic Infomation
Place of Origin: China
Brand Name: siemens
Model Number: 1LA7063-6AB12
Document: 1LA7063.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description

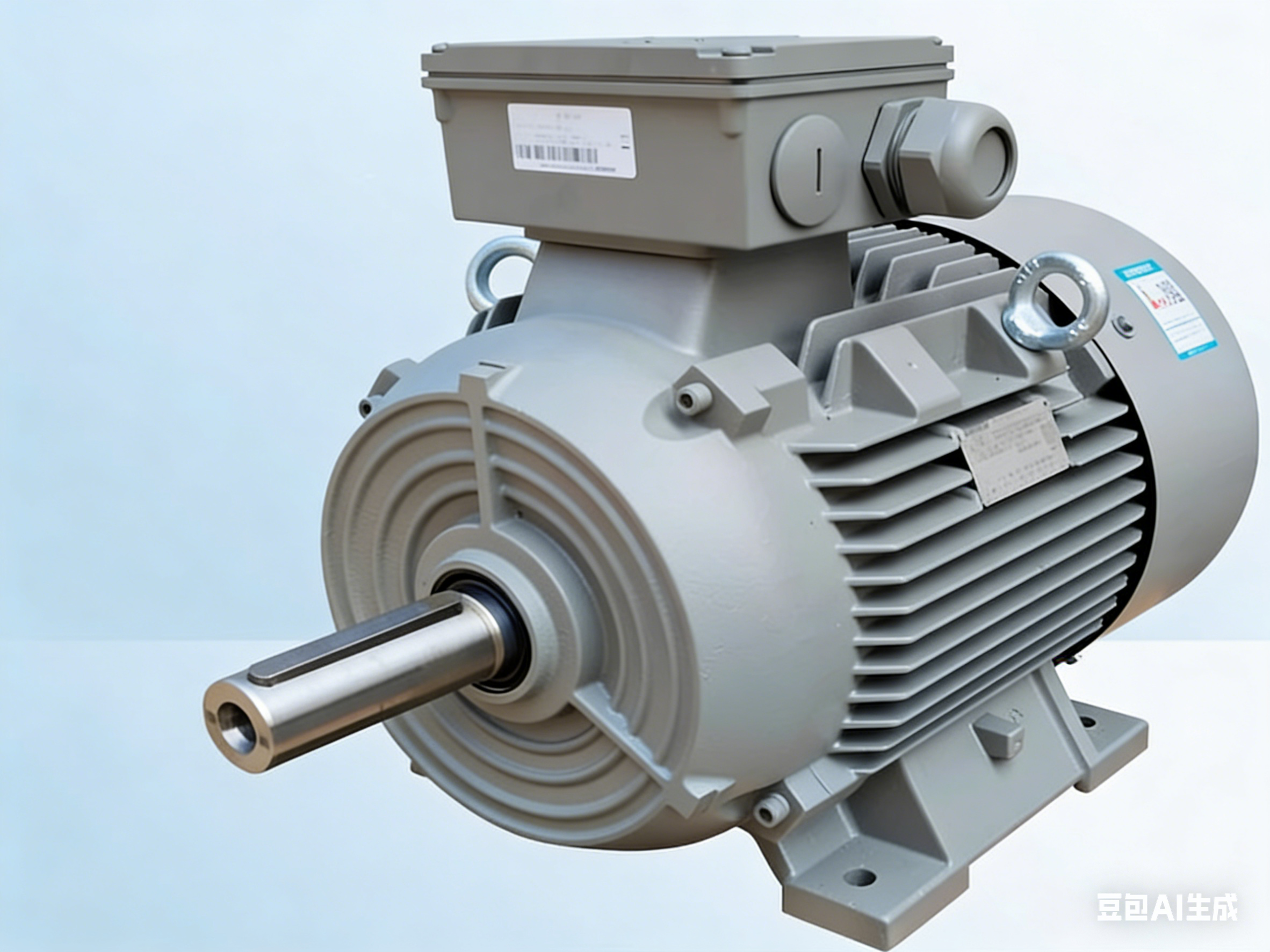

Siemens 1LA7063-6AB12 Three-Phase Induction Motor

Motor Specifications
General Specifications
Parameter Specification
Product Series SIMOTICS GP 1LA7
Motor Type 3-Phase Squirrel-Cage Induction Motor
Frame Size IEC 63M
Enclosure Material Aluminum
Protection Class IP55
Cooling Type Self-Ventilated (IC411)
Efficiency Class IE1 (EFF2)
Weight 4.0 kg
Electrical Specifications - 50 Hz Operation
Parameter Specification
Rated Power 0.18 kW
Rated Voltage 230 V Δ / 400 V Y
Rated Current 0.54 A
Rated Speed 1500 rpm
Rated Torque 1.15 Nm
Electrical Specifications - 60 Hz Operation
Parameter Specification
Rated Power 0.21 kW
Rated Voltage 460 V Y
Rated Speed 1800 rpm
Mechanical Specifications
Parameter Specification
Shaft Diameter 11 mm
Shaft Length 23 mm
Shaft Key 4 x 16 mm
Mounting Type IM B14 (Face)
Overall Length 202.5 mm
Thermal Specifications
Parameter Specification
Insulation Class 155 (F)
Temperature Rise 80 K
Standards & Features
Compliance: IEC 60034, IEC 60072
Motor Protection: Optional PTC Thermistors (A11)
Key Features
  • Dual frequency operation (50/60 Hz)
  • IP55 protection for dust and water resistance
  • Aluminum construction for lightweight durability
  • Self-ventilated cooling system (IC411)
  • Face mounting configuration (IM B14)
  • Optional thermal protection available
