Home /Products/Servo Systems/Siemens 1LA7063-2AA12 IM B14 Face Mount Motor Compatible With 50/60Hz Dual Frequency

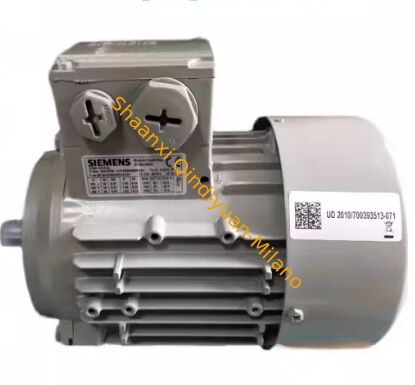

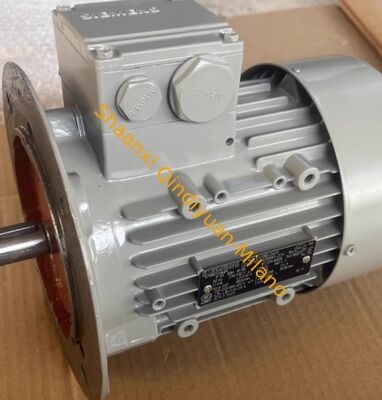

Siemens 1LA7063-2AA12 IM B14 Face Mount Motor Compatible With 50/60Hz Dual Frequency

1pcs
MOQ
288USD/PCS
Price
Siemens 1LA7063-2AA12 IM B14 Face Mount Motor Compatible With 50/60Hz Dual Frequency
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 90 X 100 X 75 Mm
Output Typt: Relay
Point: 14 (8DI+6DO)
Condition: New Original With Sealed
Power_Supply: 24 V DC
Actual Price: Negotiabled
Operating_Temperature: -20°C To 60°C
Mounting_Type: DIN Rail
Output Points: 24 Points.
Manufacturer: Siemens
Communication_Protocols: Ethernet, Profibus, Modbus
CPU_Speed: 100 MHz
Mpu Points: 12 (8DI + 4DO)
Part No: E-05B-EX1
Total Points: 60 Points.
Highlight:

1LA7063-2AA12

,

Siemens Face Mount Motor

,

Siemens IM B14 Motor
Basic Infomation
Place of Origin: China
Brand Name: siemens
Model Number: 1LA7063-2AA12
Document: 1LA7063.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Siemens 1LA7063-2AA12 Industrial Motor
High-performance 3-phase squirrel-cage induction motor featuring IM B14 face mounting, IP55 protection class, and aluminum casing with self-ventilated cooling (IC411). Designed for dual frequency operation at 50/60Hz.
Technical Specifications
Parameter Category Parameter Name 1LA7063-2AA10 (2-pole) 1LA7063-4AB10 (4-pole) 1LA7063-4AB12 (4-pole)
General Product Series SIMOTICS GP 1LA7 SIMOTICS GP 1LA7 SIMOTICS GP 1LA7
Product Type 3-Phase Squirrel-Cage Induction Motor 3-Phase Squirrel-Cage Induction Motor 3-Phase Squirrel-Cage Induction Motor
Frame Size IEC 63M IEC 63M IEC 63M
Enclosure Material Aluminum Aluminum Aluminum
Protection Class IP55 IP55 IP55
Cooling Type Self-Ventilated (IC411) Self-Ventilated (IC411) Self-Ventilated (IC411)
Efficiency Class IE1 (EFF2) IE1 (EFF2) IE1 (EFF2)
General Weight (kg) 4.0 4.0 4.0
Electrical - 50 Hz Rated Power (kW) 0.25 0.18 0.18
Rated Voltage 230 V Δ / 400 V Y 220-230 V Δ / 380-400 V Y 230 V Δ / 400 V Y
Rated Current (A) 0.70 0.54 0.54
Rated Speed (rpm) 2830 1500 1500
Rated Torque (Nm) 0.84 1.15 1.15
Electrical - 60 Hz Rated Power (kW) 0.29 0.21 0.21
Rated Voltage 460 V Y 440-480 V Y 460 V Y
Rated Speed (rpm) 3400 1800 1800
Mechanical Shaft Diameter (mm) 11 11 11
Shaft Length (mm) 23 23 23
Shaft Key (W x L, mm) 4 x 16 4 x 16 4 x 16
Mounting Type IM B3 (Foot) IM B3 (Foot) IM B14 (Face)
Mechanical Overall Length (mm) 232 202.5 202.5
Thermal Insulation Class 155 (F) 155 (F) 155 (F)
Temperature Rise 80 K 80 K 80 K
Standards Compliance IEC 60034, IEC 60072 IEC 60034, IEC 60072 IEC 60034, IEC 60072
Special Features Motor Protection None None Optional PTC Thermistors (A11)
Key Features
  • Aluminum casing for lightweight durability
  • IP55 protection against dust and water jets
  • Self-ventilated cooling system (IC411)
  • Dual frequency compatibility (50/60Hz)
  • Multiple mounting options available
  • Class F insulation (155°C)
  • Compliant with IEC 60034 and IEC 60072 standards
Note: Motor protection options vary by model. Consult specifications for available protection features.
