Honeywell HD660-T-0300-B Variable Frequency Drive with 30kW Power Modbus Communication and Sensorless Vector Control

1 pcs
MOQ
Negotiable
Price
Honeywell HD660-T-0300-B Variable Frequency Drive with 30kW Power Modbus Communication and Sensorless Vector Control
Features Gallery Product Description Chat Now
Features
Specifications
Input Voltage: 200-480 V AC
Output Frequency: 0-400 Hz
Acceleration/Deceleration Time: 0.1 To 6000 Seconds
Cooling Method: Forced Air Cooling
Overload Capacity: 150% Rated Current For 1 Minute
Communication Protocols: Modbus, Profibus, Ethernet/IP
Mounting Type: Wall-mounted, Panel-mounted
Ambient Temperature Range: -10°C To 50°C
Input Frequency: 50/60 Hz
Output Voltage: 0-480 V AC
Display Type: LED/LCD Display
Power Rating: 0.5 KW To 500 KW
Protection Class: IP20 To IP65
Harmonic Mitigation: Built-in Reactor Or Filter Options
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Highlight:

30kW Power Variable Frequency Drive

,

Modbus Communication VFD

,

Sensorless Vector Control Frequency Converter
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: HD660-T-0300-B
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

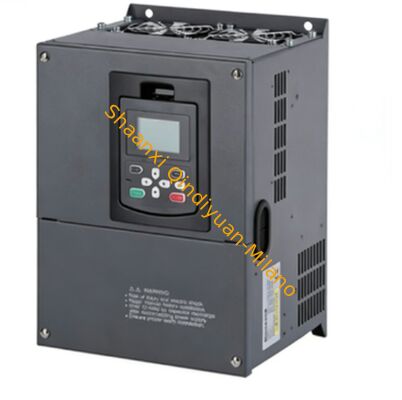

Honeywell HD660-T-0300-B Variable Frequency Drive
High-performance 30kW variable frequency drive designed for industrial applications with advanced control capabilities and robust protection features.
Technical Specifications
Model HD660-T-0300-B
Power Rating 30kW (40HP)
Input Voltage Three-phase AC 380V (±10%), 50/60Hz
Rated Current 60A (constant torque) / 63A (square torque)
Control Type Sensorless current vector control / V/F control
Compatible Motors Asynchronous motors, permanent magnet synchronous motors
Braking Unit Built-in (standard for ≤37kW)
Communication Standard Modbus-RTU (RS485); optional Profibus-DP, EtherCAT, EtherNet/IP
Protection Rating IP20 (wall-mounted)
Cooling Method Forced air cooling (independent air duct)
Dimensions (W×H×D) Approx. 210×400×220mm
Weight Approx. 12kg
Overload Capacity 150% 60s / 180% 3s (constant torque)
120% 60s / 150% 3s (square torque)
Key Features & Functions
  • Built-in PID controller for closed-loop constant voltage, current, and temperature control
  • 16 programmable speed settings with simple PLC functionality
  • Oscillation control and timed start/stop capabilities
  • Comprehensive protection: overcurrent, overvoltage, undervoltage, overheat, overload, phase loss, output short circuit
  • Wide speed range: 0–320Hz (vector) / 0–3200Hz (V/F)
  • Automatic voltage regulation (AVR) and speed tracking restart
  • Fast current limiting for enhanced motor protection
  • Multiple input options: potentiometer, 0–10V, 4–20mA analog signals
  • Independent cooling airflow and PCB reinforced coating for harsh environments
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
