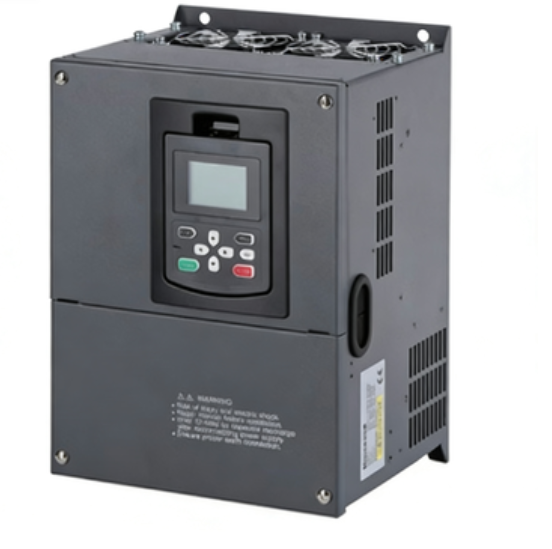

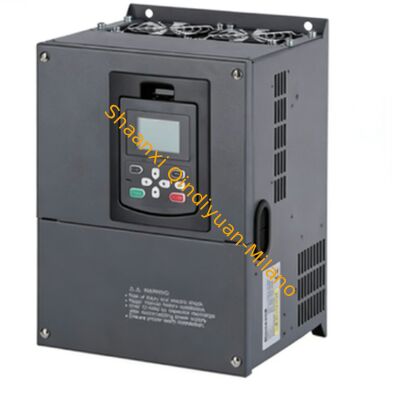

Honeywell HD660-T-0750-B 75KW Frequency Converter

1 pcs
MOQ
Negotiable
Price
Honeywell HD660-T-0750-B 75KW Frequency Converter
Features Gallery Product Description Chat Now
Features
Specifications
Communicationprotocols: Modbus, Profibus, Ethernet/IP, CANopen
Outputfrequency: 0 To 400 Hz Or Higher
Displaytype: LCD Or LED Display For Status And Parameter Settings
Inputvoltage: Typically 200-600V AC
Outputvoltage: Variable, Up To Input Voltage
Mountingtype: Wall-mounted, Panel-mounted, Or Standalone
Protectionfeatures: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Thermal Overload
Application: Pumps, Fans, Conveyors, HVAC, Industrial Machinery
Efficiency: Typically 95% To 98%
Function: Control Motor Speed And Torque By Varying Motor Input Frequency And Voltage
Controlmethod: V/f Control, Vector Control, Direct Torque Control
Productname: Variable Frequency Drive (VFD)
Powerrating: 0.5 KW To Several MW
Dimensions: Varies By Power Rating, Typically Compact Design
Coolingmethod: Air Cooled Or Liquid Cooled
Highlight:

Honeywell 75KW frequency converter

,

75KW VFD drive with warranty

,

Honeywell HD660 variable frequency drive
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: HD660-T-0750-B
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Honeywell HD660-T-0750-B 75KW Frequency Converter
High-performance industrial frequency converter designed for reliable variable speed control in demanding applications.
Electrical Specifications
Parameter Specification
Rated Output Power (Constant Torque) 75kW
Rated Output Current (Constant Torque) 150A
Rated Output Power (Square Torque) 90kW
Rated Output Current (Square Torque) 170A
Maximum Frequency Vector Control: 0~320Hz; V/F Control: 0~3200Hz
Carrier Frequency 1kHz~16kHz (Automatically Adjustable)
Starting Torque 0.5Hz/150% (No PG, Constant Torque)
Speed Range 1:100 (No PG)
Speed Stabilization Accuracy ±0.5% (No PG)
Overload Capacity Constant Torque: 150%/60s, 180%/3s; Square Torque: 120%/60s, 150%/3s
Control Power Supply 24VDC (Built-in)
Communication Interface Standard RS485, Supports Modbus-RTU (max 115200bps)
Protection Rating IP20 (Rack Mount)
Physical & Environmental Specifications
Parameter Specification
Dimensions (W × H × D) 200mm × 500mm × 260mm
Mounting Dimensions (Hole Spacing × Hole Diameter) 180mm × 480mm, Ø9mm
Net Weight Approx. 35kg
Gross Weight (with Packaging) Approx. 40kg
Packaging Dimensions 300mm × 600mm × 380mm
Cooling Method Forced Air Cooling (Independent Air Duct)
Ambient Temperature -20℃ to +50℃ (Derating required above 50℃)
Humidity ≤95% RH, Non-condensing
Altitude ≤1000m (Derating required above)
Functional Features
  • Control Functions: Built-in PID closed-loop, 16-speed settings, acceleration/deceleration curves, speed tracking restart, automatic voltage regulation (AVR), rapid current limiting, and continuous operation without interruption
  • I/O Configuration: 6 digital inputs (1 100kHz high-speed pulse), 2 analog inputs, 1 digital output, 1 relay output, and 1 analog output
  • Protection Functions: Comprehensive protection against motor short circuits, output phase loss, overcurrent, overvoltage, undervoltage, overheating, and overload
  • Environmental Compatibility: Coated PCB board, independent air duct, dust and oil resistant, no derating required up to 50℃
  • Structural Design: Compact standard design, suitable for medium to high power cabinet integration, easy installation
Typical Applications
Ideal for medium-sized fans, pumps, compressors, material handling equipment, textile machinery, packaging machinery, machine tools, and other three-phase 380V industrial variable speed drive applications. Adaptable to medium-load, continuous operation requirements.
