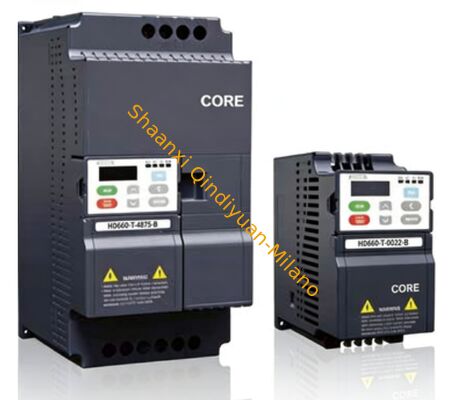

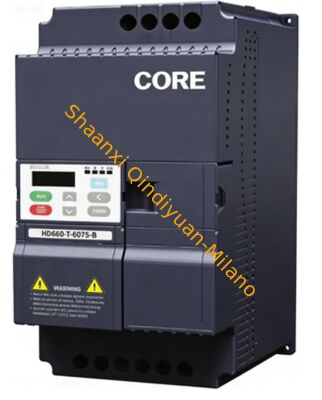

Honeywell HD660-T-2200-B 220kW Rated Output Power Frequency Converter with Modbus Communication and IP20 Protection

1 pcs
MOQ
Negotiable
Price
Honeywell HD660-T-2200-B 220kW Rated Output Power Frequency Converter with Modbus Communication and IP20 Protection
Features Gallery Product Description Chat Now
Features
Specifications
Communicationprotocols: Modbus, Profibus, Ethernet/IP, CANopen
Outputfrequency: 0 To 400 Hz Or Higher
Displaytype: LCD Or LED Display For Status And Parameter Settings
Inputvoltage: Typically 200-600V AC
Outputvoltage: Variable, Up To Input Voltage
Mountingtype: Wall-mounted, Panel-mounted, Or Standalone
Protectionfeatures: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Thermal Overload
Application: Pumps, Fans, Conveyors, HVAC, Industrial Machinery
Efficiency: Typically 95% To 98%
Function: Control Motor Speed And Torque By Varying Motor Input Frequency And Voltage
Controlmethod: V/f Control, Vector Control, Direct Torque Control
Productname: Variable Frequency Drive (VFD)
Powerrating: 0.5 KW To Several MW
Dimensions: Varies By Power Rating, Typically Compact Design
Coolingmethod: Air Cooled Or Liquid Cooled
Highlight:

220kW Rated Output Power Frequency Converter

,

Modbus Communication Variable Frequency Drive

,

IP20 Protection VFD
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: HD660-T-2200-B
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Honeywell HD660-T-2200-B Frequency Converter

High-performance industrial frequency converter designed for demanding applications with advanced control capabilities and robust protection features.

Core Electrical Parameters
Parameter Item Value / Specification
Rated Output Power (Constant Torque) 220kW
Rated Output Current (Constant Torque) 420A
Rated Output Power (Square Torque) 250kW
Rated Output Current (Square Torque) 470A
Maximum Frequency Vector Control: 0~320Hz; V/F Control: 0~3200Hz
Carrier Frequency 1kHz~16kHz (Automatically Adjustable)
Starting Torque 0.5Hz/150% (No PG, Constant Torque)
Speed Range 1:100 (No PG)
Speed Stabilization Accuracy ±0.5% (No PG)
Overload Capacity Constant Torque: 150%/60s, 180%/3s; Square Torque: 120%/60s, 150%/3s
Control Power Supply 24VDC (Built-in)
Communication Interface Standard RS485, Supports Modbus-RTU (maximum 115200bps)
Protection Rating IP20 (Rack Mount)
Physical and Logistics Parameters
Parameter Item Value
Dimensions (Width × Height × Depth) 300mm × 1035mm × 500mm
Installation Dimensions (A×B×Aperture) A1: 220mm, A2: 150mm; E1: 220mm, E2: 450mm; Ø13mm
Cooling Method Forced Air Cooling (Independent Air Duct)
Ambient Temperature -20℃~+50℃ (Derating required above 50℃)
Humidity ≤95% RH, Non-condensing
Altitude ≤1000m (Derating required above)
Functional Characteristics
  • Control Functions: Built-in PID Closed-Loop, 16-Speed, Acceleration/deceleration curves, speed tracking restart, automatic voltage regulation (AVR), fast current limiting, and continuous operation without interruption of power
  • I/O Configuration: 6 digital inputs (1 100kHz high-speed pulse input), 2 analog inputs, 1 digital output, 1 relay output, and 1 analog output
  • Protection Functions: Comprehensive protection against motor short circuits upon power-on, output phase loss, overcurrent, overvoltage, undervoltage, overheating, and overload
  • Environmental Compatibility: Coated PCB board, independent air duct, dust and oil resistant, no derating required up to 50℃
  • Structural Design: Compact book-style design, saving installation space, suitable for high-power rack integration
