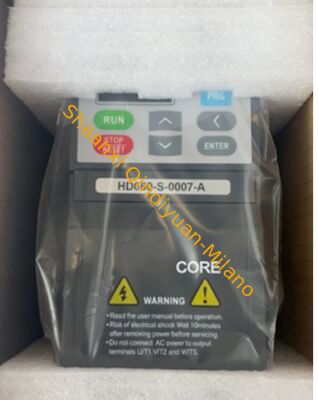

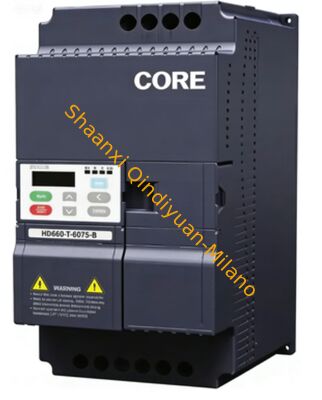

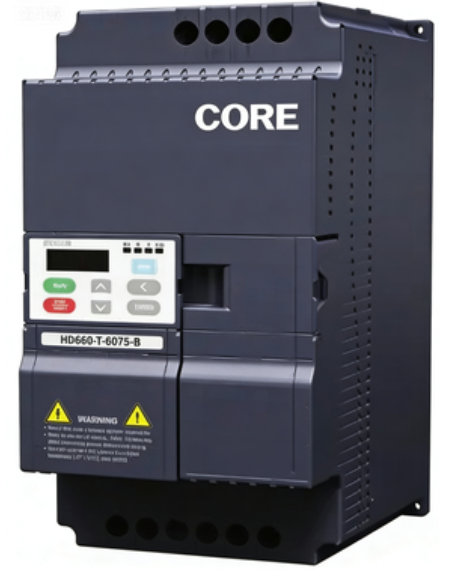

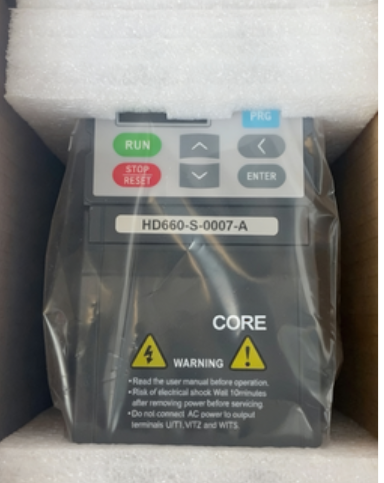

Honeywell HD660-T-0022-B Frequency Converter

1 pcs
MOQ
Negotiable
Price
Honeywell HD660-T-0022-B Frequency Converter
Features Gallery Product Description Chat Now
Features
Specifications
Harmonic Mitigation: Built-in DC Choke Or External Filter
Protection Class: IP20 To IP54
Output Frequency: 0-400 Hz
Storage Temperature Range: -20°C To 70°C
Communication Protocols: Modbus, Profibus, Ethernet/IP
Power Rating: 0.5 KW To 500 KW
Input Voltage: 200-480 V AC
Braking Method: Regenerative Braking Or Dynamic Braking Resistor
Overload Capacity: 150% Rated Current For 1 Minute
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Output Voltage: 0-480 V AC
Mounting Type: Wall-mounted Or Panel-mounted
Display Type: LCD Or LED Display
Operating Temperature Range: -10°C To 50°C
Cooling Method: Forced Air Cooling
Highlight:

Honeywell HD660 frequency converter

,

variable frequency drive VFD

,

Honeywell HD660-T-0022-B drive
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: HD660-T-0022-B
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 100000 pcs
Product Description
Honeywell HD660-T-0022-B Frequency Converter
Core Electrical Specifications
Parameter Specification
Rated Output Power (Constant Torque) 2.2kW
Rated Output Current (Constant Torque) 5.5A
Rated Output Power (Square Torque) 2.2kW
Rated Output Current (Square Torque) 5.5A
Maximum Frequency Vector Control: 0~320Hz; V/F Control: 0~3200Hz
Carrier Frequency 1kHz~16kHz (Automatically Adjustable)
Starting Torque 0.5Hz/150% (No PG, Constant Torque)
Speed Range 1:100 (No PG)
Speed Stabilization Accuracy ±0.5% (No PG)
Overload Capacity Constant Torque: 150%/60s, 180%/3s; Square Torque: 120%/60s, 150%/3s
Control Power Supply 24VDC (Built-in)
Communication Interface Standard RS485, Supports Modbus-RTU (max 115200bps)
Protection Rating IP20 (Rack Mount)
Physical and Logistics Specifications
Parameter Value
Dimensions (Width × Height × Depth) 100mm × 183mm × 143mm
Mounting Dimensions (Hole Spacing × Hole Diameter) 90mm × 173mm, Ø5mm
Net Weight Approx. 2.8kg
Gross Weight (Including Standard Packaging) Approx. 3.5kg
Packaging Dimensions 180mm × 150mm × 120mm
Cooling Method Forced Air Cooling (Independent Air Duct)
Ambient Temperature -20℃~+50℃ (Derating required above 50℃)
Functional Characteristics
  • Control Functions: Built-in PID closed-loop, 16-speed, S-curve acceleration/deceleration, speed tracking restart, automatic voltage regulation (AVR), fast current limiting
  • I/O Configuration: 6 digital inputs (1 supporting 100kHz high-speed pulse), 2 analog inputs, 1 digital output, 1 relay output, and 1 analog output
  • Comprehensive Protection: Power-on motor short-circuit detection, output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, and overload protection
  • Environmental Compatibility: PCB coated board, independent air duct, dust and oil resistant, no derating required up to 50℃
Typical Applications
Suitable for general-purpose variable speed drive scenarios with three-phase 380V power supply, including material handling, packaging machinery, textile machinery, small machine tools, fans, and water pumps. Particularly ideal for industrial automation equipment requiring high control precision and stability.
