Home /Products/Variable Frequency Drives VFD/ABB 1SFA898120R700 softstarter PSTX105-600-70 has a rated maximum operational current of 105 A with an operating voltage span from 208...600 V AC

ABB 1SFA898120R700 softstarter PSTX105-600-70 has a rated maximum operational current of 105 A with an operating voltage span from 208...600 V AC

1
MOQ
Negotiable
Price
ABB 1SFA898120R700 softstarter PSTX105-600-70 has a rated maximum operational current of 105 A with an operating voltage span from 208...600 V AC
Features Gallery Product Description Chat Now
Features
Specifications
Output Voltage: 0-480V AC
Input Frequency: 50/60 Hz
Power Rating: 0.5 KW To 500 KW
Output Frequency: 0-400 Hz
Display Type: LCD Or LED
Mounting Type: Wall-mounted Or Panel-mounted
Input Voltage: 200-480V AC
Overload Capacity: 150% For 1 Minute
Acceleration/Deceleration Time: 0.1 To 6000 Seconds
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Operating Temperature Range: -10°C To 50°C
Protection Class: IP20 To IP54
Communication Protocols: Modbus, Profibus, Ethernet/IP
Cooling Method: Forced Air Cooling
Harmonic Mitigation: Built-in DC Reactor Or External Filter
Highlight:

ABB PSTX105 softstarter 105A

,

softstarter 208-600V AC

,

VFD softstarter with warranty
Basic Infomation
Place of Origin: china
Brand Name: ABB
Model Number: 1SFA898120R700
Document: Softstarter_panorama_PSTrev...vF.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

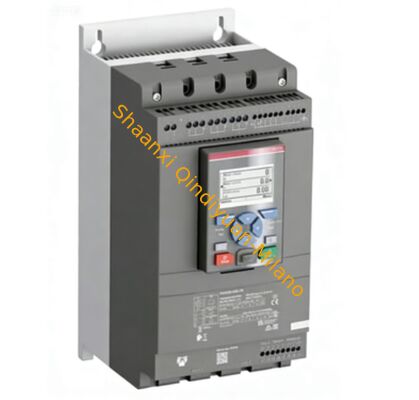

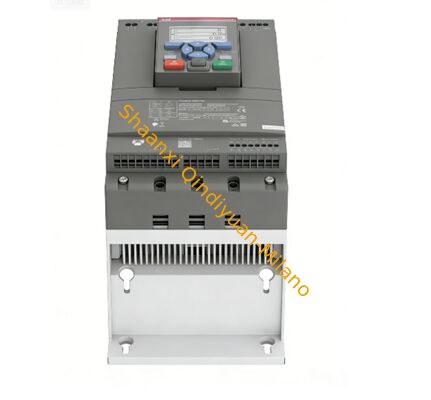

ABB PSTX105-600-70 Softstarter
The ABB 1SFA898120R700 PSTX105-600-70 softstarter delivers reliable motor control with a rated operational current of 105 A and operating voltage range of 208-600 V AC.
Ordering Information
Minimum Order Quantity1 piece
Customs Tariff Number85371091
Technical Documentation
Data Sheet & Technical InformationSoftstarter main catalog
Quick Start GuidePSTX quick start guide
Installation & CommissioningPSTX installation and commissioning manual
Technical HandbookSoftstarter Handbook
CAD Files2D and 3D files for CAD systems
EPLAN DataEPLAN EDZ PSTX105
Physical Dimensions
Width150 mm
Height314 mm
Depth/Length198 mm
Weight4.7 kg
Electrical Specifications
Rated Operational Voltage208-600 V AC
Rated Control Supply Voltage100-250 V AC
Rated Control Circuit Voltage24 V DC
Rated Frequency50/60 Hz
Power Ratings - In-Line Connection
230 V30 kW
400 V55 kW
500 V75 kW
Rated Operational Current105 A
Power Ratings - Inside Delta Connection
230 V55 kW
400 V90 kW
500 V110 kW
Rated Operational Current181 A
Control & Protection Features
Service Factor100%
Overload ProtectionBuilt-in electronic overload protection
Starting Capacity4xIe for 10s
Ramp Time1-120 seconds
Initial Voltage10-99%
Current Limit Function1.5-7.5 xIe
Relay Outputs
Run Signal RelayYes
By-pass Signal RelayYes
Fault Signal RelayYes
Overload Signal RelayYes
Signal Indicators & Communication
Ready to Start/StandbyGreen LED
RunningGreen LED
ProtectionYellow LED
FaultRed LED
Analog Outputs0-10 V, 0-20 mA, 4-20 mA
Communication ProtocolsModbus-RTU/TCP, Ethernet-IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet, BACnet-IP/MSTP
Protection Functions
  • Bypass open protection
  • Current imbalance protection
  • Current underload protection
  • Dual overload (separate for start and run)
  • Earth fault / ground fault protection
  • Electronic overload protection (EOL)
  • Extension IO failure protection
  • Fieldbus failure protection
  • HMI failure protection
  • Locked rotor protection
  • Maximum starts per hour limitation
  • Over voltage protection
  • Phase reversal protection
  • Power factor underload protection
  • PT-100 / PTC connection
  • Too long current limit protection
  • Too long start time protection
  • Under voltage protection
  • User defined protection
  • Voltage imbalance protection
Warning Systems
  • Current imbalance warning
  • Current underload warning
  • Electronic overload time-to-trip
  • EOL warning
  • Faulty fan warning
  • Locked rotor warning
  • Motor runtime limit warning
  • Over voltage warning
  • Phase loss warning (for standby)
  • Power factor underload warning
  • Short circuit warning (for Limp mode)
  • THD(U) - Total Harmonic Distortion warning
  • Thyristor overload warning (SCR)
  • Under voltage warning
  • Voltage imbalance warning
Additional Features
  • Auto phase sequence detection
  • Automatic restart
  • Current limit
  • Current limit ramp
  • Dual current limit
  • Dynamic brake
  • Electricity metering
  • Electronic overload time-to-cool
  • Emergency mode
  • Event log
  • Inside delta connection switch
