ABB 1SFA898214R7000 softstarter PSTX 300-690-70 has a rated maximum operational current of 300 A with an operating voltage span from 208...690 V AC

1
MOQ
Negotiable
Price
ABB 1SFA898214R7000 softstarter PSTX 300-690-70 has a rated maximum operational current of 300 A with an operating voltage span from 208...690 V AC
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: Wall-mounted Or Panel-mounted
Output Voltage: 0-480 V AC
Acceleration/Deceleration Time: 0.01 To 6000 Seconds
Display Type: LCD Or LED
Protection Class: IP20 To IP54
Output Frequency: 0-400 Hz
Input Voltage: 200-480 V AC
Harmonic Mitigation: Built-in Filters Or External Filters
Ambient Temperature Range: -10°C To 50°C
Input Frequency: 50/60 Hz
Power Rating: 0.5 KW To 500 KW
Communication Protocols: Modbus, Profibus, Ethernet/IP
Cooling Method: Forced Air Cooling
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Overload Capacity: 150% For 1 Minute
Highlight:

ABB PSTX softstarter 300A

,

PSTX softstarter 208-690V

,

VFD softstarter with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: 1SFA898214R7000
Document: Softstarter_panorama_PSTrev...vF.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYA
Payment Terms: T/T
Product Description

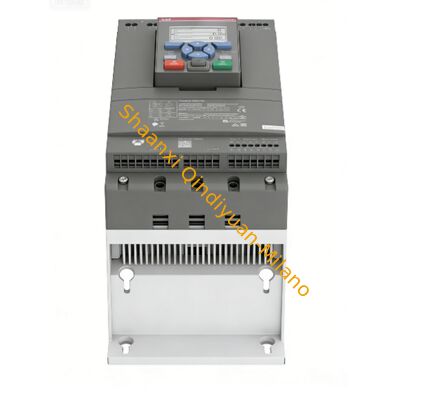

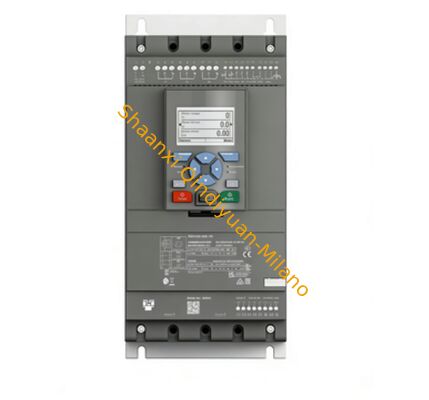

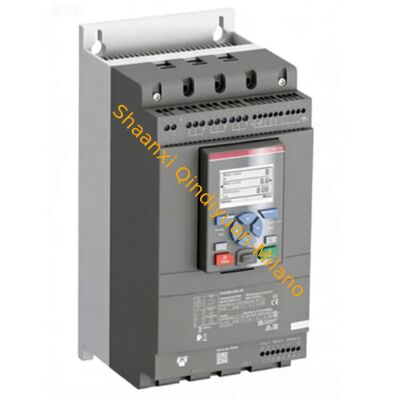

ABB PSTX300 Softstarter
The ABB 1SFA898214R7000 PSTX 300-690-70 softstarter delivers reliable motor control with a rated operational current of 300 A and operating voltage range from 208-690 V AC.
Ordering Information
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85371091
Technical Documentation
Data Sheet: Softstarter main catalog
Quick Start Guide: PSTX quick start guide
Installation Manual: PSTX - Installation and commissioning manual
Technical Handbook: Softstarter Handbook
CAD Files: 2D and 3D files for CAD systems
EPLAN Data: EPLAN EDZ PSTX300
Physical Dimensions
Width 258 mm
Height 470 mm
Depth/Length 279 mm
Weight 15.5 kg
Electrical Specifications
Rated Operational Voltage 208-690 V AC
Control Supply Voltage 100-250 V AC
Control Circuit Voltage 24 V DC
Frequency 50/60 Hz
Power Ratings - In-Line Connection
Voltage Power Current
230 V 90 kW 300 A
400 V 160 kW 300 A
500 V 200 kW 300 A
690 V 257 kW 300 A
Power Ratings - Inside Delta Connection
Voltage Power Current
230 V 160 kW 515 A
400 V 257 kW 515 A
500 V 355 kW 515 A
690 V 500 kW 515 A
Control & Performance Features
Service Factor 100%
Overload Protection Built-in electronic overload protection
Starting Capacity 4xIe for 10s
Ramp Time 1-120 seconds
Initial Start Voltage 10-99%
Current Limit 1.5-7.5 xIe
Signal & Communication
Signal Relays Run, By-pass, Fault, Overload
Analog Outputs 0-10 V, 0-20 mA, 4-20 mA
LED Indicators Ready (Green), Running (Green), Protection (Yellow), Fault (Red)
Communication Protocols Modbus-RTU/TCP, Ethernet-IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet, BACnet-IP/MSTP
Key Functions
  • Auto phase sequence detection
  • Automatic restart
  • Current limit with dual current limit capability
  • Dynamic brake function
  • Electricity metering
  • Electronic overload with Time-to-cool
  • Emergency mode operation
  • Event logging
Protection Functions
  • Bypass open protection
  • Current imbalance and underload protection
  • Dual overload (separate for start and run)
  • Earth fault / ground fault protection
  • Electronic overload protection (EOL)
  • Extension IO, Fieldbus, and HMI failure protection
  • Locked rotor protection
  • Maximum starts per hour limitation
  • Over voltage and under voltage protection
  • Phase reversal protection
  • Power factor underload protection
  • PT-100 and PTC connection support
  • User defined protection capabilities
Warning System
  • Current imbalance and underload warnings
  • Electronic overload Time-to-trip monitoring
  • EOL and faulty fan warnings
  • Locked rotor and motor runtime limit warnings
  • Over voltage and under voltage warnings
  • Phase loss warning (standby mode)
  • Power factor underload warning
  • Short circuit warning (Limp mode)
  • THD(U) - Total Harmonic Distortion warning
  • Thyristor overload warning (SCR)
Construction Details
Degree of Protection IP00 (Main Terminals)
Terminal Type Main Circuit: Bars
Main Circuit Connection Hole Diameter 8.5 mm
Control Circuit Connection Rigid 1 x 2.5 mm²
Tightening Torque Main Circuit 25 N·m
Product Type PSTX300
