ABB 1SFA898215R7000 softstarter PSTX370-690-70 has a rated maximum operational current of 370 A with an operating voltage span from 208...690 V AC

1
MOQ
Negotiable
Price
ABB 1SFA898215R7000 softstarter PSTX370-690-70 has a rated maximum operational current of 370 A with an operating voltage span from 208...690 V AC
Features Gallery Product Description Chat Now
Features
Specifications
Communication Protocols: Modbus, Profibus, Ethernet/IP
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Mounting Type: Wall-mounted Or Panel-mounted
Ambient Temperature Range: -10°C To 50°C
Cooling Method: Forced Air Cooling (Fan)
Display Type: LED Or LCD Display
Output Frequency: 0-400 Hz
Input Frequency: 50/60 Hz
Input Voltage: 200-480V AC
Overload Capacity: 150% For 1 Minute
Power Rating: 0.5 KW To 500 KW
Protection Class: IP20, IP54, Or IP65
Acceleration/Deceleration Time: 0.1 To 6000 Seconds
Harmonic Mitigation: Built-in DC Reactor Or External Filters
Output Voltage: 0-480V AC
Highlight:

ABB PSTX370 softstarter 370A

,

PSTX370-690-70 softstarter 690V AC

,

ABB softstarter with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: 1SFA898215R7000
Document: Softstarter_panorama_PSTrev...vF.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description

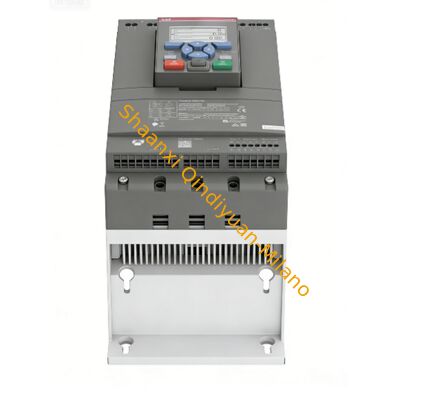

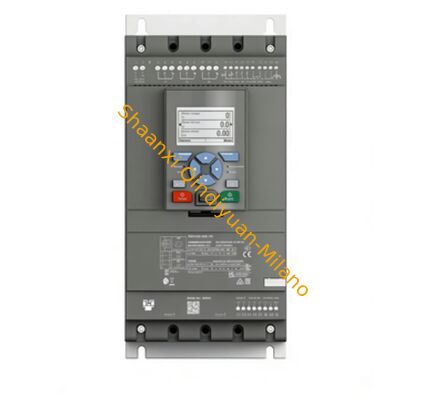

ABB PSTX370-690-70 Softstarter

Industrial softstarter with rated operational current of 370 A and operating voltage range of 208-690 V AC. Designed for reliable motor control and protection in demanding applications.

Ordering Information
Minimum Order Quantity1 piece
Customs Tariff Number85371091
Technical Documentation
Data Sheet, Technical InformationSoftstarter main catalog
Quick Start GuidePSTX quick start guide
Installation ManualPSTX - Installation and commissioning manual
Technical HandbookSoftstarter Handbook
CAD Dimensional Drawing2D and 3D files for CAD systems
EPLAN DataEPLAN EDZ PSTX370
Wiring DiagramN/A
Physical Dimensions
Width
258 mm
Height
470 mm
Depth/Length
279 mm
Weight
15.5 kg
Electrical Specifications
Rated Operational Voltage208 ... 690 V AC
Rated Control Supply Voltage (Us)100 ... 250 V AC
Rated Control Circuit Voltage (Uc)24 V DC
Rated Frequency (f)50/60 Hz
Main Circuit Performance
Rated Operational Current (In-Line)370 A
Rated Operational Current (Inside Delta)640 A
Service Factor100%
Overload ProtectionBuilt-in electronic overload protection
Starting Capacity4xIe for 10s
Ramp Time1 ... 120 seconds
Initial Start Voltage10 ... 99%
Current Limit Function1.5 ... 7.5 xIe
Power Ratings
In-Line Connection
230 V110 kW
400 V200 kW
500 V257 kW
690 V355 kW
Inside Delta Connection
230 V200 kW
400 V355 kW
500 V450 kW
690 V600 kW
Control & Communication
Switch for Inside Delta ConnectionYes
Run Signal RelayYes
By-pass Signal RelayYes
Fault Signal RelayYes
Overload Signal RelayYes
Analog Outputs0…10 V, 0…20 mA, 4…20 mA
Communication ProtocolsModbus-RTU, Modbus-TCP, Ethernet-IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet, BACnet-IP, BACnet-MSTP
Status Indicators
Ready to Start/Standby ONGreen LED
RunningGreen LED
ProtectionYellow LED
FaultRed LED
Key Functions
  • Auto phase sequence detection
  • Automatic restart
  • Current limit and current limit ramp
  • Dual current limit
  • Dynamic brake
  • Electricity metering
  • Electronic overload Time-to-cool
  • Emergency mode
  • Event log
Protection Functions
  • Bypass open protection
  • Current imbalance and underload protection
  • Dual overload (separate for start and run)
  • Earth fault / ground fault protection
  • Electronic overload protection (EOL)
  • Locked rotor protection
  • Over voltage and under voltage protection
  • Phase reversal protection
  • Voltage imbalance protection
Warning Systems
  • Current imbalance and underload warnings
  • Electronic overload Time-to-trip
  • Faulty fan warning
  • Locked rotor warning
  • Motor runtime limit warning
  • Over voltage and under voltage warnings
  • Phase loss warning (for standby)
  • Thyristor overload warning (SCR)
  • Voltage imbalance warning
