ABB 1SFA896114R7000 softstarter PSR85-600-70 has a rated maximum operational current of 85 A with an operating voltage span from 208...600 V AC

1
MOQ
Negotiable
Price
ABB 1SFA896114R7000 softstarter PSR85-600-70 has a rated maximum operational current of 85 A with an operating voltage span from 208...600 V AC
Features Gallery Product Description Chat Now
Features
Specifications
Cooling Method: Forced Air Cooling
Protection Class: IP20 To IP66
Output Voltage: 0-480 V AC
Display Type: LCD Or LED
Input Voltage: 200-480 V AC
Harmonic Mitigation: Built-in Filters Or External Options
Operating Temperature Range: -10°C To 50°C
Overload Capacity: 150% For 1 Minute
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Output Frequency Range: 0-400 Hz
Storage Temperature Range: -20°C To 70°C
Power Rating: 0.5 KW To 500 KW
Communication Protocols: Modbus, Profibus, Ethernet/IP
Weight: Varies By Model
Dimensions: Varies By Model
Highlight:

ABB PSR85 softstarter 85A

,

PSR85-600-70 softstarter 600V

,

ABB softstarter with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: 1SFA896114R7000
Document: Softstarter_panorama_PSTrev...vF.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description

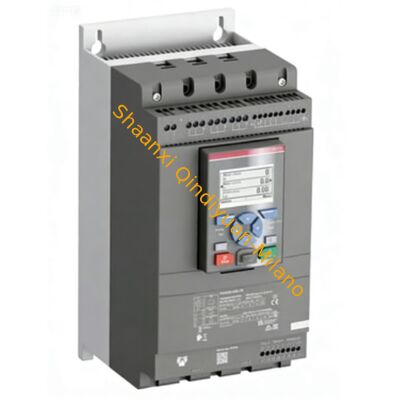

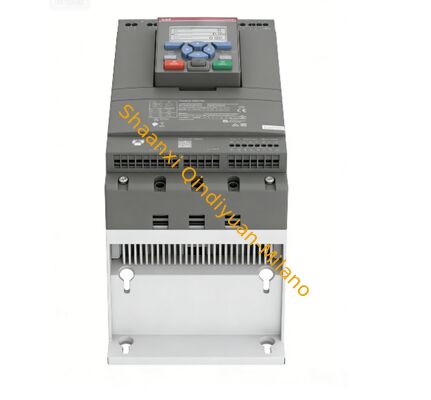

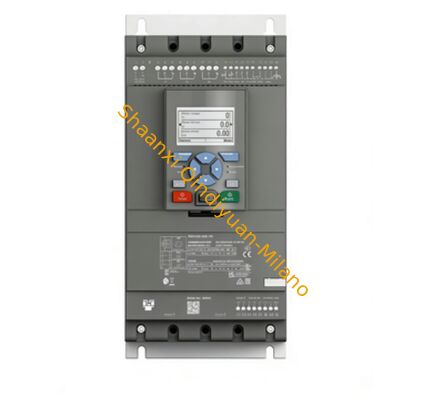

ABB PSR85-600-70 Softstarter
Rated maximum operational current: 85 A | Operating voltage: 208-600 V AC
Ordering Information
Minimum Order Quantity1 piece
Customs Tariff Number85371091
Technical Downloads
  • Data Sheet, Technical Information: Softstarter main catalog
  • Instructions and Manuals: Softstarter PSR60 ... PSR105 for 100 - 240V
  • Instructions and Manuals (Part 3): Softstarter Handbook
  • CAD Dimensional Drawing: Information - 2D and 3D files for CAD systems
  • EPLAN Data: EPLAN EDZ PSR85
  • Wiring Diagram: N/A
Physical Dimensions
Width70 mm
Height220 mm
Depth / Length180 mm
Weight2.1 kg
Technical Specifications
Rated Operational Voltage208 ... 600 V AC
Rated Control Supply Voltage (Us)100 ... 240 V AC
Rated Control Circuit Voltage (Uc)24 V DC
Rated Frequency (f)50/60 Hz Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe)(230 V) 22 kW (400 V) 45 kW (500 V) 55 kW
Rated Operational Current - In-Line Connection (Ie)85 A
Service Factor Percentage100 %
Overload ProtectionRecommended MS495 70 ... 90
Integrated Electronic OverloadNo
Starting Capacity at Maximum Rated Current Ie4xIe for 6s
Ramp Time0 ... 20 second [unit of time] 1 ... 10 second [unit of time]
Initial Voltage During Start40 ... 70 %
Step Down Voltage Special Ramp100 ... 60 %
Current Limit FunctionNo
Switch for Inside Delta ConnectionNo
Run Signal RelayYes
By-pass Signal RelayYes
Fault Signal RelayNo
Overload Signal RelayNo
Signal Indication Completed Start Ramp (LED)Green
Signal Indication Ready to Start/Standby ON (LED)Green
Signal Indication Running R (LED)Green
Signal Indication Ramping Up/Down (LED)Green
Number of Starts Per Hour10
CommunicationFiledBusPlug(Optional)
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal TypeMain Circuit: Bars
Connecting Capacity Main CircuitRigid 1x 10 ... 95 mm² Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit1 x 0.75 ... 2.5 mm² 2 x 0.75 ... 2.5 mm² Rigid 1 x 0.75 ... 2.5 mm² Rigid 2 x 0.75 ... 1.5 mm²
Connecting Capacity Supply CircuitRigid 1 x 0.75 ... 2.5
Tightening TorqueControl Circuit 0.6 N·m Main Circuit 8 N·m Supply Circuit 0.6 N·m
Product Main TypePSR85
FunctionSoft start with voltage ramp Soft stop with voltage ramp
UL/CSA Specifications
Horsepower Rating UL/CSA(200 ... 208 V AC) Three Phase 25 Hp (220 ... 240 V AC) Three Phase 30 Hp (440 ... 480 V AC) Three Phase 60 Hp (550 ... 600 V AC) Three Phase 75 Hp
Maximum Operating Voltage UL/CSAMain Circuit 600 V
Tightening Torque UL/CSAControl Circuit 5.3 in·lb Main Circuit 70.8 Supply Circuit 5.3 in·lb
Environmental Conditions
Ambient Air TemperatureOperation -25 ... +60 °C Storage -40 ... +70 °C
Material Compliance
  • Conflict Minerals Reporting Template (CMRT): CMRT - Conflict Minerals Reporting Template
  • REACH Declaration: REACh Declaration for all Softstarters
  • RoHS Declaration: RoHS II Declaration for all Softstarters
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: Toxic Substances Control Act (TSCA) declaration for Softstarters
  • WEEE B2C / B2B: Business To Business
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
  • CQC Certificate: CQC Certificate, Softstarters, PSR60-600-70,PSR72-600-70,PSR85-600-70,PSR105-600-70,PSRC60-600-70,PSRC72-600-70,PSRC85-600-70,PSRC105-600-70,PSR60-600-11,PSR72-600-11,PSR85-600-11,PSR105-600-11,PSRC60-600-11,PSRC72-600-11,PSRC85-600-11,PSRC105-600-11, Made in China
  • Declaration of Conformity - CCC: CCC Declaration of Conformity, Softstarters, PSR60-600-70,PSR72-600-70,PSR85-600-70,PSR105-600-70,PSRC60-600-70,PSRC72-600-70,PSRC85-600-70,PSRC105-600-70,PSR60-600-11,PSR72-600-11,PSR85-600-11,PSR105-600-11,PSRC60-600-11,PSRC72-600-11,PSRC85-600-11,PSRC105-600-11, Made in China
  • Declaration of Conformity - CE: 2CMT003878
