Home /Products/Variable Frequency Drives VFD/ABB 1SFA898111R7000 softstarter PSTX170-600-70 has a rated maximum operational current of 170 A with an operating voltage span from 208...600 V A

ABB 1SFA898111R7000 softstarter PSTX170-600-70 has a rated maximum operational current of 170 A with an operating voltage span from 208...600 V A

1
MOQ
Negotiable
Price
ABB 1SFA898111R7000 softstarter PSTX170-600-70 has a rated maximum operational current of 170 A with an operating voltage span from 208...600 V A
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: Wall-mounted Or Panel-mounted
Input Voltage: 200-480 V AC
Operating Temperature Range: -10°C To 50°C
Protection Features: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overheating
Output Voltage: 0-480 V AC
Display Type: LCD Or LED Display
Harmonic Mitigation: Built-in Or External Filters
Overload Capacity: 150% For 1 Minute
Acceleration/Deceleration Time: 0.1 To 6000 Seconds
Cooling Method: Forced Air Cooling
Output Frequency: 0-400 Hz
Power Rating: 0.5 KW To 500 KW
Communication Protocols: Modbus, Profibus, Ethernet/IP
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Enclosure Rating: IP20, IP54, IP65 Options
Highlight:

ABB PSTX170 softstarter 170A

,

softstarter 208-600V operating voltage

,

VFD softstarter with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: 1SFA898111R7000
Document: Softstarter_panorama_PSTrev...vF.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

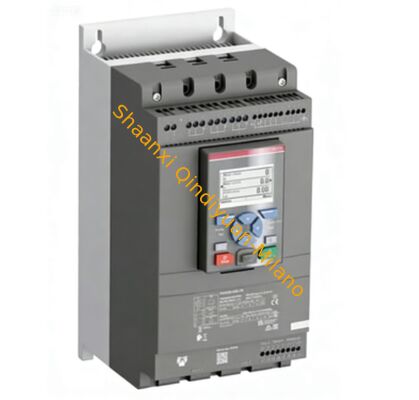

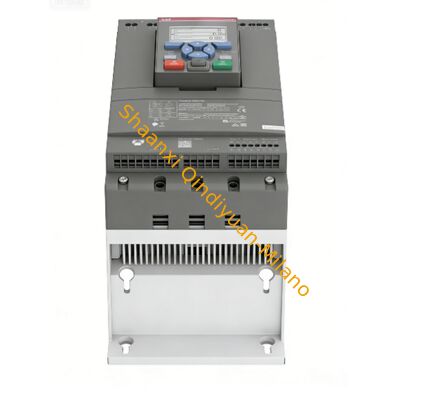

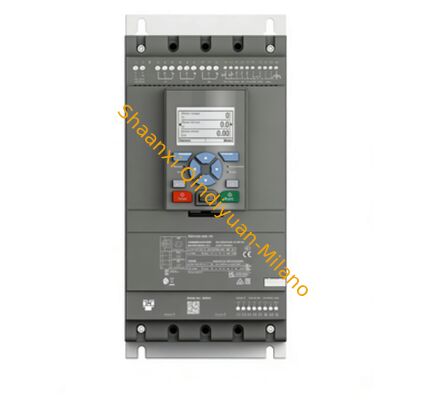

ABB PSTX170-600-70 Softstarter
The ABB 1SFA898111R7000 PSTX170-600-70 softstarter delivers reliable motor control with a rated maximum operational current of 170 A and operating voltage range from 208-600 V AC.
Ordering Information
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85371091
Technical Documentation
Data Sheet & Technical Information: Softstarter main catalog
Quick Start Guide: PSTX quick start guide
Installation Manual: PSTX - Installation and commissioning manual
Handbook: Softstarter Handbook
CAD Files: 2D and 3D files for CAD systems
EPLAN Data: EPLAN EDZ PSTX170
Physical Dimensions
Dimension Value
Width 199 mm
Height 377 mm
Depth/Length 283.3 mm
Weight 8.9 kg
Electrical Specifications
Parameter Value
Rated Operational Voltage 208 ... 600 V AC
Rated Control Supply Voltage (Us) 100 ... 250 V AC
Rated Control Circuit Voltage (Uc) 24 V DC
Rated Frequency (f) 50/60 Hz
Rated Operational Current - In-Line 170 A
Rated Operational Current - Inside Delta 300 A
Power Ratings - In-Line Connection
Voltage Power
230 V 45 kW
400 V 90 kW
500 V 110 kW
Power Ratings - Inside Delta Connection
Voltage Power
230 V 90 kW
400 V 160 kW
500 V 200 kW
Control & Protection Features
Starting & Control Parameters
Starting Capacity 4xIe for 10s
Ramp Time 1 ... 120 seconds
Initial Voltage 10 ... 99 %
Current Limit 1.5 ... 7.5 xIe
Integrated Protection
Built-in electronic overload protection with overload signal relay
Signal Relays
Run Signal Yes
By-pass Signal Yes
Fault Signal Yes
Communication & Connectivity
Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
Environmental Specifications
Condition Temperature Range
Operation -25 ... +60 °C
Storage -40 ... +70 °C
UL/CSA Ratings
Voltage Range Horsepower Rating
200 ... 208 V AC 50 Hp
220 ... 240 V AC 60 Hp
440 ... 480 V AC 125 Hp
550 ... 600 V AC 150 Hp
