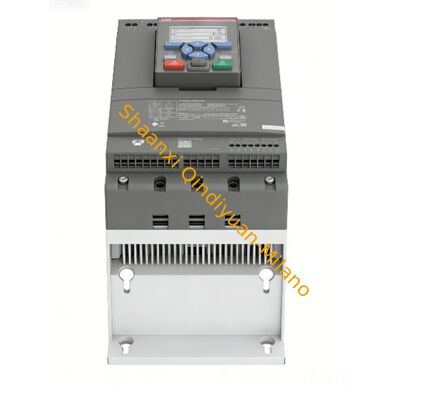

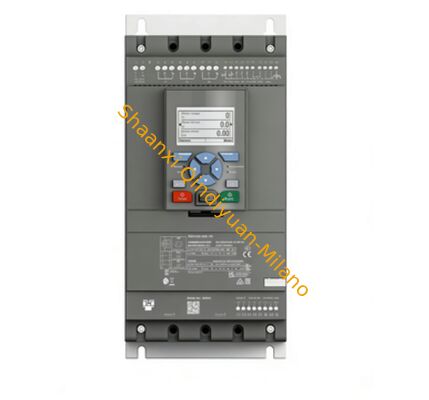

ABB PSTX370-600-70 (1SFA898115R7000) Advanced Motor Softstarter

1. Product Overview 📄

Model Code Decoding

2. Core Advantages & Key Features ⭐

1. 3-Phase Full Control & Dual Wiring Compatibility


   Independent thyristor control on all three phases delivers balanced torque output; supports both standard in-line and inside-delta wiring to expand applicable motor current up to 640 A, lowering cabinet space and equipment investment costs.
2. Built-in Energy-Saving Bypass Contactor


   After motor full-speed startup, internal bypass closes to bypass thyristor modules, cutting heat generation and power consumption during long-term continuous running.
3. Comprehensive All-Round Motor Protection


   Standard integrated electronic overload protection, phase loss, phase imbalance, overvoltage, undervoltage, overheat, locked rotor and excessive start counter protection; adjustable motor current matching range (30–100% of rated softstarter current).
4. Rich Intelligent Startup & Control Functions


   Supports voltage ramp, torque ramp, current limit, kickstart, pump cleaning, jog mode, DC standstill braking and emergency fire pump dedicated mode; ramp time adjustable from 1–120 seconds for flexible matching of pumps, fans and conveyors.
5. Detachable IP66 Graphic HMI Keypad


   Multi-language graphical display with real-time current, voltage, power and fault data readout; detachable design allows door-mounted remote operation for on-site cabinet debugging.
6. Powerful Communication & Signal Output


   Native built-in Modbus RTU; optional Anybus modules support Profinet, Profibus, Modbus TCP, EtherNet/IP and mainstream industrial fieldbus protocols. Multi-channel analog output (0–10 V / 4–20 mA) transmits operational data to PLC/HMI. Multiple NO relay outputs for run, fault, bypass and event status feedback.
7. Harsh Environment Adaptability


   Conformal coated PCB resists dust, moisture and corrosive factory atmospheres; thermostatically controlled cooling fan for stable full-load continuous operation; IP20 chassis protection for cabinet installation.

3. Detailed Technical Parameters 📊

4. Application Industries & Typical Scenarios 🏭

Main Applicable Industries

Typical Application Scenarios

1. Centrifugal Water Pumps & Sewage Pumps


   Soft ramp start eliminates water hammer shock; built-in pump cleaning cycle prevents pipeline blockage, extends pump and valve service life.
2. Large Industrial Fans & Blowers


   Gradual torque startup reduces belt and bearing mechanical impact, avoids grid voltage fluctuation from heavy inrush current.
3. Heavy-Duty Belt Conveyors


   Kickstart function delivers instant initial torque for loaded conveyors; slow ramp prevents material slipping and belt damage.
4. Compressors & Rotary Processing Equipment


   DC standstill braking and soft stop functions eliminate residual rotation and mechanical rebound during shutdown.
5. Fire Emergency Pump Systems


   Dedicated fire pump mode overrides standard overload protection to guarantee reliable emergency startup.

Image Reference Description

1. Application Scene Image: PSTX370 softstarter installed inside medium-voltage control cabinet, wired to large water pump motor and PLC monitoring system.
2. Warehouse Storage Image: Original ABB PSTX series softstarters packed in official export cartons, neatly stacked on industrial storage racks with complete serial number labels, mounting hardware and operation manuals, 100% original genuine stock.

5. Packaging & Quality Guarantee 📦

• Product Condition: 100% Original New Genuine ABB factory-manufactured product
• Original Packaging: Independent export carton with unique serial number, full model parameter sticker and metal nameplate
• Standard Accessories: Mounting brackets, main circuit terminal lugs, detachable graphic HMI keypad, wiring covers, official installation & programming manual
• Official Warranty: 12-month global manufacturer warranty
• Shipping Options: DHL, FedEx, TNT or industrial land logistics; standard lead time for in-stock goods: 3–7 working days
• Quality Inspection: 100% full-function factory pre-delivery testing, all performance indicators fully comply with ECER international industrial safety standards

6. Installation & Usage Tips 💡

1. This model is IP20 chassis-only; must be installed inside sealed electrical control cabinets to avoid direct dust, water splash or corrosive gas exposure.
2. Select inside-delta wiring if motor current exceeds 370 A to fully utilize the 640 A equivalent capacity of this softstarter.
3. Install matched MCCB circuit breakers on the input side for short-circuit protection; refer to ABB official catalog for matching breaker specifications.
4. The detachable graphic keypad supports remote cabinet door mounting via extension cable for convenient on-site parameter adjustment.
5. For long-term high-temperature continuous operation, reserve minimum 150 mm vertical ventilation clearance above and below the unit to avoid overheating triggering protection shutdown.
6. Use shielded communication cables for Modbus/fieldbus wiring to prevent electromagnetic interference with adjacent sensors and control equipment.
