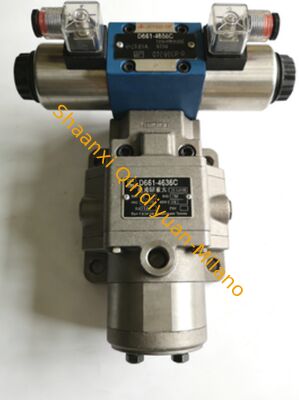

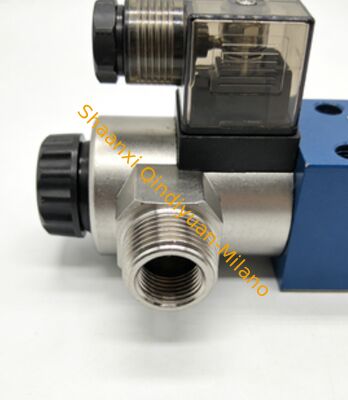

MOOG D661-4636C IP65 Valve Positioners 24 VDC Power Supply For Industrial Automation

1 pcs
MOQ
Negotiable
Price
MOOG D661-4636C IP65 Valve Positioners 24 VDC Power Supply For Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Accuracy: ±1% Of Full Scale
Operating Temperature Range: -20°C To 80°C (-4°F To 176°F)
Feedback: Built-in Feedback Potentiometer Or Digital Feedback
Communication Protocol: HART, FOUNDATION Fieldbus, Or PROFIBUS (for Smart Positioners)
Response Time: Typically Less Than 1 Second
Supply Pressure: Typically 3-8 Bar (45-120 Psi)
Protection Class: IP65 Or Higher
Type: Electro-pneumatic / Pneumatic / Digital
Function: Control Valve Actuator Position To Ensure Accurate Valve Operation
Input Signal: 4-20 MA, 0-10 V, Or Pneumatic Signal
Mounting: Direct Mount On Valve Actuator Or Remote Mount
Material: Aluminum Alloy Housing With Corrosion-resistant Coating
Power Supply: 24 VDC For Electro-pneumatic Models
Output Signal: Pneumatic Pressure To Actuator
Highlight:

IP65 Valve Positioners

,

D661-4636C Valve Positioners
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: D661-4636C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 PCS
Product Description
MOOG D661-4636C Servo Valve
Core Applications
Industrial automation hydraulic systems, turbine control, and high-precision position/speed/force control systems
Technical Specifications
Parameter Item Technical Value Remarks
Maximum System Pressure 35.0 MPa Rated at P/A/B ports
Rated Flow Rate 60 L/min (ΔP=1.0 MPa)
160 L/min (ΔP=7.0 MPa)		 High-performance flow capacity
Input Signal ±10 mA Rated Control Current
Valve Spool Position Feedback 4-20 mA Output at F pin, 20 mA corresponding to P→A
Step Response < 20.0 ms Ps=21.0 MPa, 100% Input
Hysteresis < 0.5% Static Accuracy
Resolution < 0.1% High Control Accuracy
Power Supply Voltage +24 VDC (Imax=300mA) Built-in Drive Circuit
Sealing Material FPM (Viton) Fluororubber Oil-resistant and high-temperature resistant
Fail-Safe Positions A→T, P→B Valve core reset state upon power failure
Required Accessories
  • B97007 061 Servo Valve Plug (to be ordered separately)
Logistics Data
  • Net Weight: Approximately 2.8 kg
  • Gross Weight: Approximately 3.5 kg
  • Packaging Dimensions: 220 mm × 160 mm × 140 mm
