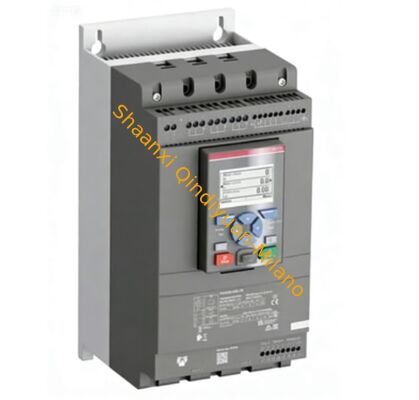

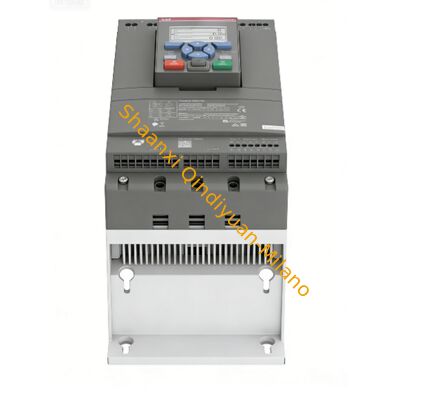

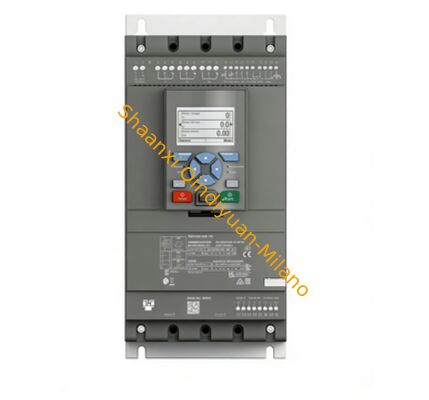

ABB 1SFA898116R7000 Softstarter PSTX60-600-70 Has A Rated Max Operational Current Of 60A

1
MOQ
Negotiable
Price
ABB 1SFA898116R7000 Softstarter PSTX60-600-70 Has A Rated Max Operational Current Of 60A
Features Gallery Product Description Chat Now
Features
Specifications
Power Rating: 0.5 KW To 500 KW
Enclosure Rating: IP20 To IP54
Display Type: LCD Or LED
Mounting Type: Wall-mounted Or Panel-mounted
Harmonic Mitigation: Built-in DC Choke Or External Filter Options
Protection Features: Overvoltage, Undervoltage, Overcurrent, Overtemperature
Cooling Method: Forced Air Cooling
Output Frequency: 0-400 Hz
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Operating Temperature Range: -10°C To 50°C
Input Frequency: 50/60 Hz
Overload Capacity: 150% For 1 Minute
Output Voltage: 0-480V AC
Communication Protocols: Modbus, Profibus, Ethernet/IP
Input Voltage: 200-480V AC
Highlight:

ABB 1SFA898116R7000

,

Softstarter PSTX60-600-70

,

Softstarter 60A
Basic Infomation
Place of Origin: CHINA
Brand Name: ABB
Model Number: 1SFA898116R7000
Document: Softstarter_panorama_PSTrev...vF.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description
ABB PSTX60-600-70 Softstarter
The ABB 1SFA898116R7000 PSTX60-600-70 softstarter delivers reliable motor control with a rated maximum operational current of 60 A and operating voltage range from 208-600 V AC.
Ordering Information
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091
Technical Documentation
Data Sheet & Technical Information:
Softstarter main catalog
Quick Start Guide:
PSTX quick start guide
Installation Manual:
PSTX - Installation and commissioning manual
Technical Handbook:
Softstarter Handbook
CAD Files:
2D and 3D files for CAD systems
EPLAN Data:
EPLAN EDZ PSTX470
Physical Dimensions
Dimension Value
Width 361 mm
Height 493 mm
Depth/Length 282 mm
Weight 25 kg
Electrical Specifications
Parameter Specification
Rated Operational Voltage 208 ... 600 V AC
Rated Control Supply Voltage (Us) 100 ... 250 V AC
Rated Control Circuit Voltage (Uc) 24 V DC
Rated Frequency (f) 50/60 Hz
Rated Operational Current - In-Line Connection (Ie) 470 A
Rated Operational Current - Inside Delta Connection 814 A
Power Ratings
In-Line Connection
Voltage Power Rating
230 V 132 kW
400 V 250 kW
500 V 315 kW
Inside Delta Connection
Voltage Power Rating
230 V 250 kW
400 V 450 kW
500 V 600 kW
Operational Features
Service Factor
100%
Overload Protection
Built-in electronic overload protection
Integrated Electronic Overload
Yes
Starting Capacity
4xIe for 10s
Ramp Time
1 ... 120 seconds
Initial Voltage During Start
10 ... 99%
Step Down Voltage Special Ramp
100 ... 10%
Control & Signaling
Switch for Inside Delta Connection
Yes
Run Signal Relay
Yes
By-pass Signal Relay
Yes
Fault Signal Relay
Yes
Overload Signal Relay
Yes
LED Status Indicators
Indicator Color Status
Ready to Start/Standby Green ON
Running Green R
Protection Yellow Active
Fault Red Active
Communication Protocols
Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
Protection & Safety
Degree of Protection
IP00 (Main Terminals) acc. to IEC 60529, IEC 60947-1, EN 60529
Key Functions
  • Auto phase sequence detection
  • Automatic restart
  • Current limit
  • Current limit ramp
  • Dual current limit
  • Dynamic brake
  • Electricity metering
  • Electronic overload Time-to-cool
  • Emergency mode
  • Event log
Protection Functions
  • Bypass open protection
  • Current imbalance protection
  • Current underload protection
  • Dual overload (separate overload for start and run)
  • Earth fault protection / ground fault protection
  • Electronic overload protection, EOL
  • Extension IO failure protection
  • Fieldbus failure protection
  • HMI failure protection
  • Locked rotor protection
  • Max number of starts/hour
  • Over voltage protection
  • Phase reversal protection
  • Power factor underload protection
  • PT-100 connection
  • PTC connection
  • Too long current limit protection
  • Too long start time protection
  • Under voltage protection
  • User defined protection
  • Voltage imbalance protection
Warning System
  • Current imbalance warning
  • Current underload warning
  • Electronic overload Time-to-trip
  • EOL warning
  • Faulty fan warning
  • Locked rotor warning
  • Motor runtime limit warning
  • Over voltage warning
  • Phase loss warning (for standby)
  • Power factor underload warning
  • Short circuit warning (for Limp mode)
  • THD(U) - Total Harmonic Distortion warning
  • Thyristor overload warning (SCR)
  • Under voltage warning
  • Voltage imbalance warning
