ABB PSTX60-600-70 Softstarter

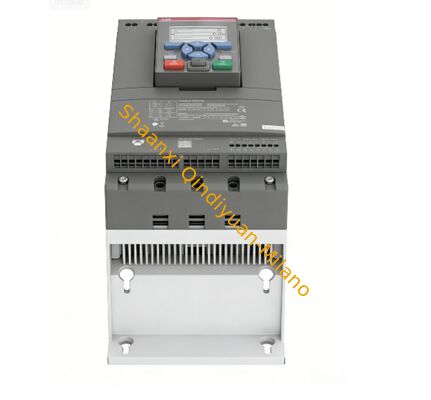

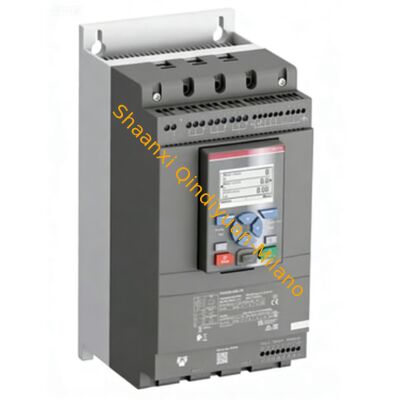

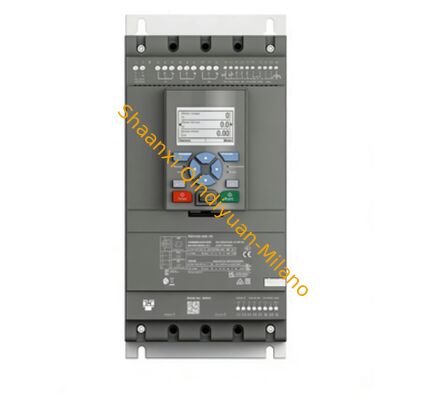

The ABB 1SFA898106R7000 PSTX60-600-70 softstarter delivers reliable motor control with a rated maximum operational current of 60 A and operating voltage range of 208-600 V AC.
Ordering Information
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85371091
Technical Documentation
| Document Type |
Description |
| Data Sheet |
Softstarter main catalog |
| Quick Start Guide |
PSTX quick start guide |
| Installation Manual |
PSTX - Installation and commissioning manual |
| Technical Handbook |
Softstarter Handbook |
| CAD Files |
2D and 3D files for CAD systems |
| EPLAN Data |
EPLAN EDZ PSTX60 |
Physical Dimensions
| Dimension |
Value |
| Width |
150 mm |
| Height |
314 mm |
| Depth/Length |
198 mm |
| Weight |
4.6 kg |
Electrical Specifications
| Parameter |
Specification |
| Rated Operational Voltage |
208-600 V AC |
| Rated Control Supply Voltage (Us) |
100-250 V AC |
| Rated Control Circuit Voltage (Uc) |
24 V DC |
| Rated Frequency (f) |
50/60 Hz |
In-Line Connection Performance
| Voltage |
Power |
Current |
| 230 V |
15 kW |
60 A |
| 400 V |
30 kW |
60 A |
| 500 V |
37 kW |
60 A |
Inside Delta Connection Performance
| Voltage |
Power |
Current |
| 230 V |
30 kW |
105 A |
| 400 V |
55 kW |
105 A |
| 500 V |
75 kW |
105 A |
Control & Protection Features
Key Specifications
Service Factor: 100%
Overload Protection: Built-in electronic overload protection
Starting Capacity: 4xIe for 10s
Ramp Time: 1-120 seconds
Initial Voltage: 10-99%
Current Limit: 1.5-7.5 xIe
Inside Delta Connection Switch: Yes
Relay Outputs
Run Signal Relay, By-pass Signal Relay, Fault Signal Relay, Overload Signal Relay
Analog Outputs
0-10 V, 0-20 mA, 4-20 mA
LED Indicators
Green: Ready to Start/Standby ON, Running R
Yellow: Protection
Red: Fault
Communication Protocols
Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
Protection & Safety
Degree of Protection: IP00 (Main Terminals)
Terminal Type: Cable Clamp
Main Circuit Connection: Hole Diameter 8.5 mm
Control Circuit: Rigid 1 x 2.5 mm²
Supply Circuit: Rigid 1 x 2.5 mm²
Tightening Torque: 8 N·m (Main Circuit)
Advanced Functions
- Auto phase sequence detection
- Automatic restart
- Current limit & current limit ramp
- Dual current limit
- Dynamic brake
- Electricity metering
- Electronic overload Time-to-cool
- Emergency mode
- Event log
Protection Functions
Comprehensive protection including bypass open protection, current imbalance protection, earth fault protection, electronic overload protection, phase reversal protection, voltage imbalance protection, and user-defined protection settings.
Warning System
Advanced warning capabilities for current imbalance, electronic overload, faulty fan, locked rotor, over voltage, phase loss, short circuit, THD(U), thyristor overload, and under voltage conditions.
