Home /Products/Variable Frequency Drives VFD/ABB 1SFA898110R7000 softstarter PSTX142-600-70 has a rated maximum operational current of 142 A with an operating voltage span from 208...600 V AC

ABB 1SFA898110R7000 softstarter PSTX142-600-70 has a rated maximum operational current of 142 A with an operating voltage span from 208...600 V AC

1
MOQ
Negotiable
Price
ABB 1SFA898110R7000 softstarter PSTX142-600-70 has a rated maximum operational current of 142 A with an operating voltage span from 208...600 V AC
Features Gallery Product Description Chat Now
Features
Specifications
Ambient Temperature Range: -10°C To 50°C
Output Frequency: 0-400 Hz
Display Type: LCD Or LED
Output Voltage: 0-480 V AC
Input Voltage: 200-480 V AC
Cooling Method: Forced Air Cooling
Input Frequency: 50/60 Hz
Power Rating: 0.5 KW To 500 KW
Harmonic Mitigation: Built-in DC Choke Or External Filter Support
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Protection Class: IP20 To IP54
Acceleration/Deceleration Time: 0.1 To 6000 Seconds
Communication Protocols: Modbus, Profibus, Ethernet/IP
Overload Capacity: 150% For 1 Minute
Safety Features: Overcurrent, Overvoltage, Undervoltage, Thermal Overload Protection
Highlight:

ABB PSTX142-600-70 softstarter

,

142 A softstarter with warranty

,

600 V AC variable frequency drive
Basic Infomation
Place of Origin: CHIAN
Brand Name: ABB
Model Number: 1SFA898110R7000
Document: Softstarter_panorama_PSTrev...vF.pdf
Payment & Shipping Terms
Packaging Details: PIECES
Delivery Time: 5-8DAYS
Payment Terms: T/T
Product Description

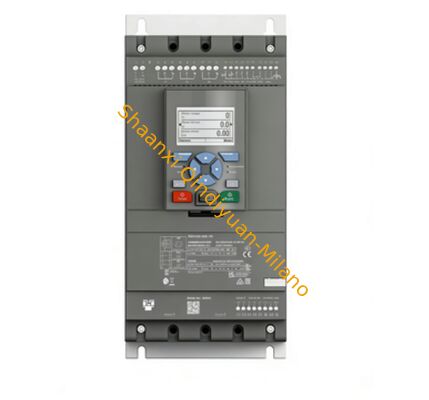

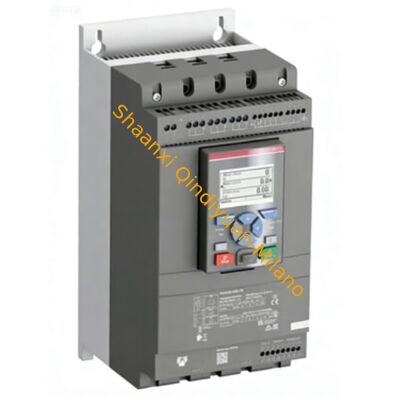

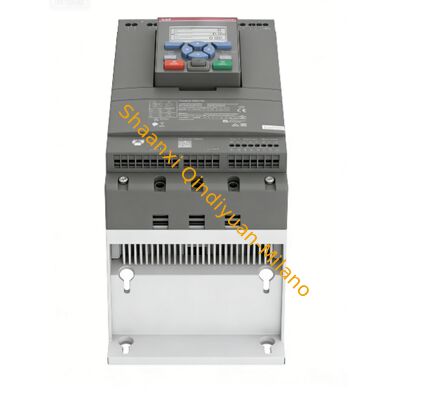

ABB PSTX142-600-70 Softstarter
The ABB 1SFA898110R7000 PSTX142-600-70 softstarter delivers reliable motor control with a rated maximum operational current of 142 A and operating voltage range of 208-600 V AC.
Key Specifications
Rated Operational Current
142 A
Operating Voltage
208-600 V AC
Horsepower Rating (UL/CSA)
40-125 Hp (depending on voltage)
Degree of Protection
IP00 (Main Terminals)
Ordering Information
Minimum Order Quantity
1 piece
Customs Tariff Number
85371091
Technical Documentation
  • Data Sheet, Technical Information: Softstarter main catalog
  • PSTX quick start guide
  • PSTX - Installation and commissioning manual
  • Softstarter Handbook
  • CAD Dimensional Drawing: 2D and 3D files for CAD systems
  • EPLAN Data: EPLAN EDZ PSTX142
Physical Dimensions
Dimension Value
Width 199 mm
Height 377 mm
Depth/Length 283.3 mm
Weight 7 kg
Electrical Specifications
Parameter Specification
Rated Operational Voltage 208-600 V AC
Control Supply Voltage 100-250 V AC
Control Circuit Voltage 24 V DC
Rated Frequency 50/60 Hz
Starting Capacity 4xIe for 10s
Ramp Time 1-120 seconds
Power Ratings
In-Line Connection
Voltage Power Current
230 V 37 kW 142 A
400 V 75 kW 142 A
500 V 90 kW 142 A
Inside Delta Connection
Voltage Power Current
230 V 75 kW 245 A
400 V 132 kW 245 A
500 V 160 kW 245 A
Control & Communication Features
Communication Protocols: Modbus-RTU, Modbus-TCP, Ethernet-IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet, BACnet-IP, BACnet-MSTP
Analog Outputs: 0-10 V, 0-20 mA, 4-20 mA
Signal Relays: Run, By-pass, Fault, Overload
LED Indicators: Ready to Start (Green), Running (Green), Protection (Yellow), Fault (Red)
Protection Functions
Built-in electronic overload protection, phase reversal protection, voltage/current imbalance protection, earth fault protection, under/over voltage protection, locked rotor protection, and user-defined protection functions.
Environmental Specifications
Condition Temperature Range
Operation -25°C to +60°C
Storage -40°C to +70°C
