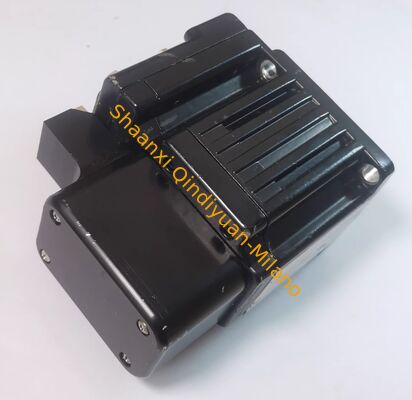

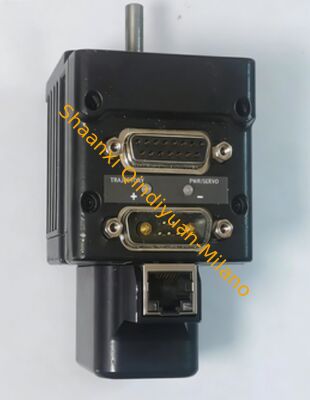

MOOG SM23165D-LTC1 Servo Motor 48 VDC Operating Voltage 10,400 RPM No Load Speed

1 pcs
MOQ
Negotiation
Price
MOOG SM23165D-LTC1 Servo Motor 48 VDC Operating Voltage 10,400 RPM No Load Speed
Features Gallery Product Description Chat Now
Features
Specifications
Application: Robotics, CNC Machines, Automation
Mounting Type: Flange Mount
Ac Voltage: 208-230 / 240 V
Material: Cast Iron
Sample: Charged Sampled Available
Quality: High Quality
Highlight:

SM23165D-LTC1

,

Servo Motor 48 VDC

,

MOOG Servo Motor
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: SM23165D-LTC1
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

MOOG SM23165D-LTC1 Integrated DC Servo Motor｜ECER Standard English Product Detail


1. Product Overview


MOOG SM23165D-LTC1 belongs to MOOG Animatics SmartMotor™ NEMA23 integrated brushless DC servo, operating at 48VDC with max no-load speed 10,400RPM.

It is an all-in-one integrated servo unit built with servo motor + drive amplifier + motion controller + high-precision encoder + onboard I/O & communication bus inside single housing, no need to match separate external servo driver.

Core function: Executes independent programmable closed-loop positioning, speed regulation and intermittent reciprocating motion for automated equipment’s linear & rotary axes; receives upper PLC/host command via bus communication to realize high-speed precise pick-place, indexing positioning and intermittent conveying control, widely used for compact mini automation equipment upgrading & multi-axis distributed motion system.

2. Core Advantages


✅ Ultra-high 10,400RPM No-load Speed: Low inertia rotor design, ultrafast acceleration/deceleration response, fit high-frequency short-stroke reciprocating movement requirement

✅ All-in-one Integrated Design: Motor+Driver+Controller+Encoder integrated structure, save cabinet layout space, cut extra wiring cost and electromagnetic interference trouble

✅ 48VDC Wide DC Power Supply: Direct DC power input, adapt battery-powered portable equipment and industrial DC control cabinet environment

✅ Onboard Programmable Motion + Multi I/O Port: Built-in independent programming system, 7-channel TTL digital I/O, realize standalone axis operation without main controller intervention

✅ Multiple Standard Fieldbus Supported: Compatible RS232/RS485/CANopen/EtherCAT, convenient networking for multi-axis synchronous linkage control

✅ Compact NEMA23 Standard Flange: Universal NEMA23 mounting dimension, direct replacement of traditional stepper motor + external driver combination

✅ CE/UL/RoHS Certified, ECER Compliant: Global industrial certification, fully meet ECER cross-border export standard for worldwide shipment

3. Technical Specification Table





Specification Item Parameter
Model SM23165D-LTC1(MOOG SmartMotor Class5 D-Style)
Motor Type Integrated Brushless DC Servo Motor
Rated Operating Voltage 48 VDC
No-load Max Speed 10,400 RPM
Continuous Rated Torque 0.28 N·m (40 oz-in / 2.05 in-lb)
Peak Instant Torque 0.45 N·m (64 oz-in / 4.00 in-lb)
Rated Continuous Power 181 W
Shaft Diameter 6.35mm (0.25inch) Standard Solid Shaft
Mount Standard NEMA23 industry standard flange
Onboard I/O 7CH 5V TTL Non-isolated Digital Input/Output
Communication Interface RS232/RS485, Optional CANopen/EtherCAT Fieldbus
Working Ambient Temp -10℃ ~ +55℃, Storage Temp: -40℃~+85℃
Cooling Mode Natural Air Cooling
Certification CE, UL, RoHS, IEC standard compliant
Net Weight Approx 0.98KG/Unit

4. Application Industry


  1. 3C Semiconductor Automation: PCB high-speed dispensing, small component pick-and-place manipulator, semiconductor testing fixture driving axis
  2. Precision Packaging & Labeling Machinery: High-speed intermittent labeling axis, small carton folding & feeding positioning control
  3. Laboratory & Medical Automation: Medical test equipment, lab automatic sample transfer equipment, precision fluid dosing driving unit
  4. Small Robotic Equipment: Desktop SCARA robot joint, mini gantry automation, portable sorting robotic arm
  5. Laser & Precision Processing: Mini laser marking scanning axis, small engraving machine auxiliary feeding spindle
  6. Logistics Conveying Equipment: Small indexing conveyor, warehouse miniature sorting stop positioning system
