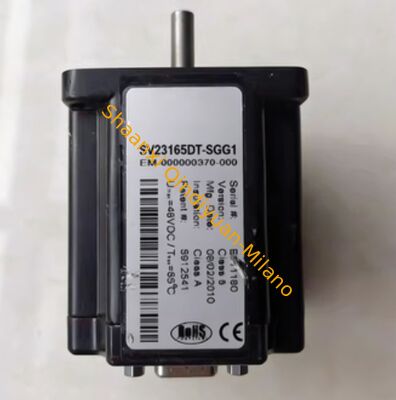

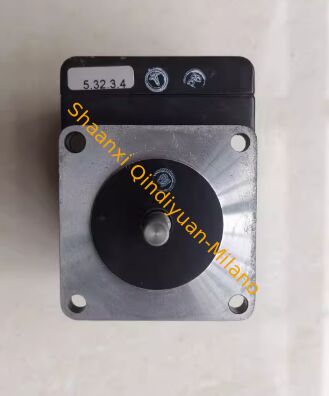

MOOG SV23165DT 1500W Rated Power 24V DC Coreless Servo Motor for Automation Equipment

1 pcs
MOQ
Negotiable
Price
MOOG SV23165DT 1500W Rated Power 24V DC Coreless Servo Motor for Automation Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Rated Power: 1500W
Voltage: 24V DC
Motor Type: Coreless Motor
Condition: New Factory Seal (NFS)
Brake: 24 VDC Holding Brake
User: Students,Engineers Etc.
Output Power: 0.18KW-315KW
Payment: TT
Operating Temperature: -20°C To 80°C
After Warranty Service: Video Technical Support
Servo Type: Analog Servo
Resistance: 10.0±10% Ω/phase
Applicable Scenarios: Automation Equipment
Feedback Type: Incremental
Line Length: 20cm
Highlight:

1500W Rated Power Servo Motor

,

24V DC Servo Motor

,

Coreless Servo Motor
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: SV23165DT
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
MOOG SV23165DT Servo Integrated Motor
High-performance servo integrated motor designed for precision industrial applications with advanced communication interfaces and robust construction.
Core Technical Parameters
Parameter Value
Continuous Power 204 W
Continuous Torque 0.52 N*m (4.61 in-lb/74 oz-in)
Peak Torque 0.84 N*m (7.40 in-lb/118 oz-in)
No-load Speed 5200 RPM
Continuous Current (3800 RPM) 5.07 A
Encoder Resolution 4000 Counts/Rev
Shaft Diameter 6.35 mm (0.250 in)
Weight 0.59 kg (1.3 lb)
Operating Temperature 0°C ~ 85°C
Storage Temperature -10°C ~ 85°C (non-condensing)
Communication & I/O Capabilities
Communication Interface
  • Standard: RS232/RS485
  • Optional: CANopen, DeviceNet, PROFIBUS
I/O Configuration
  • 7-channel 5V TTL non-isolated I/O
  • Optional 10-channel 24VDC isolated expansion I/O
Mechanical & Electrical Specifications
  • Axis Load: Radial 3.18 kg (7 lb), Axial 1.36 kg (3 lb)
  • Wiring/Interface: D-style dedicated connector; supports simplified wiring schemes including CDS7 integrated power supply + CAN bus
  • Rotor Inertia: 0.706×10⁻⁵ kg*m²
  • Winding Resistance/Inductance: 0.7 Ω, 1.31 mH
Compatibility & Certifications
Compatible Versions
Schmid SV23165DT-SGG3: 48 VDC servo motor, Class 5, parameters identical/compatible with Moog
Model Variations
Suffix differences (-PB, -LAM2, etc.) indicate communication, braking, or I/O options - main performance remains unchanged
Power Requirements
48VDC electrical equipment - requires external power supply (no built-in battery/capacitor energy storage)
Certifications
Compliant with CE and RoHS standards
