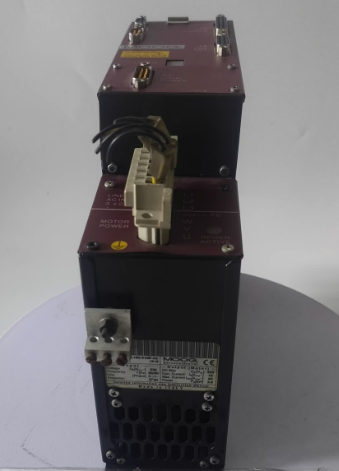

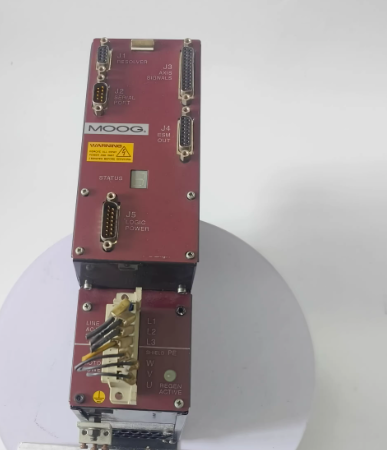

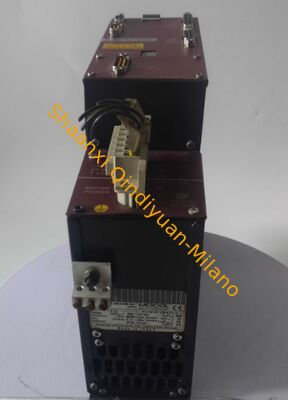

MOOG L180‑410B‑A2 Servo Drive

Industrial Digital Servo Amplifier

Product Overview

The MOOG L180‑410B‑A2 belongs to the L180 series single‑axis digital servo drive. It is a high‑performance motion control amplifier designed to drive MOOG brushless resolver‑based servo motors, delivering 10 A continuous output current and 20 A peak current for precise torque, velocity control in high‑dynamic industrial equipment. It accepts ±10 V analog command signals or RS232 serial instructions, executes closed‑loop multi‑loop control, and is widely deployed for automation machinery that demands fast response and high positioning accuracy. This unit supports single‑phase or three‑phase 230 VAC mains input, with integrated regenerative resistor to absorb motor regenerative energy during deceleration.

Product Advantages (Core Features)

• High Dynamic Performance: 10 A continuous / 20 A peak output current, fast current‑loop response for rapid acceleration and heavy transient load conditions
• Multi‑Mode Control: Supports torque mode, velocity mode via ±10 VDC differential analog input; parameter configuration and diagnosis via RS232 serial port with PC GUI software
• Built‑in Regenerative Resistor: 300 W continuous / 3800 W peak regeneration capability, eliminates external braking resistor for most applications
• Comprehensive Protection: Short‑circuit, over‑current, I²t motor thermal protection, resolver fault detection, over‑temperature alarm; ready / fault relay output for remote monitoring
• Galvanic Isolation: Isolation between power stage and control circuits improves anti‑interference performance in noisy industrial cabinet environments
• Temperature‑controlled Fan Cooling: Adaptive fan reduces noise and extends service life under variable load cycles
• Diagnostic 7‑segment LED display: Local fault code readout for quick on‑site troubleshooting
• Optional 24 VDC backup logic power: Keeps communication and diagnosis active during mains power drop‑out

Application Industries & Scenarios

Main Industries: Metal‑forming machinery, test & measurement equipment, packaging machinery, printing equipment, robotics, aerospace test rigs, material processing, special OEM automation equipment, hydraulic‑electric hybrid motion platforms.

Typical Application Scenarios:

• High‑speed positioning axis for special‑purpose industrial machinery
• Torque‑controlled test benches and simulation equipment
• Precision press and forming machine servo axes
• Automated production equipment requiring fast dynamic response
• Research & industrial laboratory motion simulation systems
