Product Datasheet: Danfoss 131B0934 VLT® AutomationDrive FC-301

Compliance Declaration

1. Product Overview ⚙️

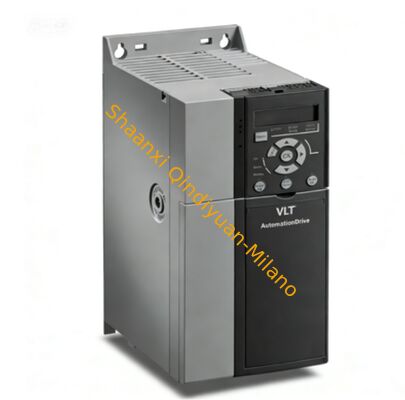

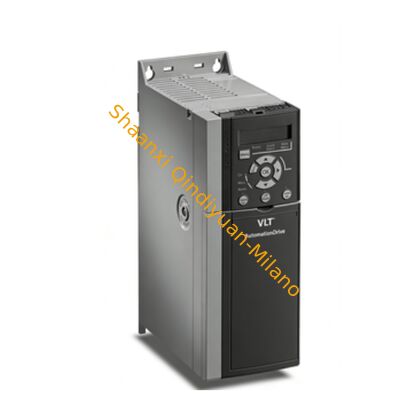

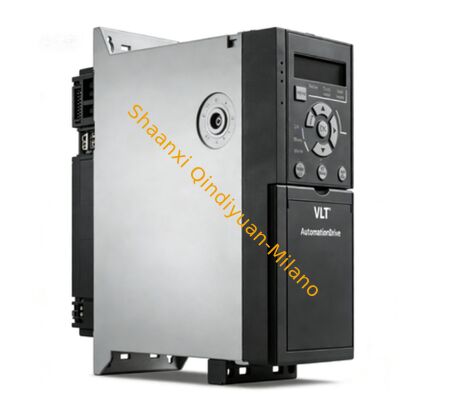

Danfoss 131B0934 VLT® AutomationDrive FC-301 (P1K1) 1.1kW Frequency Converter

2. Core Advantages & Key Features ✅

1. Multi-Type Motor Compatibility


   Supports asynchronous induction motor, permanent magnet synchronous motor and synchronous reluctance motor, motor brand independent design with automatic motor adaptation (AMA) function for automatic parameter identificationassets.danfoss.com.
2. Embedded Smart Logic & PID Process Control


   Built-in mini PLC logic function with 4 sets of switchable parameter groups; integrated closed-loop PID regulator to directly stabilize flow, pressure and temperature without external control instruments.
3. Efficient Independent Back-Channel Cooling


   Heat dissipation air channel separates power heating components from cabinet internal space, realizing side-by-side dense installation without power derating, greatly saving electrical panel layout spaceDanfoss.
4. Complete Built-In EMC Protection


   Standard built-in Class A2 RFI filter, effectively reduces harmonic interference to power grid and adjacent sensitive instruments, meets global industrial ECE R electromagnetic compatibility standards.
5. Powerful Low-Speed Torque Output


   Vector control algorithm delivers 150% overload torque lasting 60 seconds at low speed, suitable for heavy-load startup equipment such as conveyors and mixers.
6. Comprehensive Equipment Self-Diagnosis & Protection


   Integrated overvoltage, undervoltage, short-circuit, ground fault, overheat, motor thermal overload (ETR) protection; real-time fault code feedback for rapid troubleshooting.
7. Modular Plug-and-Play Expansion


   Supports optional fieldbus communication cards (Modbus RTU, Profibus DP, Ethernet IP) and analog I/O expansion modules to match diverse automation system connection demands.
8. User-Friendly Commissioning Tool


   Compatible with MCT 10 PC debugging software, supports one-click parameter upload/download and batch equipment setup; optional graphical LCP control panel for on-site intuitive parameter adjustment.

3. Full Technical Specifications Table

4. Applicable Industries & Typical Application Scenarios 📊

Core Covered Industries

1. Food & Beverage Packaging Machinery
2. Logistics Belt Conveying & Sorting Equipment
3. HVAC & Small Water Treatment Pump/Fan Systems
4. Light Industry Plastic Auxiliary Machinery
5. Textile Winding & Spinning Equipment
6. Small Automated Assembly Production Lines
7. Agricultural Irrigation Pump & Blower Equipment
8. Laboratory Testing & Mixing Mechanical Devices

Typical Application Descriptions

1. Small conveyor speed control: Soft start avoids material slipping; built-in logic realizes multi-station equipment interlock without additional PLC.
2. Circulating pump and cooling fan energy-saving regulation: Built-in PID maintains constant pressure/flow, cutting idle power consumption by 30%–50%.
3. Packaging machine clamping, conveying and winding motor speed adjustment, stable low-speed heavy torque output ensures smooth material operation.
4. Small reaction kettle, mixer and processing spindle variable frequency speed control for multi-specification production switching.

Layout Matching Image & Icon Tags

1. Application Scenario Graphic 1: Food Packaging Automated Conveyor Line


   Icon Mark: 📦 Packaging Industrial Equipment
2. Application Scenario Graphic 2: Water Treatment Pump Control Cabinet


   Icon Mark: 🏭 HVAC & Fluid Process System
3. Warehouse Stock Photo: Original Danfoss FC301 Drive Finished Goods Storage Rack


   Icon Mark: 📦 Industrial Automation Components Warehouse
4. Product Outline Graphic: 131B0934 FC-301 A2 Frame Drive Physical Diagram


   Icon Mark: ⚙️ Danfoss FC-301 1.1kW Inverter Appearance

5. Export Compliance Statement
