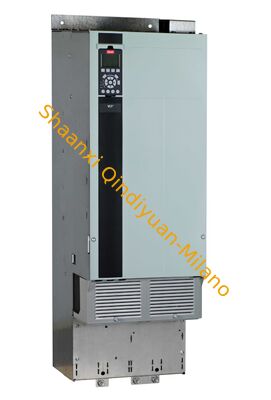

Danfoss 134F0292 Frequency converter VLT® AutomationDrive FC-302 (N90K) 90 KW / 125 HP,Three phase, 380 - 500 VAC

1
MOQ
Negotiable
Price
Danfoss 134F0292 Frequency converter VLT® AutomationDrive FC-302 (N90K) 90 KW / 125 HP,Three phase, 380 - 500 VAC
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Danfoss VLT AutomationDrive FC-302

,

90 KW frequency converter

,

three phase VFD 380-500V
Basic Infomation
Place of Origin: china
Brand Name: Danfoss
Model Number: 134F0292
Document: AD397545239678en-000101.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Danfoss 134F0292 Frequency converter VLT® AutomationDrive FC-302 (N90K) 90 KW / 125 HP, Three phase, 380 - 500 VAC
Physical Specifications
Gross Weight 69 Kilogram
Net Weight 64 Kilogram
Volume 255.881 Liter
EAN 5710107399932
Product Configuration
Product Group FC- VLT® AutomationDrive FC-
Series 302 302
Power Rating N90K (N90K) 90 KW / 125 HP
Phase T Three phase
Mains Voltage 5 380 - 500 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H2 RFI Filter
Brake - Safe Stop X No brake chopper
LCP G Graphical Loc. Cont. Panel
Coating PCB C Coated PCB
Technical Specifications
Frame Size D3H D3H
Height 909.0 mm
Height with Regen/Loadshare 1004.0 mm
Width 250.0 mm
Depth 375.0 mm
kVA 123
Power 150% (HO) 90 KW
Power 110% (NO) 110 KW
Electrical Performance
Continuous Current (NO) 212 A
Intermittent Current (NO) 233 A
Continuous Current (HO) 177 A
Intermittent Current (HO) 266 A
Power Loss NO 2559 W / 2261 W
Power Loss HO 2031 W / 1828 W
Product Identification
Typecode Part 1 FC-302N90KT5E20H2XGC
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Model Code 01 FC-302N90KT5E20H2XGC
Model Code 02 XXXSXXXXAXBXCXXXXDX
