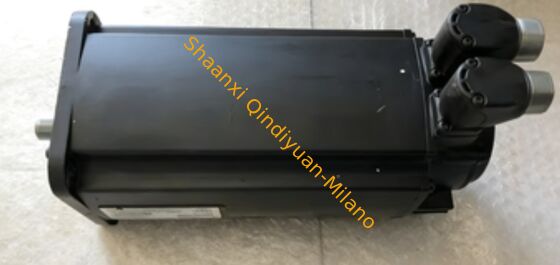

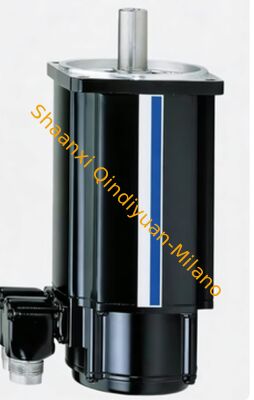

Rexroth QSK075D-0300-NN-S5-UG0-NNNN 3000 rpm IP65 Protection High Torque Density Synchronous Servo Motor

1 pcs
MOQ
Negotiable
Price
Rexroth QSK075D-0300-NN-S5-UG0-NNNN 3000 rpm IP65 Protection High Torque Density Synchronous Servo Motor
Features Gallery Product Description Chat Now
Features
Specifications
Item No: MKD041B-144-KG1-KN
Shaft End Specifications: With Keyway
Vibration Level: V15
Rotation Angle: 360°
Colour: Silvery
Dimensions: L 20mm X W 17.6mm X H 8mm
Origin: JAPAN
Type: AC/DC
Dimension: 40mm X 19mm X 43mm
Operating Temperature: -20°C To 60°C
Connection Method: Direct Connection
Standard Or Nonstandard: Standard
Operating Speed: 0.17sec / 60 Degrees (4.8V No Load)
Installation Method: Flange Type
Voltage: 110V / 220V / 380V
Highlight:

3000 rpm Servo Motor

,

IP65 Protection Synchronous Servo Motor

,

High Torque Density AC/DC Servo Motor
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: QSK075D-0300-NN-S5-UG0-NNNN
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 10000 PCS
Product Description
Rexroth QSK075D-0300-NN-S5-UG0-NNNN Servo Motor
Model Number Breakdown
QSK: QSK series, high dynamic synchronous servo motor
075: Motor flange specification (75mm)
D: Motor design version (Type D)
0300: Rated speed 3000 rpm
NN: No holding brake, no oil seal
S5: Encoder type (multi-turn absolute encoder, EnDat 2.2)
UG0: Shaft end specification (plain shaft, no keyway)
NNNN: No additional options
Electrical Specifications
Rated PowerApprox. 2.0 kW
Rated Torque6.4 Nm
Maximum Torque19.2 Nm (3 times rated)
Rated Current8.5 A
Maximum Current25.5 A
Rated Voltage400 V AC (three-phase)
Rotor Inertia0.35 kg·cm²
Protection ClassIP65 (stator) / IP54 (shaft end)
Cooling MethodNatural air cooling
Encoder and Interface
Encoder TypeS5 multi-turn absolute encoder (EnDat 2.2)
Resolution20 bit per turn, 12 bit per turn
Communication ProtocolEnDat 2.2
Electrical InterfaceStandard power plug + encoder plug
Drive CompatibilityIndraDrive series drives
Mechanical and Environmental Specifications
Shaft Diameter14 mm (optical shaft)
Flange Mounting75mm square flange (ISO 9409)
WeightApprox. 5.5 kg
Operating Temperature0°C – 40°C
Storage Temperature-20°C – 85°C
Altitude≤ 1000 m
Vibration5.9 m/s² (10–2000 Hz)
Compatibility and Applications
Compatible DrivesIndraDrive HCS, MHD, DKC series
Typical Applications
  • Packaging machinery and printing equipment
  • Machine tool feed axes and automated assembly lines
  • Material handling systems and robot joints
  • High-speed positioning and precision control scenarios
