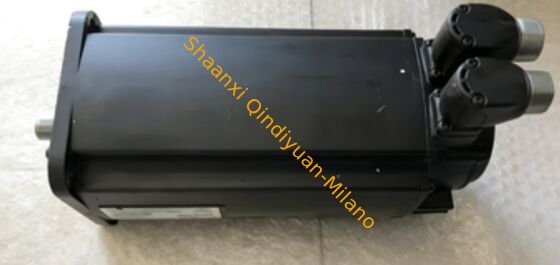

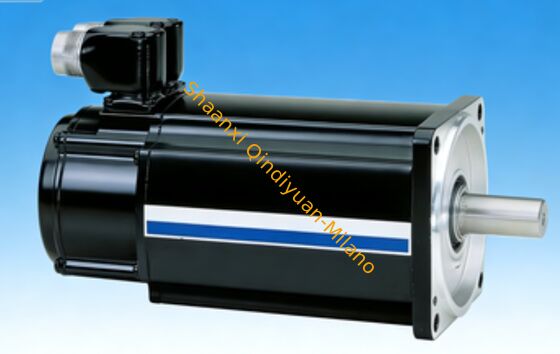

Rexroth IndraDyn QSK Servo Motor with 14 Nm Rated Torque IP65 Protection and Multi-Turn Absolute Encoder

1 pcs
MOQ
Negotiable
Price
Rexroth IndraDyn QSK Servo Motor with 14 Nm Rated Torque IP65 Protection and Multi-Turn Absolute Encoder
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

14 Nm Rated Torque Servo Motor

,

IP65 Protection Servo Motor

,

Multi-Turn Absolute Encoder Servo Motor
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: QSK061B-0300-NN-S5-UG0-NNNN
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000pcs
Product Description
Rexroth QSK061B-0300-NN-S5-UG0-NNNN Servo Motor

High-performance permanent magnet synchronous servo motor designed for precision industrial applications requiring reliable operation and excellent dynamic response.

General Specifications
SeriesIndraDyn QSK (High-Performance Servo Motor)
Motor TypePermanent Magnet Synchronous Servo Motor (PMSM)
Protection RatingIP65 (Whole Unit)
Cooling MethodNatural Cooling (Fanless)
WeightApprox. 6.5 kg
Electrical Performance (0300 Stator Specification)
Rated Torque14 Nm
Maximum Torque42 Nm (3x Overload)
Rated Speed3000 rpm
Maximum Speed6000 rpm
Rated Power4.4 kW
Rated Voltage400 V AC (Three-Phase)
Rated Current8.5 A
Rotor Inertia0.85 kg·cm²
Insulation ClassClass F
Feedback System and Interface (S5-UG0)
Feedback SystemS5 = Multi-Turn Absolute Encoder (EnDat 2.2)
Encoder Resolution23 bits (Single Turn) + 12 bits (Multi-Turn)
InterfaceUG0 = Standard Plug (Power + Feedback Integration)
BrakeNN = No electromagnetic brake
Mechanical and Installation Specifications
Flange Size115 mm (IEC 115B)
Shaft Diameter22 mm (with keyway)
Mounting MethodFlange Mounting (B5)
Shaft ExtensionStandard Open Shaft
Operating Temperature-20°C to +40°C
Storage Temperature-40°C to +85°C
Humidity5%–95% (non-condensing)
Model Code Breakdown
QSK061B-0300-NN-S5-UG0-NNNN
QSKSeries (IndraDyn QSK)
061Frame Size (61 Series, Flange 115mm)
BMotor Length (Type B)
0300Stator Specification (3000rpm Rated Speed)
NNNo brake, no special options
S5Multi-turn absolute encoder (EnDat 2.2)
UG0Integrated power + Feedback Plug
NNNNNo additional configuration
Typical Applications
  • Machine tool spindles and feeds
  • Automated production lines
  • Packaging machinery
  • Injection molding machines
  • Textile machinery
  • High dynamic positioning systems
  • Synchronous control applications
  • Servo drive systems
Selection Guidance

Common Feedback Versions: S1 (incremental), S2 (single-turn absolute value), S5 (multi-turn absolute value)

Brake Options: B (with brake), NN (without brake)
